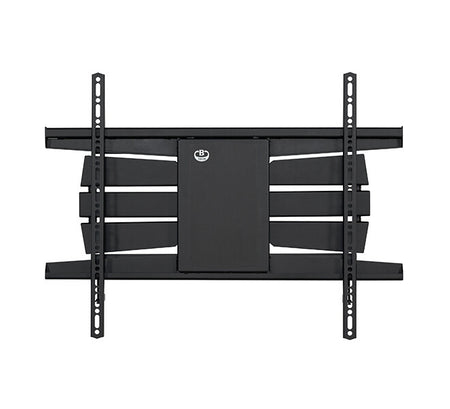

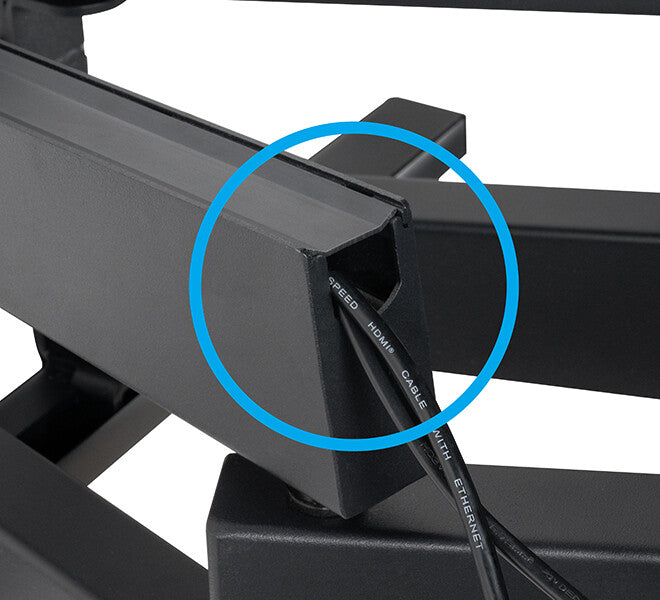

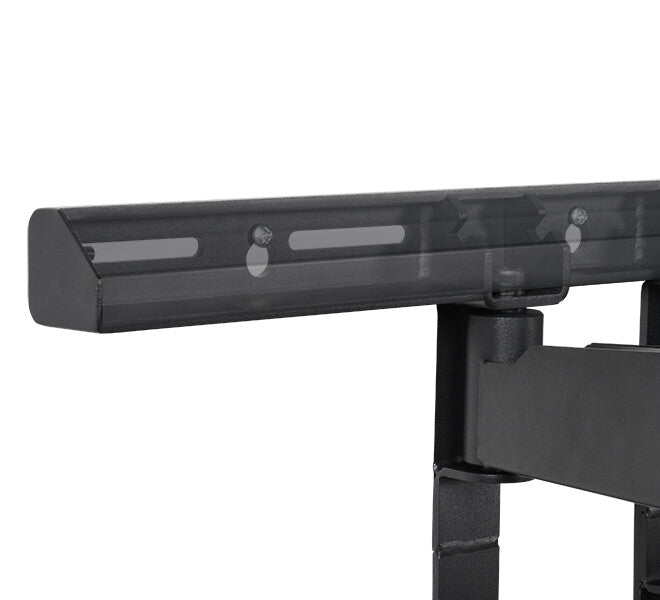

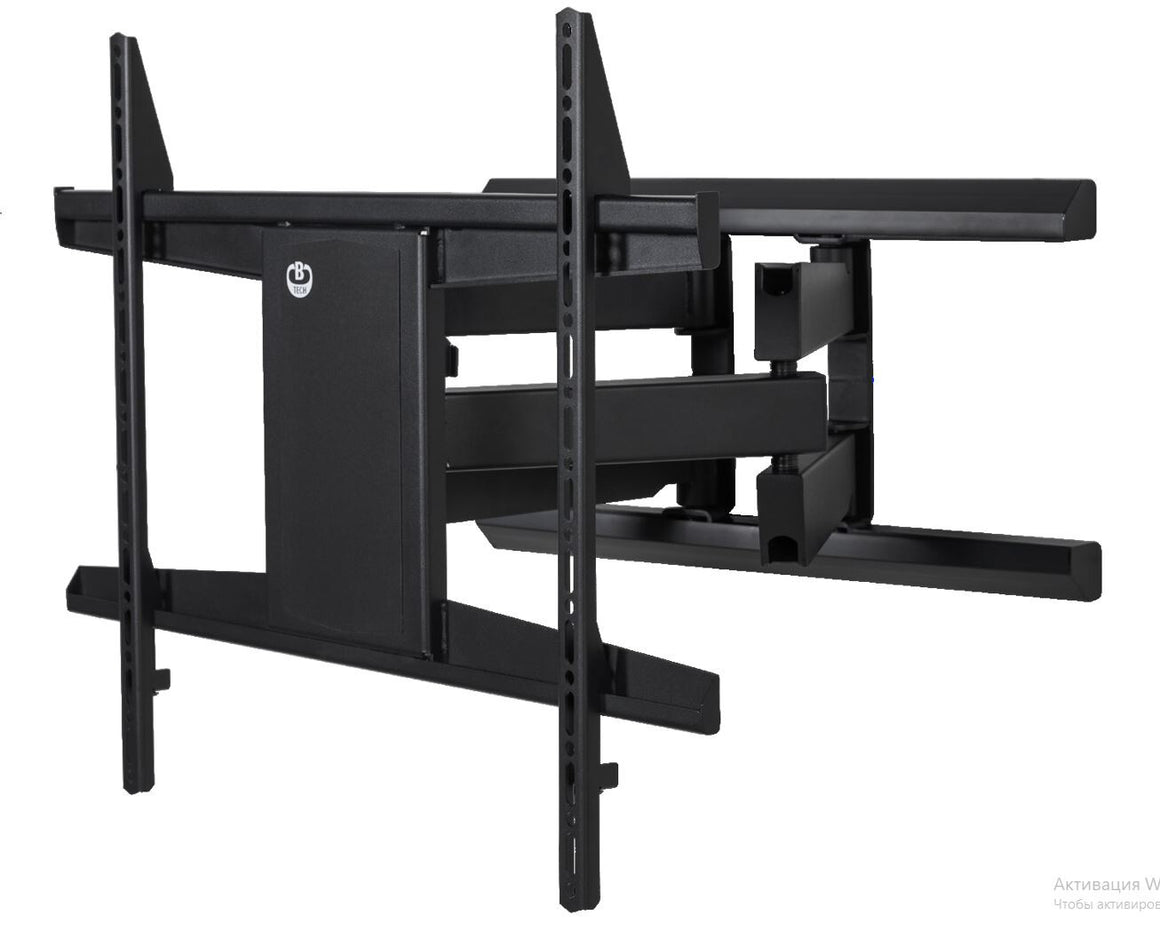

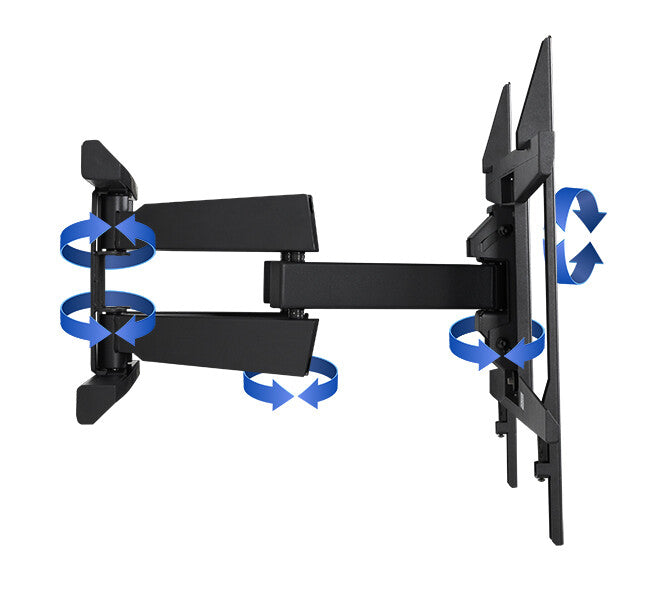

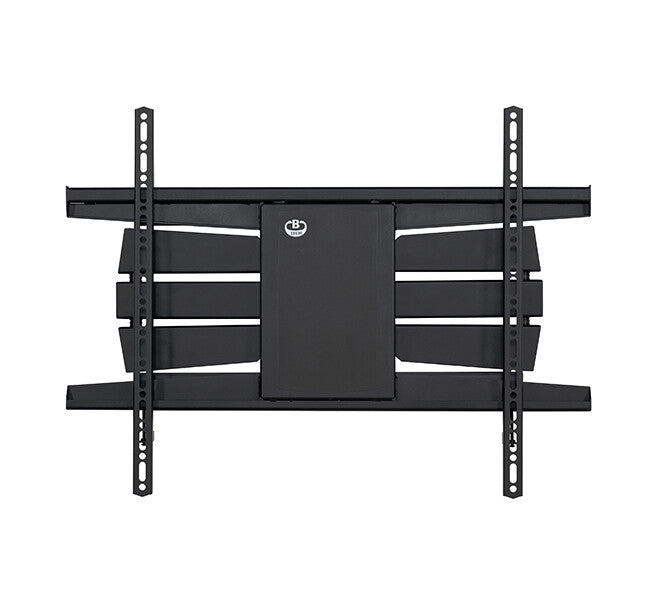

Designed to mount extra-large screens, this heavy-duty twin cantilever arm wall mount features an easy to tilt interface and three swivel points for quick, smooth repositioning of the screen - whether folded flat to the wall or at maximum extension. Featuring cover plates and integrated cable management for a tidy mounting solution, the BT8228 is ideal for both commercial and home installations.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum VESA mount |
800 x 600 mm |
| Minimum VESA mount |
300 x 200 mm |
| Suitable for computer monitor |
Yes |
| Mounting type |
Wall |
| Maximum screen size |
3.05 m (120") |
| Minimum screen size |
165.1 cm (65") |
| Maximum weight capacity |
125 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
9 cm |
| Distance to the wall (max) |
62.8 cm |
| Cable management |
Yes |
| Number of pivot points |
3 |
| Swivel angle |
180° |
| Swivelling |
Yes |
| Tilt angle range |
-3 - 15° |
| Tilt adjustment |
Yes |
| Adjustable depth |
Yes |
| Design |
|---|
| Housing material |
Metal |
| Product colour |
Black |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Height |
631.8 mm |
| Depth (max) |
62.8 cm |
| Width |
851 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pair(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
