SKU: BT8309/B

B-Tech Pop-Out Flat Screen Wall Mount

B-Tech
£310.86
  • Perfect solution for mounting screens into a recessed wall
  • Can also be used to create videowall installations

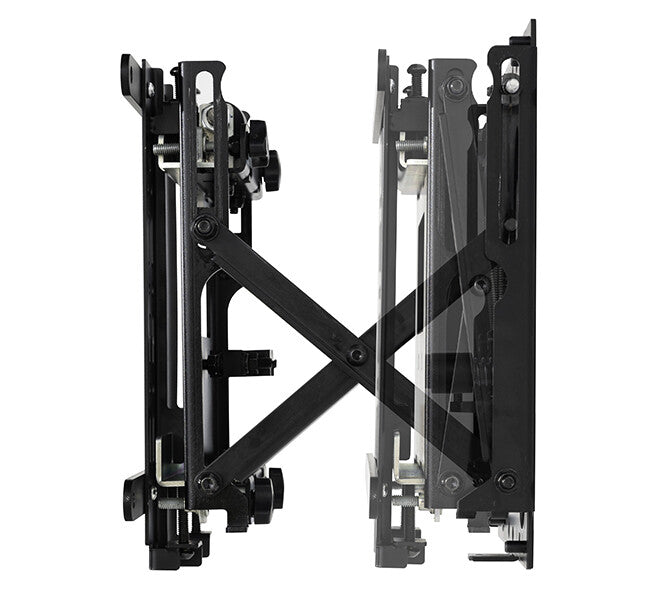

  • Push to open / push to close system provides quick and easy service access

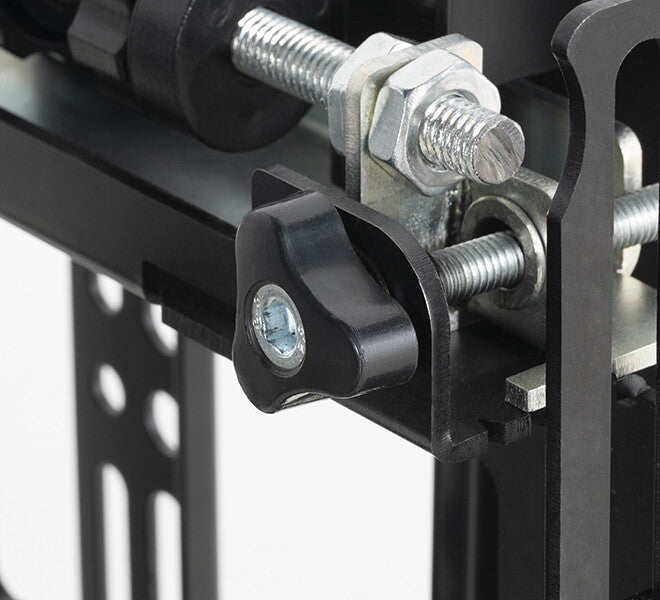

  • Micro-adjustment of +/-6mm at each corner for seamless display alignment
  • Suitable for landscape or portrait screen mounting

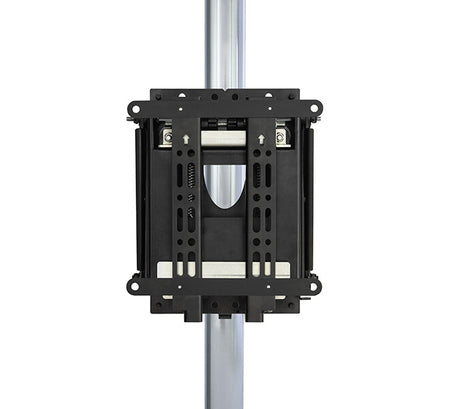

  • Suitable for both wall or pole mounting
  • Keyhole mounting for quick and easy installation
  • Levelling screws allow adjustment of screen height
  • Integrated locking mechanism prevents accidental pop-out of mount
  • Integrated cable management
  • 'Hook-on' installation with all mounting hardware included

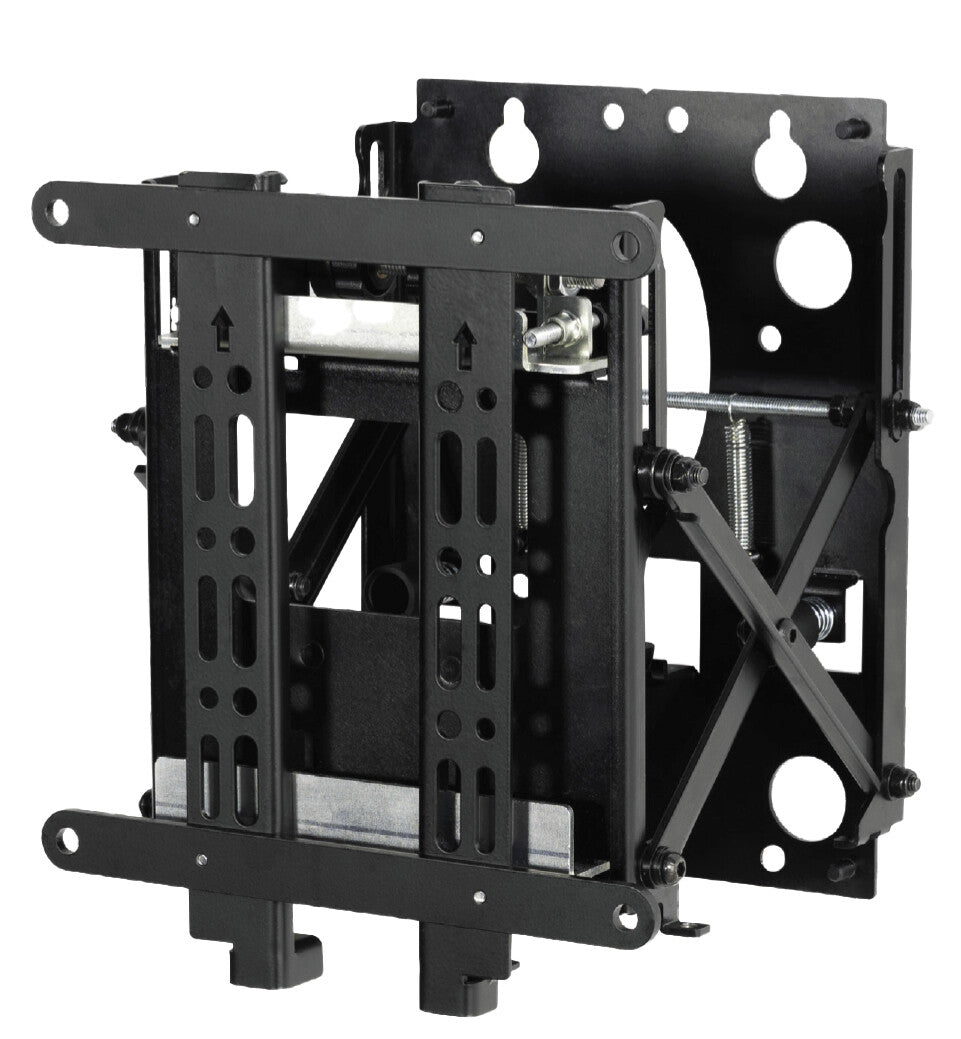

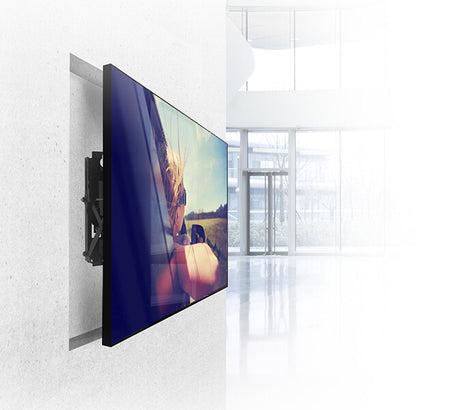

The BT8309 is designed to install small to medium screens into recessed walls. The pop-out mechanism allows for a flush to the wall installation while still allowing access to the rear of the screen for easy installation and service access. Tool-less micro-adjustment is included on each corner to allow screens to perfectly align to the recess and additional screens in a videowall installation. BT8309 also allows screens to be mounted in landscape or portrait orientation and is compatible with B-Tech's professional pole and collar system for pole-mounted installs.

Mounting
Number of displays supported 1
Panel mounting interface 75 x 75,200 x 200 mm
Maximum VESA mount 200 x 200 mm
Minimum VESA mount 75 x 75 mm
Suitable for computer monitor Yes
Mounting type Wall
Maximum screen size 106.7 cm (42")
Maximum weight capacity 25 kg
Ergonomics
Distance to the wall (min) 6.9 cm
Distance to the wall (max) 18.6 cm
Cable management Yes
Adjustable depth Yes
Design
Product colour Black
Packaging content
Mounting kit Yes
Weight & dimensions
Height 287 mm
Width 220 mm
