SKU: BT8221/B

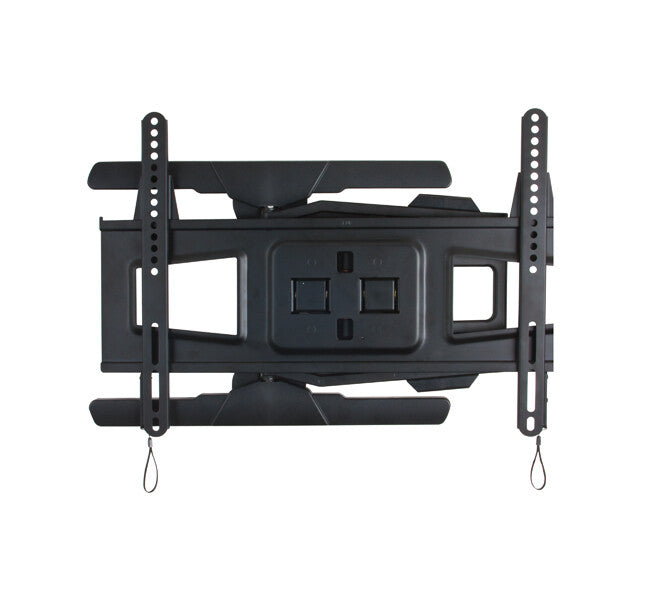

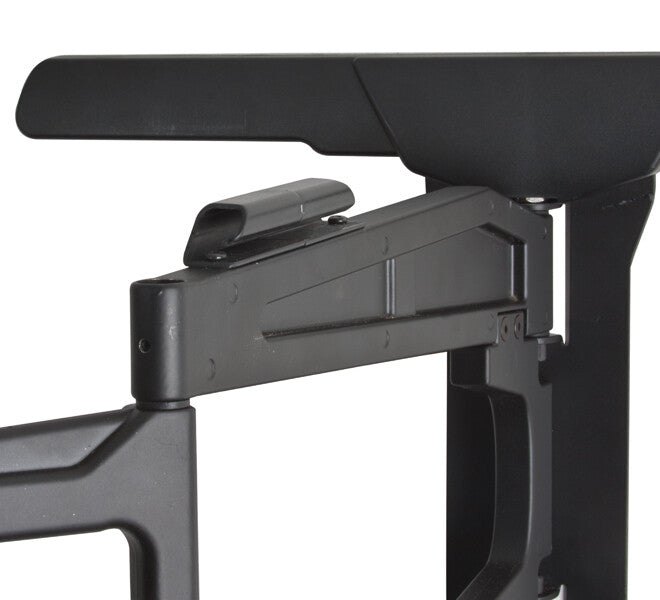

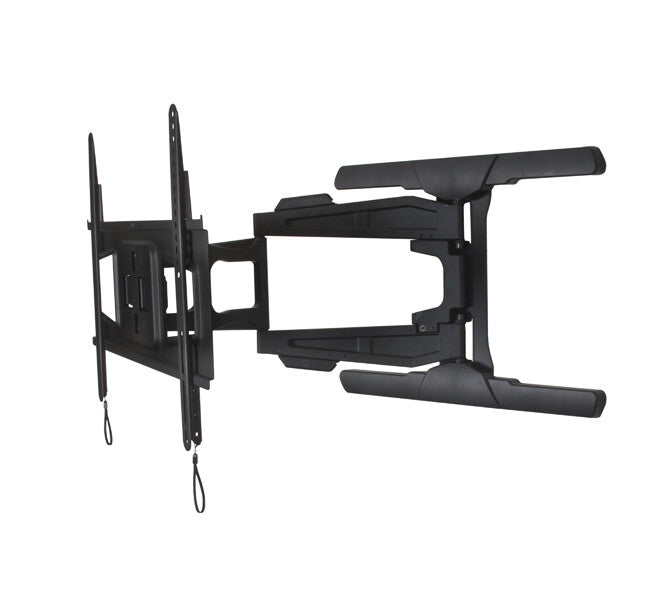

B-Tech Ultra-Slim Double Arm Flat Screen Wall Mount with Tilt and Swivel

B-Tech
£228.47
  • Full motion mount - ideal for corner mounting
  • Universal screen mounting interface fits screens with VESAand non-VESA mounting patterns up to 600 x 400mm
  • Easy tilt adjustment +/-15° (no tools required)
  • Features three swivel points: 180° at wall, 360° at central pivot and 180° at interface
  • Ultra-slim design mounts screen only 37mm (1.5") from wall when folded flat
  • Arm extends up to 560mm (22")
  • Attractive coverplates included to hide fixings
  • Integrated cable management and spirit level bubble
  • Suitable for concrete / brick or stud walls up 16"
  • Simple ‘hook-on’ installation with all mounting hardware included
  • Now available in both Black and White

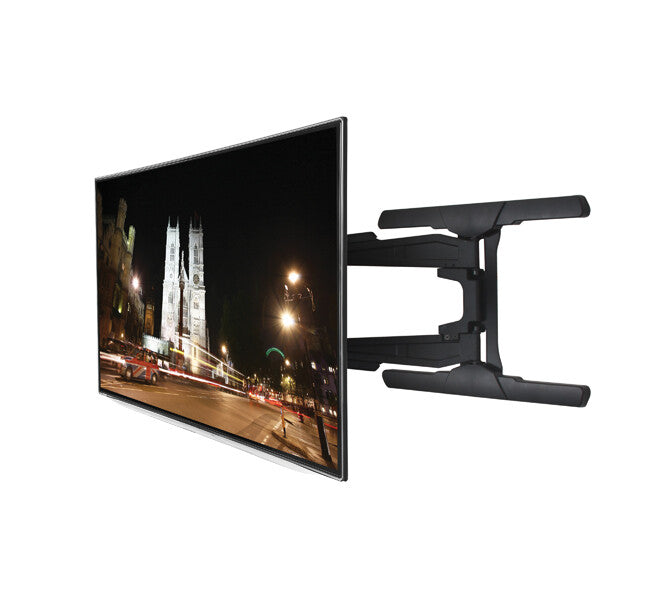

Designed to mount large screens up to 65", this ultra-slim double arm wall mount features a tilting interface and three swivel points, allowing quick and easy repositioning of screens as required - whether folded flat to the wall at a depth of just 37mm or at maximum extension. Coverplates to hide fixings and integrated cable management help make this a neat and tidy mounting solution which is ideal for commercial applications as well as home installations.

Mounting
Number of displays supported 1
Maximum VESA mount 600 x 400 mm
Mounting type Wall
Maximum screen size 165.1 cm (65")
Maximum weight capacity 36 kg
Ergonomics
Distance to the wall (min) 3.7 cm
Distance to the wall (max) 56 cm
Cable management Yes
Swivel angle 180°
Tilt angle range -15 - 15°
Design
Product colour Black
Weight & dimensions
Arm length 56 cm
Height 425 mm
Depth (max) 108.4 cm
Width 650 mm
Logistics data
Harmonized System (HS) code 85299097
