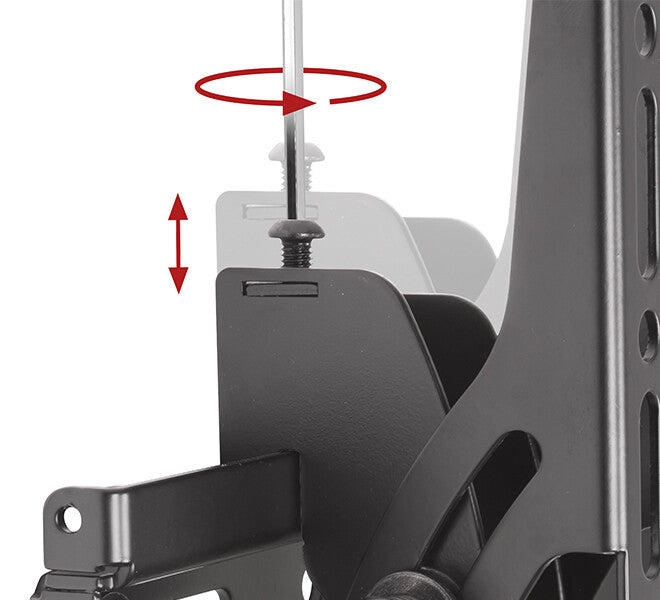

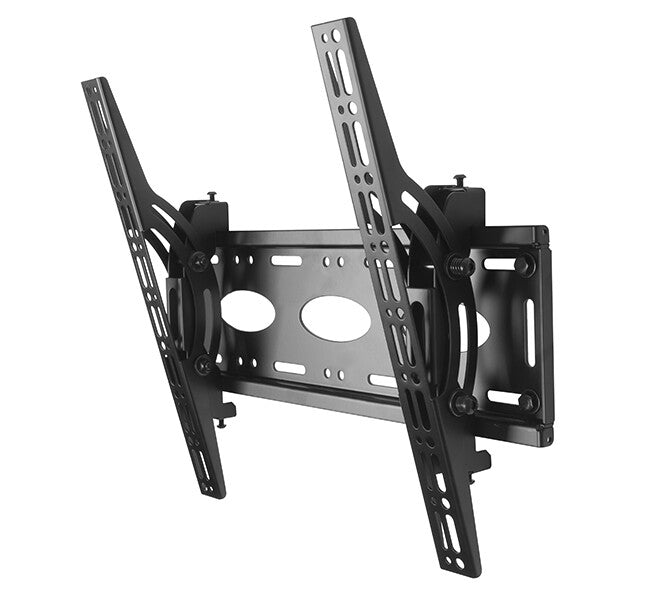

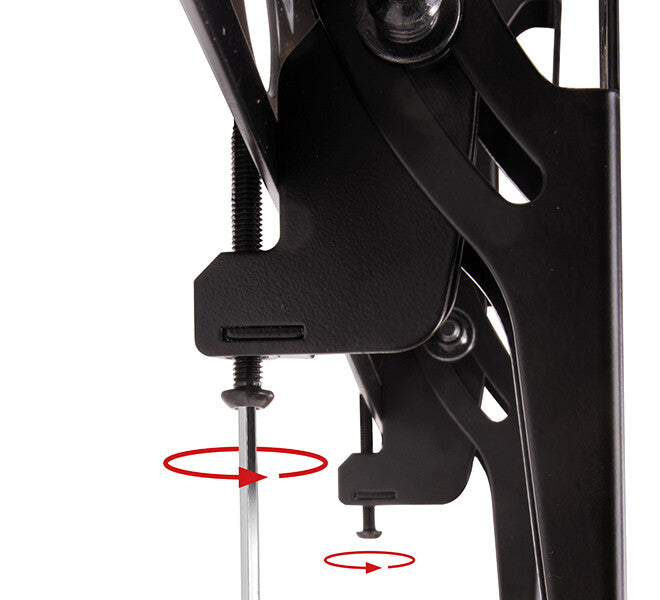

Designed to mount medium to large sized screens, the BT8431 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8431 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.
| Mounting |
|---|
| Number of displays supported |
1 |
| Maximum VESA mount |
400 x 400 mm |
| Mounting type |
Wall |
| Maximum screen size |
139.7 cm (55") |
| Minimum screen size |
99.1 cm (39") |
| Maximum weight capacity |
50 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
8.1 cm |
| Distance to the wall (max) |
14.8 cm |
| Tilt angle range |
-15 - 15° |
| Design |
|---|
| Product colour |
Black |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Weight & dimensions |
|---|
| Height |
420 mm |
| Depth (max) |
14.8 cm |
| Depth (min) |
2.1 cm |
| Width |
500 mm |
| Logistics data |
|---|
| Master (outer) case volume |
28000 cm³ |
| Harmonized System (HS) code |
83024200 |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case gross weight |
8.9 kg |
