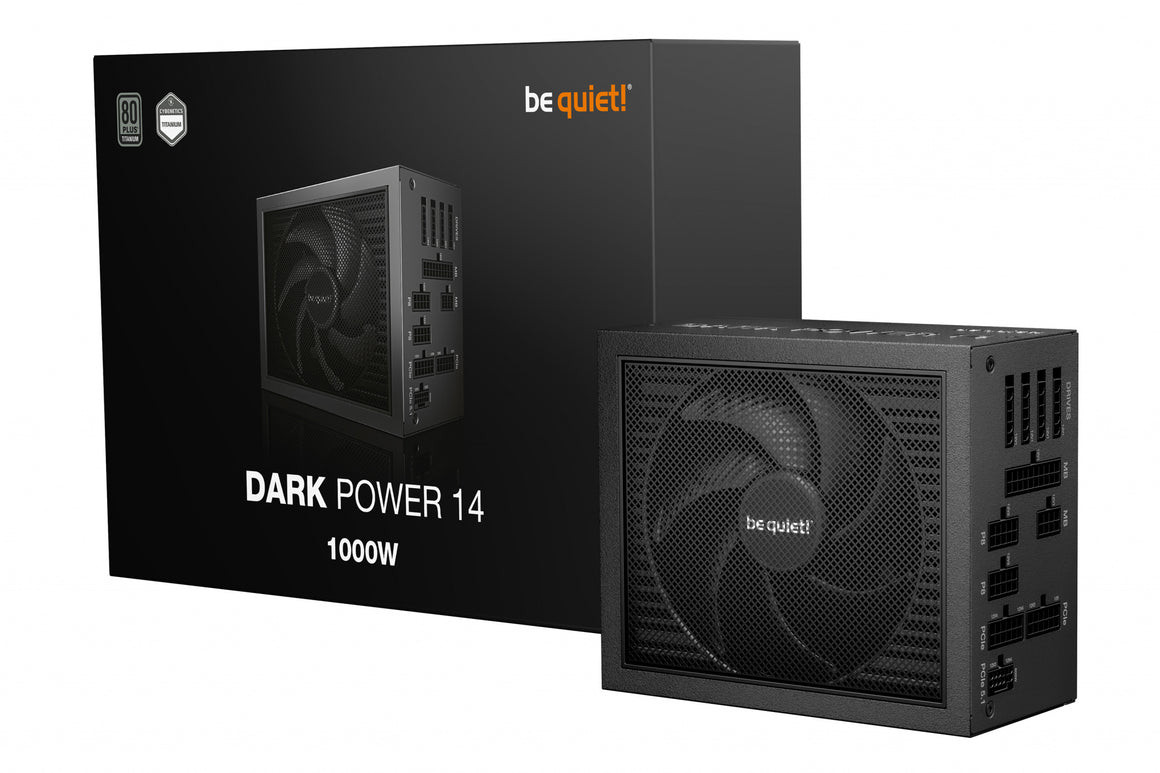

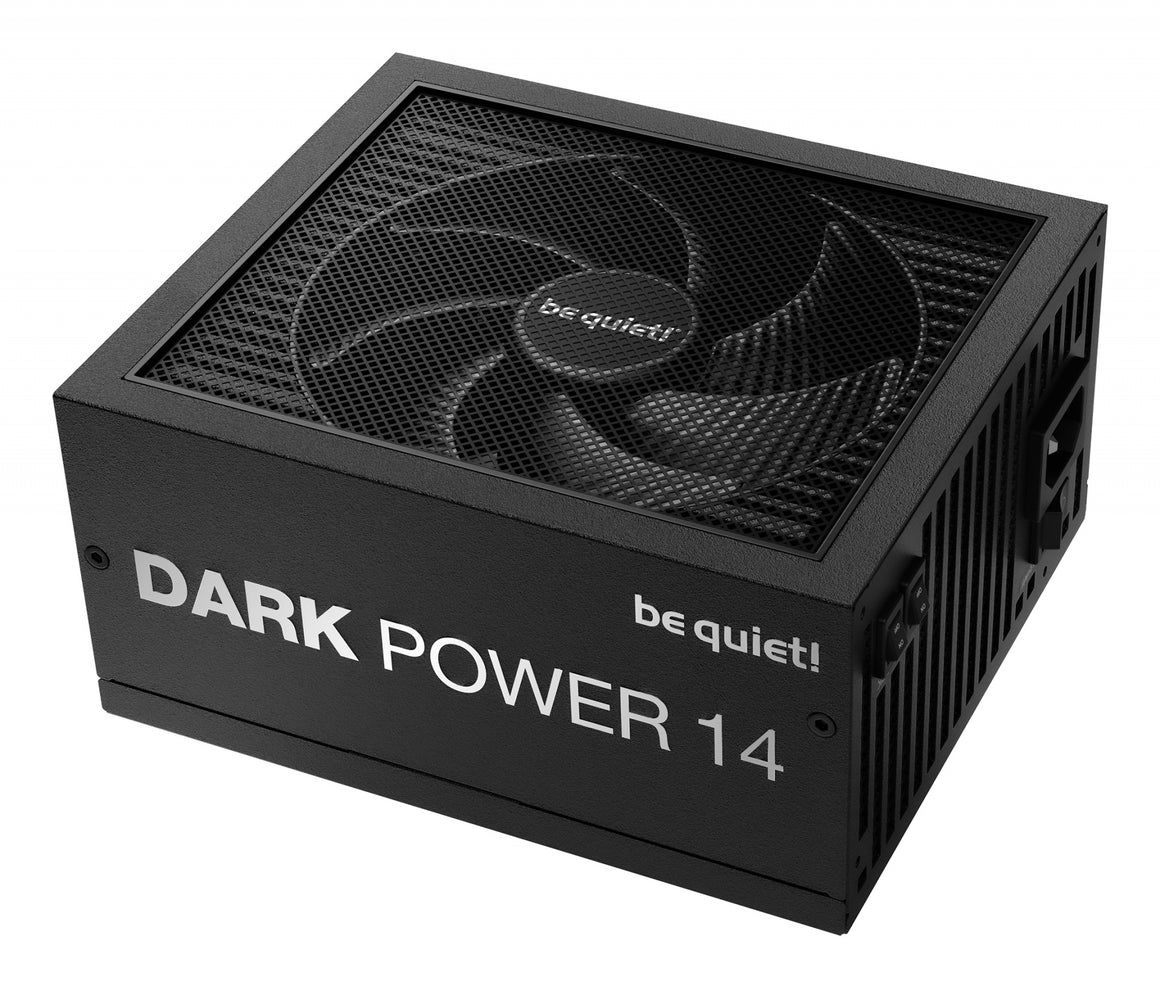

be quiet! Dark Power 14 1000 W - 80 Plus Titanium power supply unit 20+4 pin ATX ATX Black
Regular price
£217.50
- 1000 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Titanium
- Active 13.5 cm 0 - 2100 RPM
- Black
| Power | |
|---|---|
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Efficiency | 93.8% |
| Hold time | 20.1 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 24 A |
| Max output current (+12V3) | 40 A |
| Max output current (+12V4) | 40 A |
| Max output current (+12V2) | 33 A |
| Max output current (+12V1) | 33 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5V) | 120 W |
| Combined power (+12V) | 996 W |
| Combined power (+3.3V) | 120 W |
| Number of +12V rail(s) | 4 |
| Power factor | 0.98 |
| Maximum input current (@220V) | 5 A |
| Maximum input current (@110V) | 10 A |
| AC input frequency | 50/60 Hz |

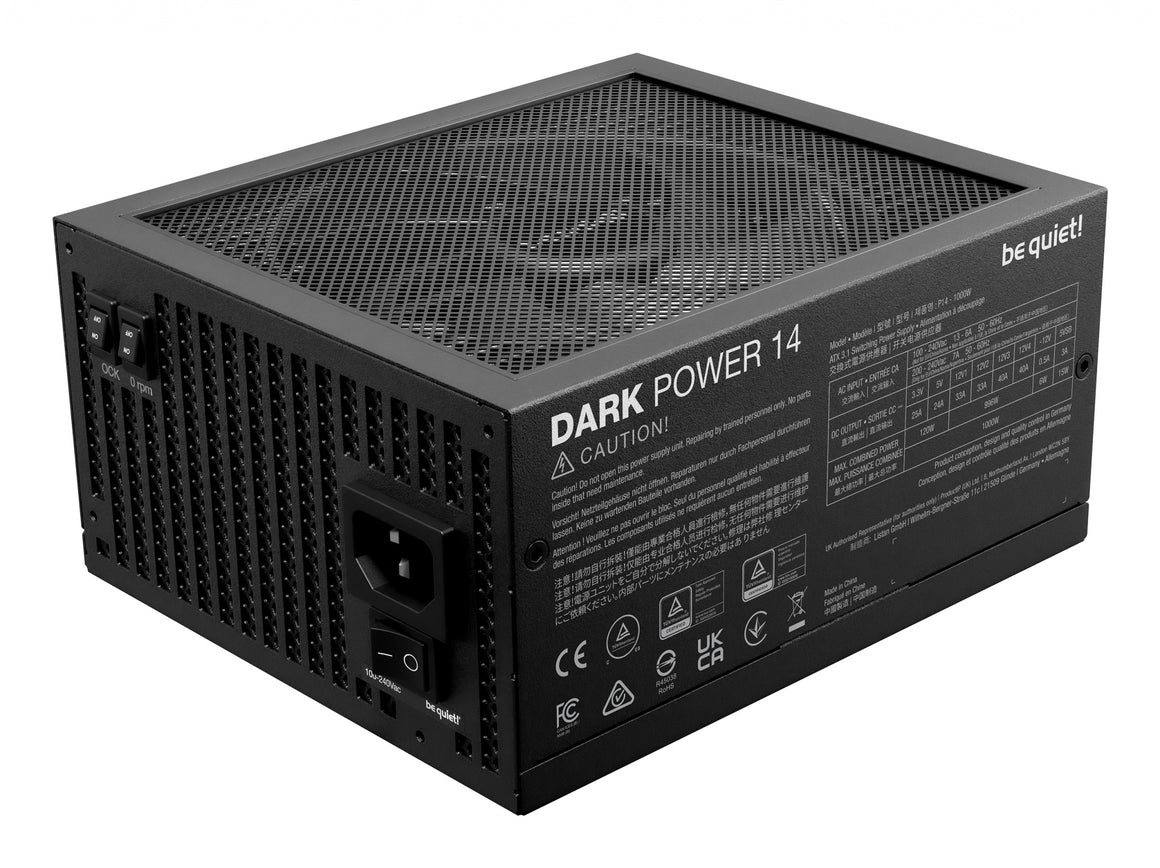

| AC input voltage | 100 - 240 V |
| Peak power | 1100 W |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|

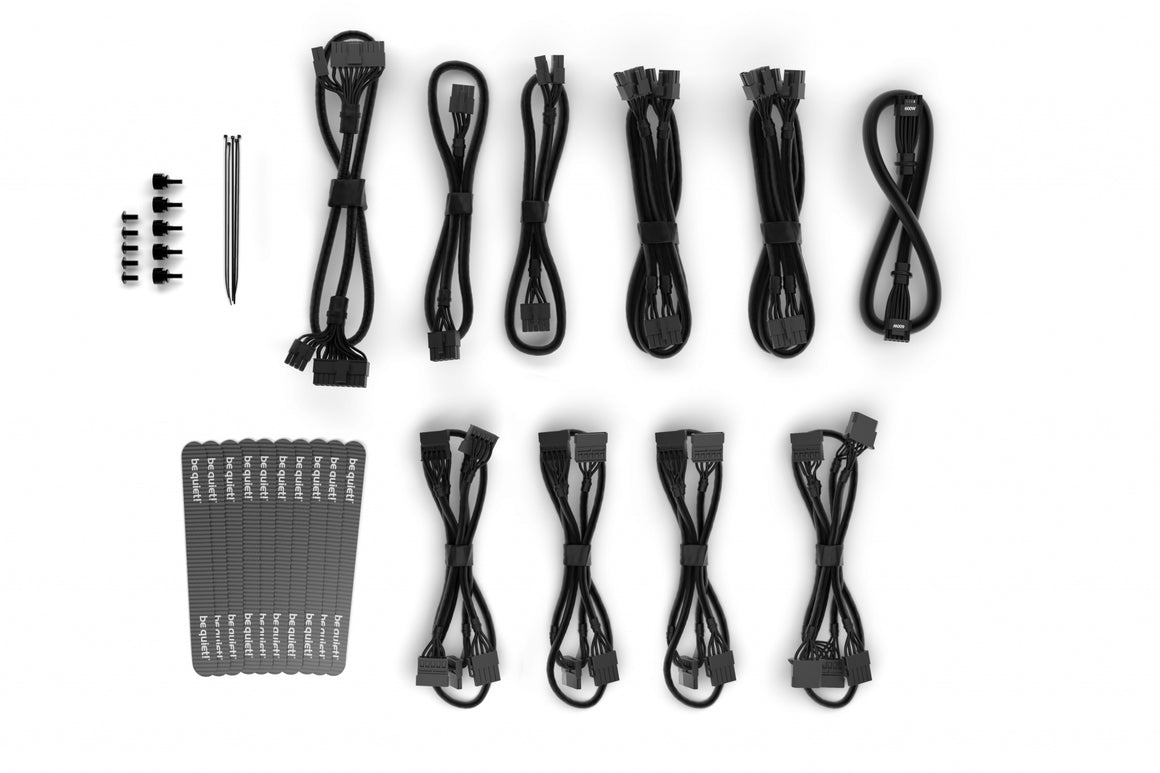

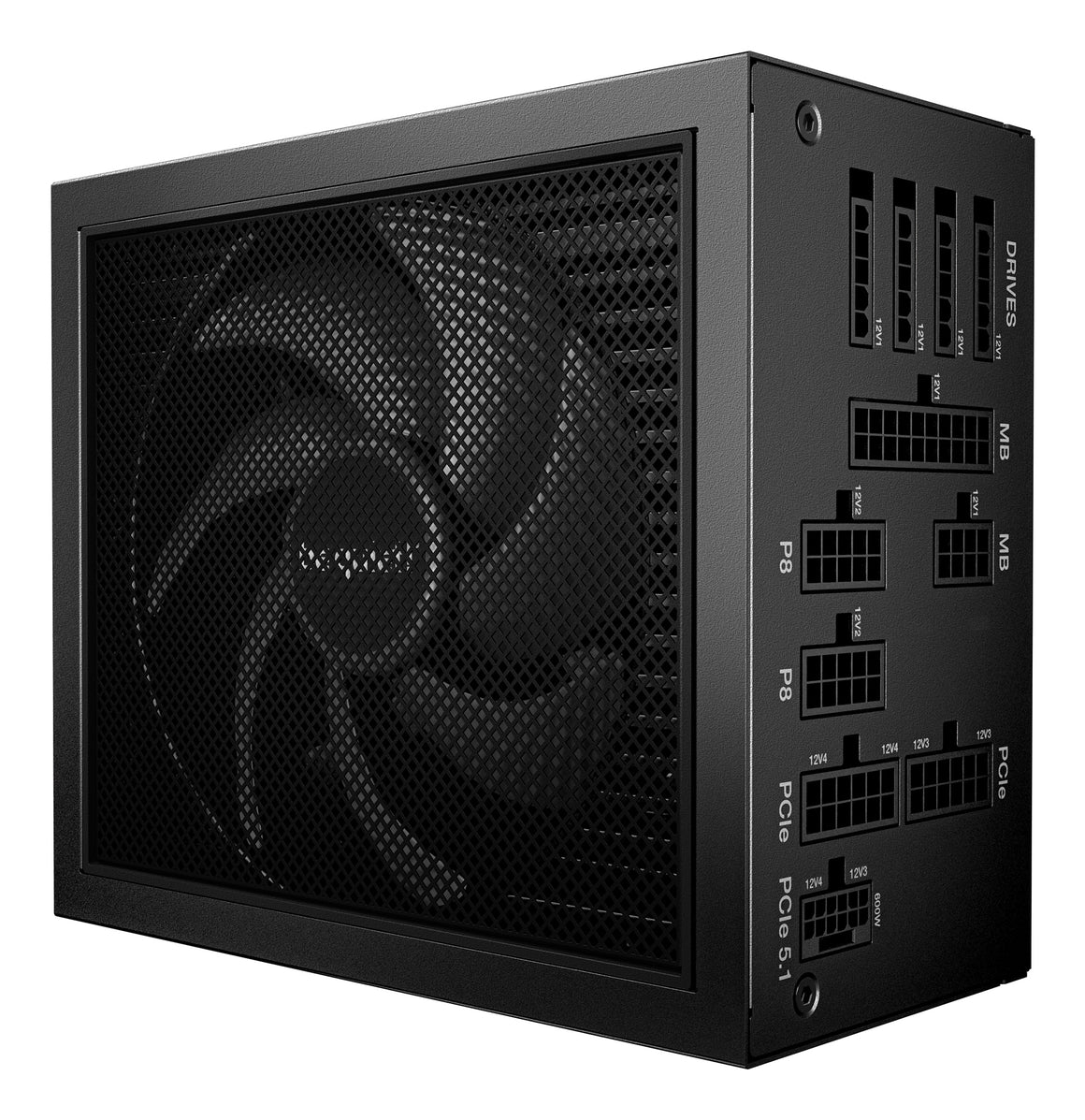

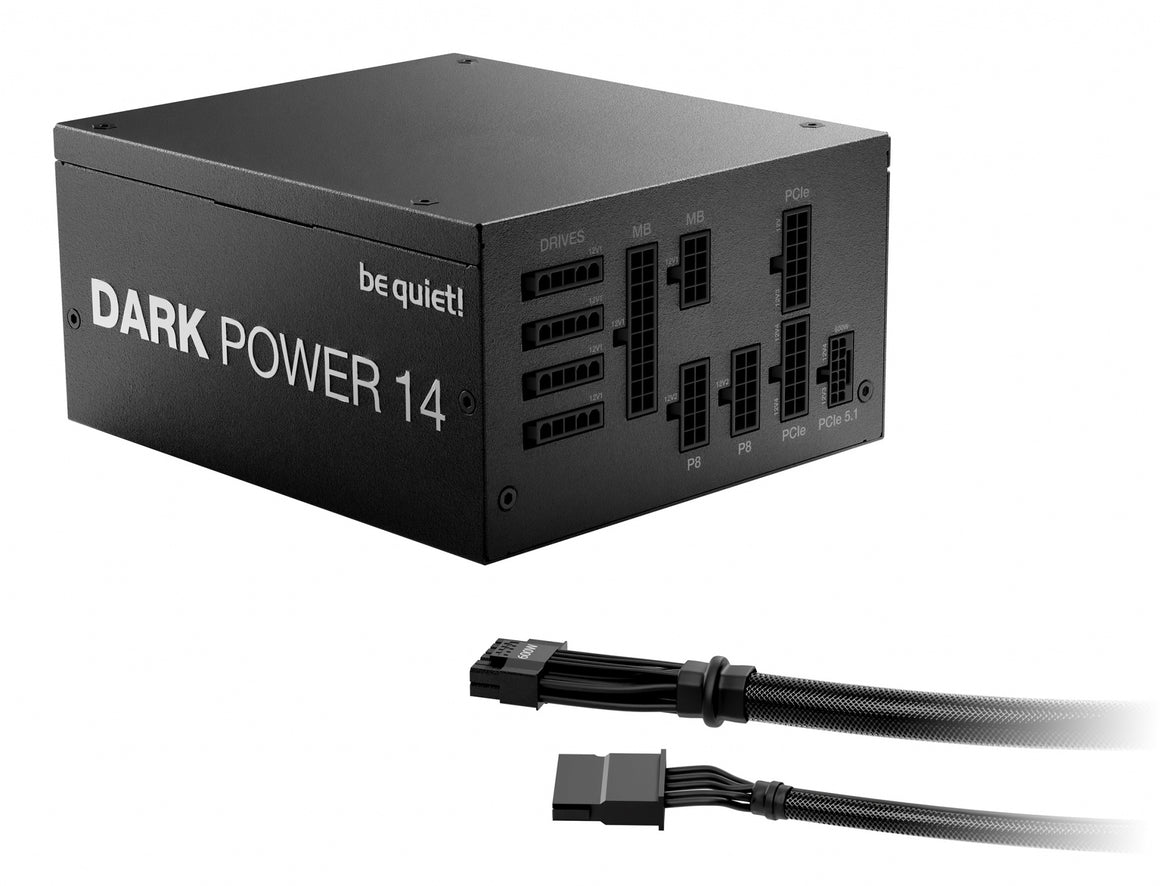

| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |

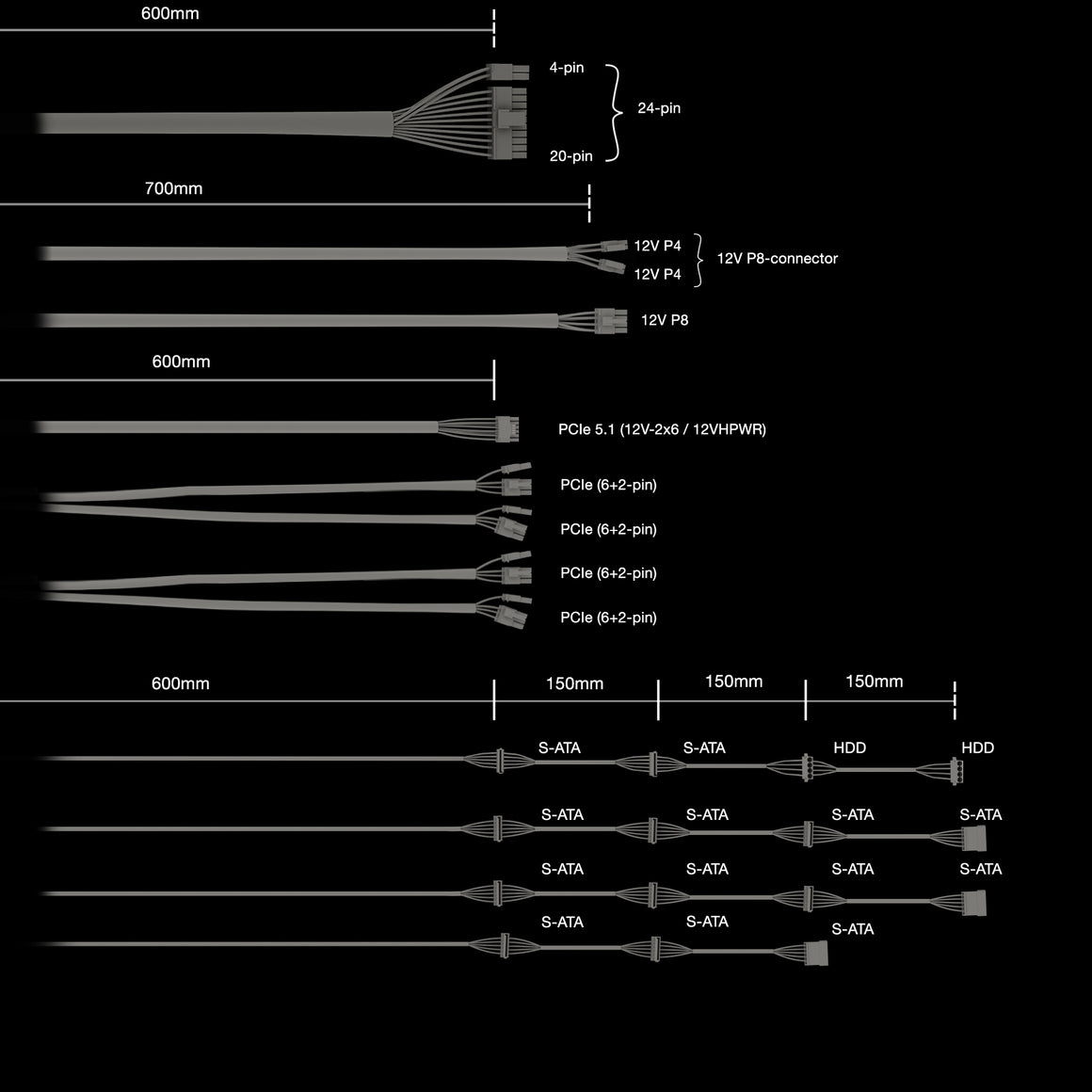

| CPU power cable length | 70 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 900,1050 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power cables | 13 |
| SATA power cable length | 600,750,900,1050 mm |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |

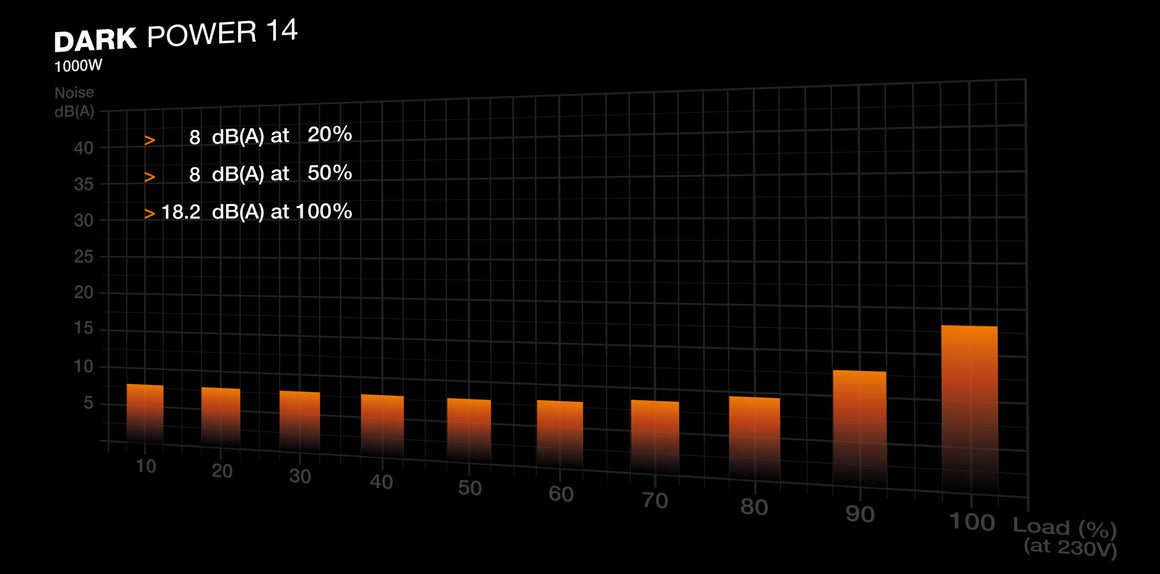

| Noise level | 18.2 dB |
| EPS version | 2.92 |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|

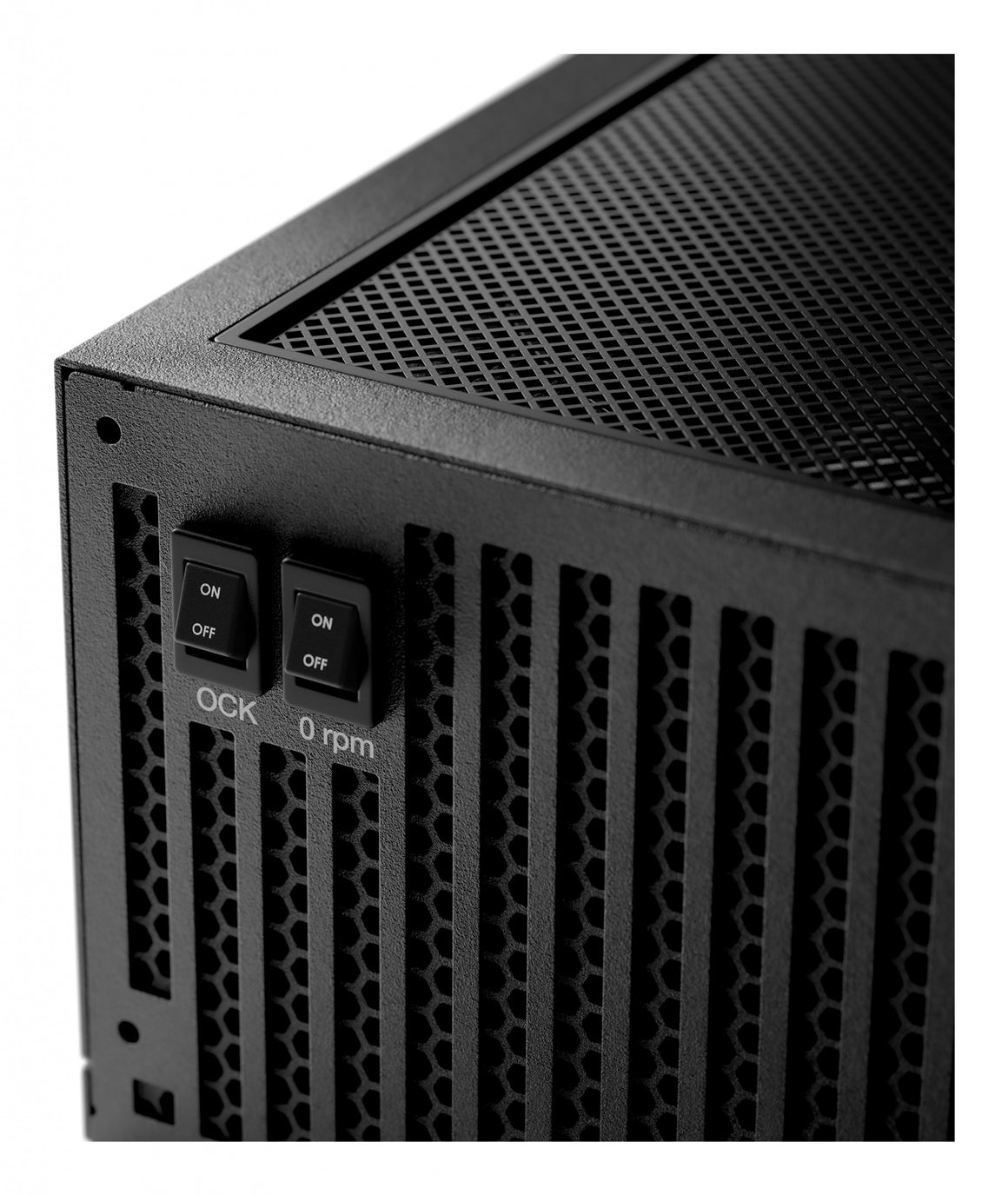

| On/off fan switch | Yes |
| On/off switch | Yes |
| Fan speed | 0 - 2100 RPM |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Weight & dimensions | |
|---|---|
| Weight | 2.2 kg |
| Height | 86 mm |
| Depth | 175 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 3.5 kg |
| Package height | 355 mm |
| Package depth | 126 mm |
| Package width | 230 mm |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 52.8 cm |
| Shipping (inner) case width | 36.8 cm |
| Shipping (inner) case height | 26 cm |
| Shipping (inner) case net weight | 19.3 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Other features | |
|---|---|
| Cable ties included | Yes |
| Screws included | Yes |
