SKU: BN332

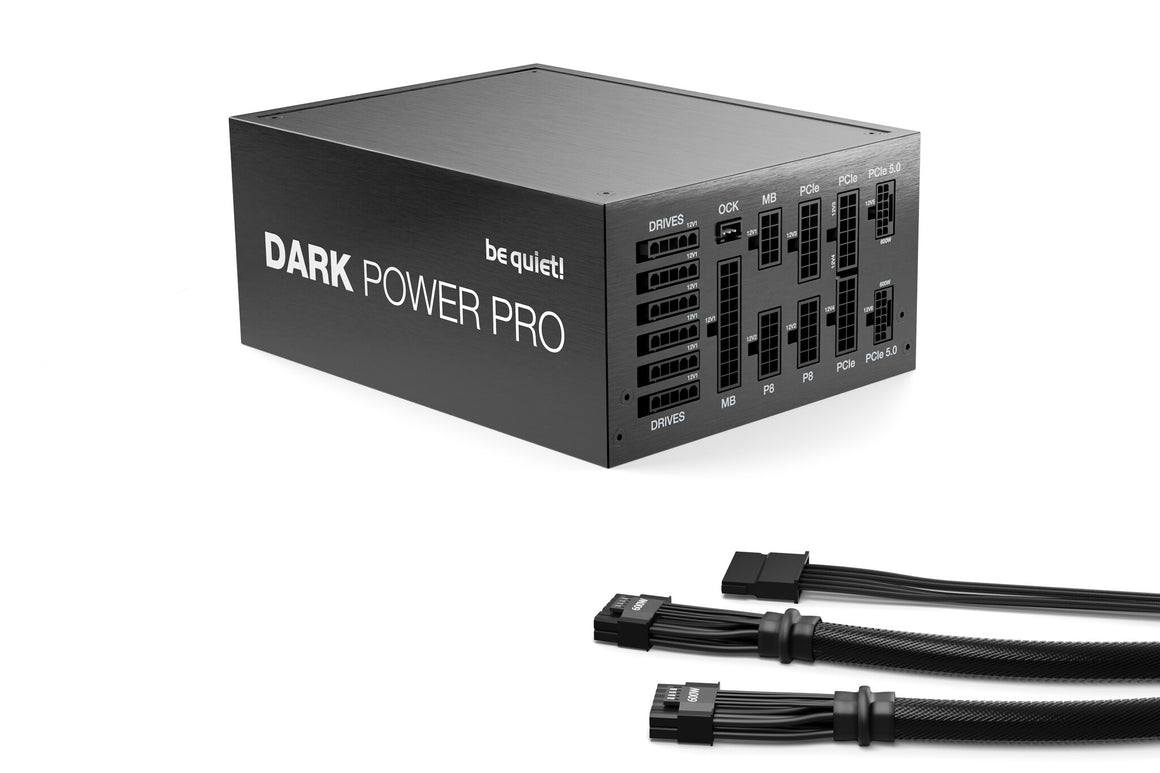

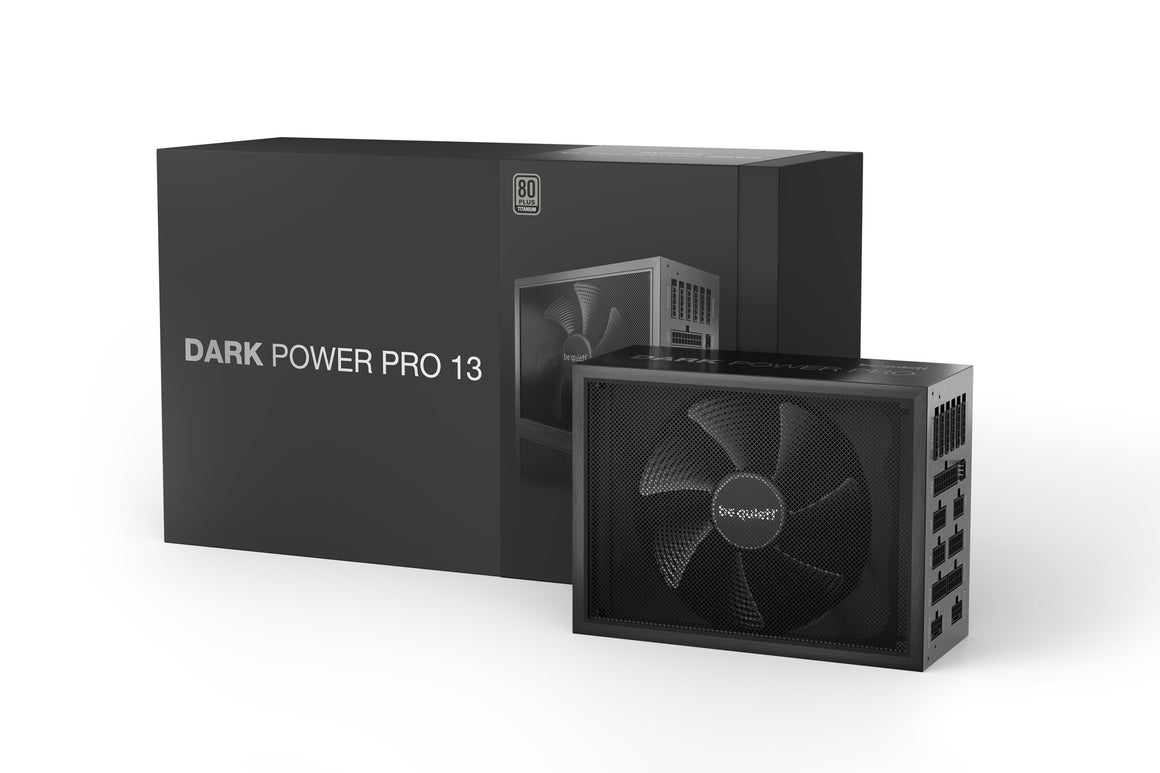

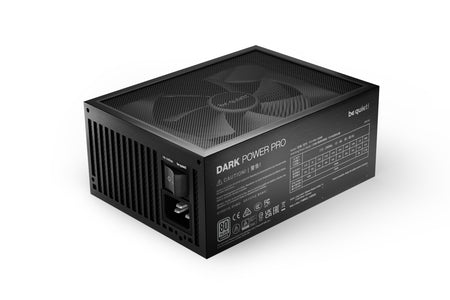

be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black

be quiet!
£366.16
  • 80 PLUS Titanium efficiency (up to 94.5%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions

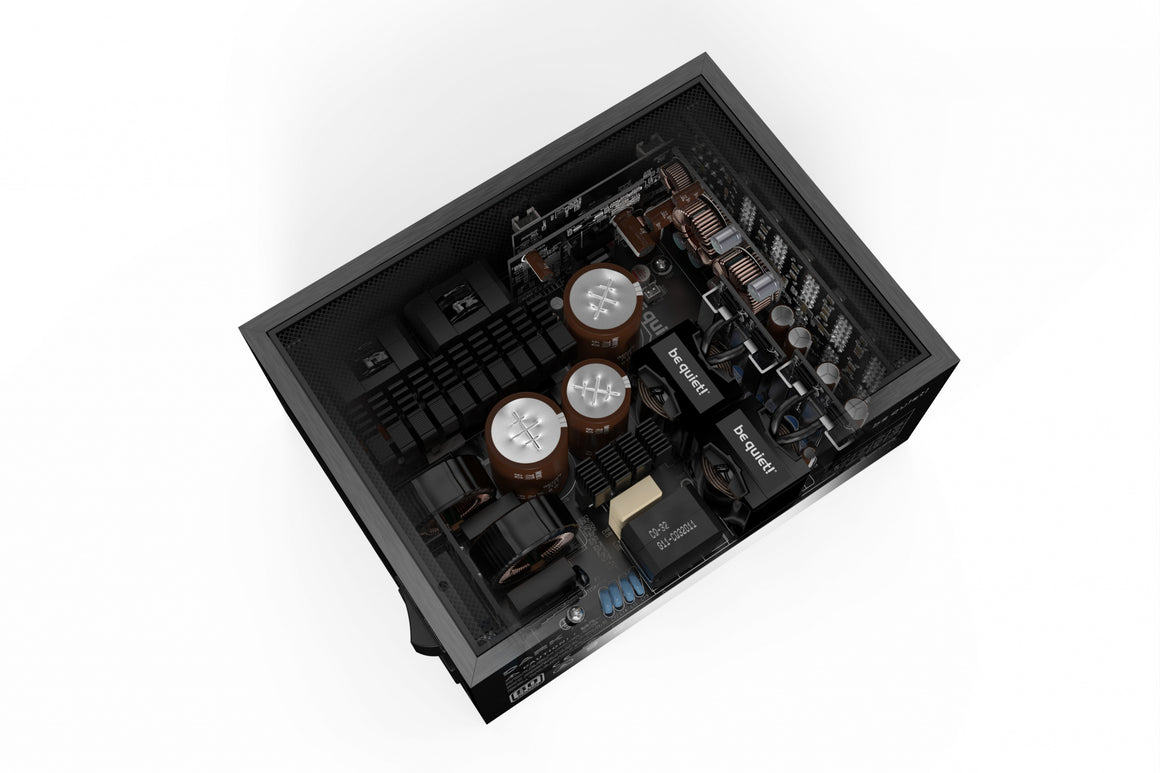

  • Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

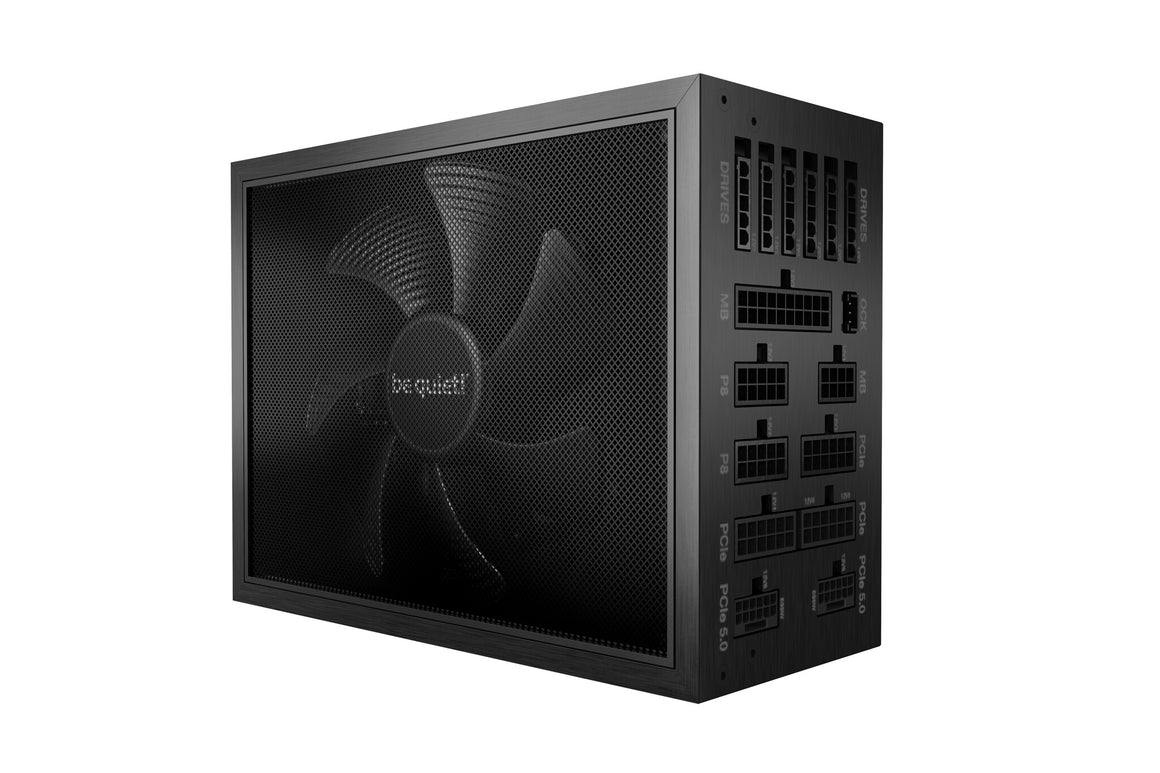

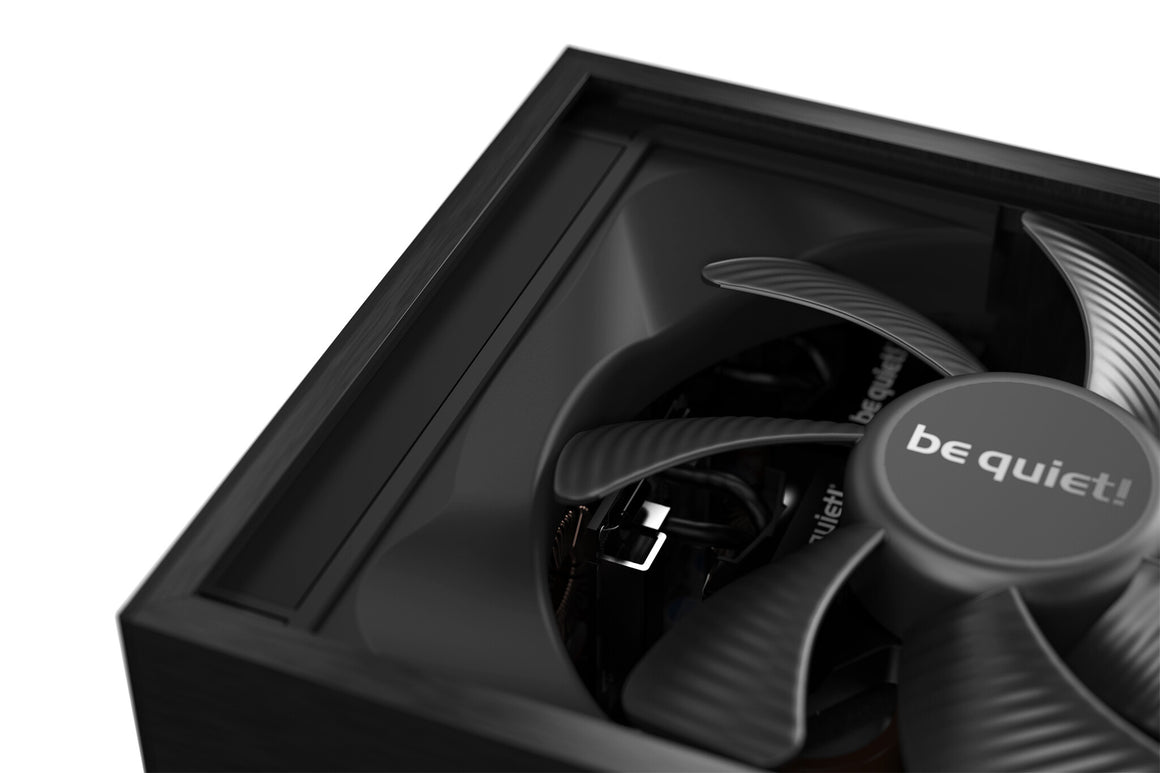

  • Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
  • Full mesh PSU front with funnel-shaped air inlet
  • Overclocking key switches between six 12V rails and one massive 12V rail
  • Japanese 105°C capacitors ensure highest stability and reliability
  • 2 PCIe 5.1 12V-2x6 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
  • Aluminum case and modular individually sleeved cables for magnificent appearance

CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.

Power
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency 94.5%
Hold time 18 ms
Max output current (+5Vsb) 3.5 A
Max output current (-12V) 0.5 A
Max output current (+5V) 25 A
Max output current (+12V3) 45 A
Max output current (+12V4) 45 A
Max output current (+12V2) 40 A
Max output current (+12V1) 40 A
Max output current (+3.3V) 25 A
Combined power (+5Vsb) 17.5 W
Combined power (-12V) 6 W
Combined power (+5V) 150 W
Combined power (+12V) 1600 W
Combined power (+3.3V) 150 W
Power factor 0.99
Input current 15 - 9 A
AC input frequency 50 - 60 Hz
AC input voltage 115 - 240 V
Peak power 1700 W
Total power 1600 W

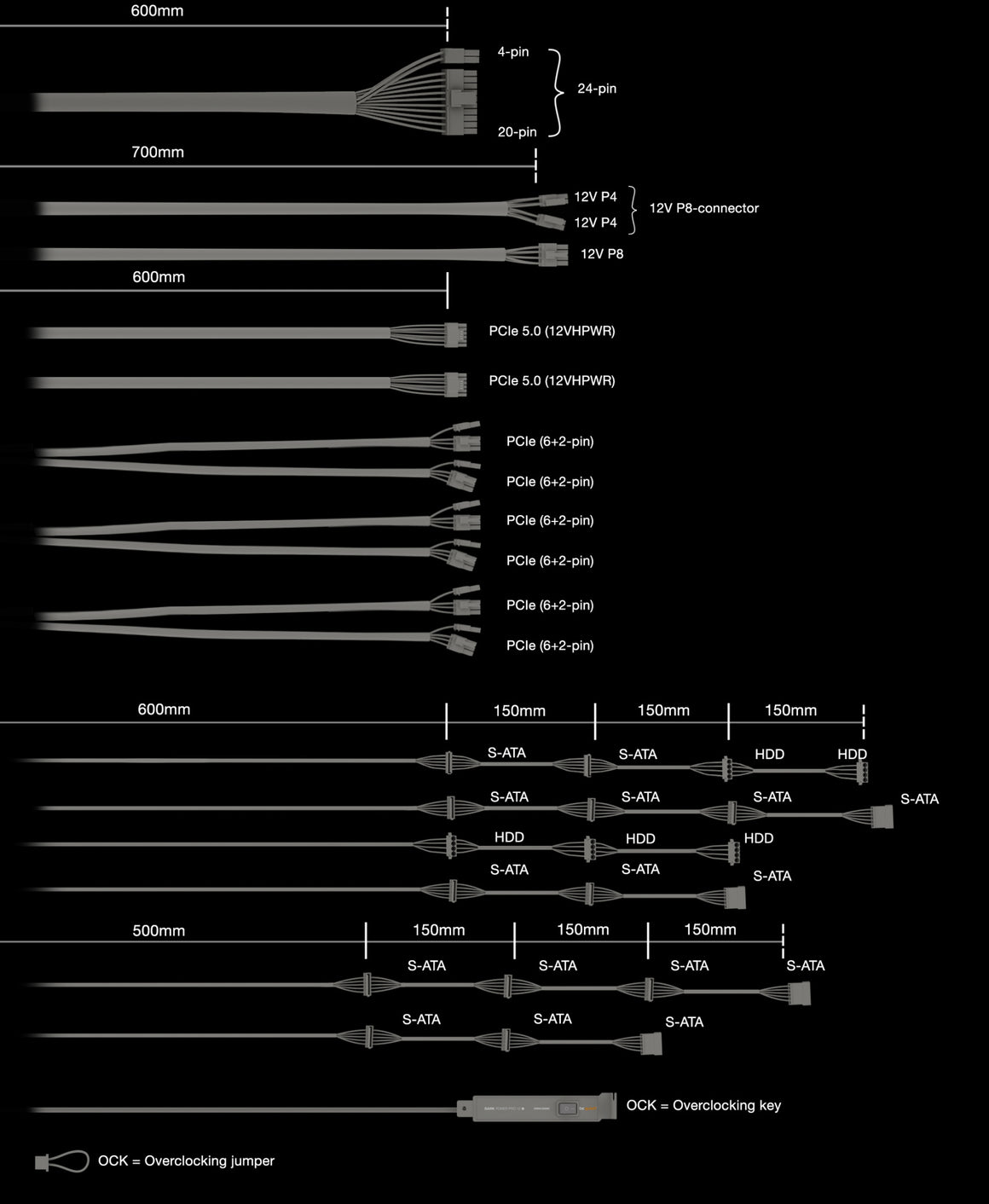

Ports & interfaces
Cabling type Fully-Modular
PCI Express connector Yes
ATX power connector (20+4 pin) Yes
CPU power cable length 70 cm
PCI Express power cable length 60 cm
PCI Express power connectors (6+2 pin) 6
EPS power connector (4+4 pin) Yes
EPS power connector (8-pin) Yes
Peripheral (Molex) power cable length 600,750,900,1050 mm
SATA power cable length 500,600,750,800,900,950,1050 mm
Number of PATA power connectors 5
Number of SATA power connectors 16
Motherboard power cable length 60 cm
Motherboard power connector 20+4 pin ATX
Performance
Mean time between failures (MTBF) 100000 h
Bearing technology FDB

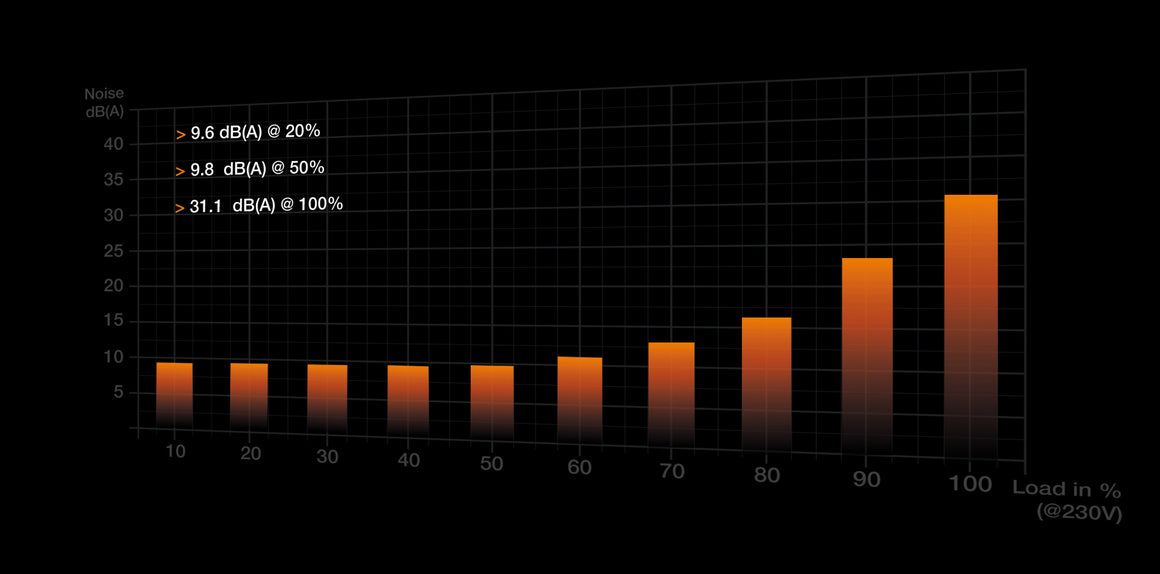

Noise level 31.1 dB
EPS version 2.92
ATX version 3.1
80 PLUS certification 80 PLUS Titanium
Power supply unit (PSU) form factor ATX
Purpose PC
Design
Number of fans 1 fan(s)
Fan diameter 13.5 cm
Cooling type Active
Product colour Black
Packaging content
Cable tie(s) included Yes

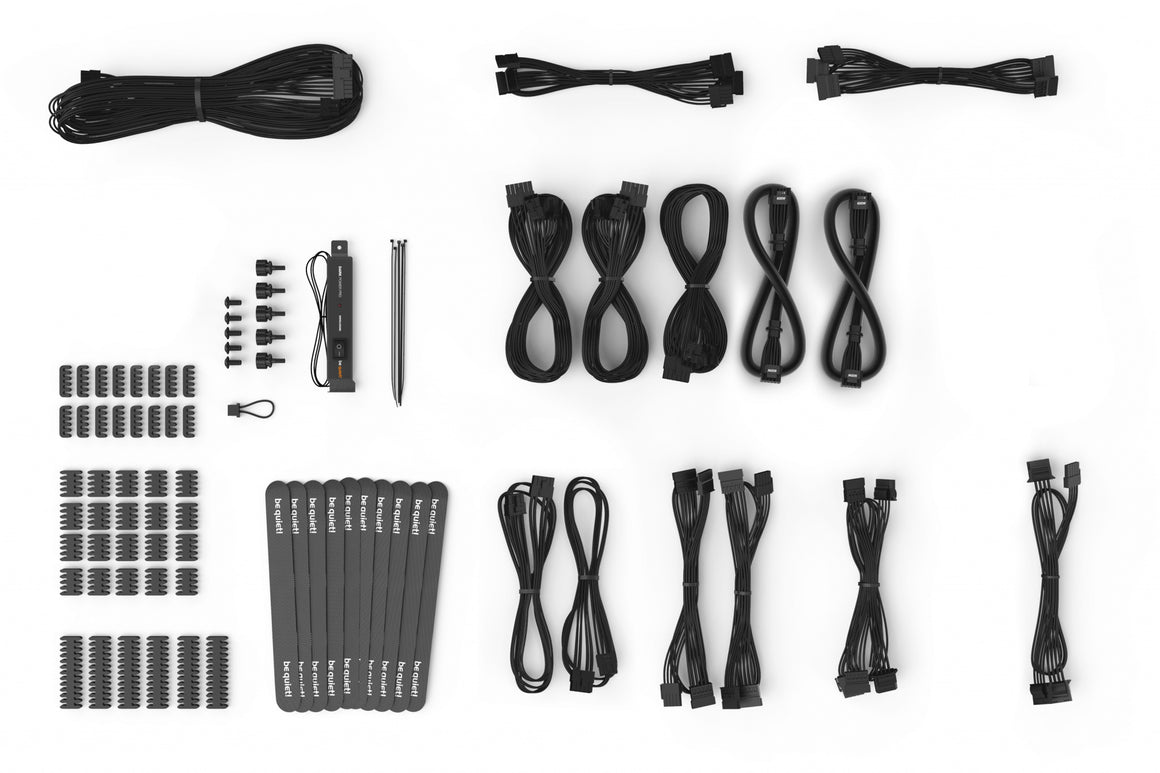

Cables included CPU, PCIe, Peripheral (Molex), SATA
Certificates
Compliance certificates CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE
Weight & dimensions
Weight 2.44 kg
Height 86 mm
Depth 200 mm
Width 150 mm
Packaging data
Package weight 6.9 kg
Package height 152 mm
Package depth 417 mm
Package width 253 mm
Technical details
Sustainability compliance Yes
Sustainability certificates ENERGY STAR, ErP, Triman
Logistics data
Shipping (inner) case length 44 cm
Shipping (inner) case width 32.5 cm
Shipping (inner) case height 28.3 cm
Shipping (inner) case net weight 14.6 kg
Products per shipping (inner) case 2 pc(s)
Warranty period 10 year(s)
