Exceptional quiet, superior features

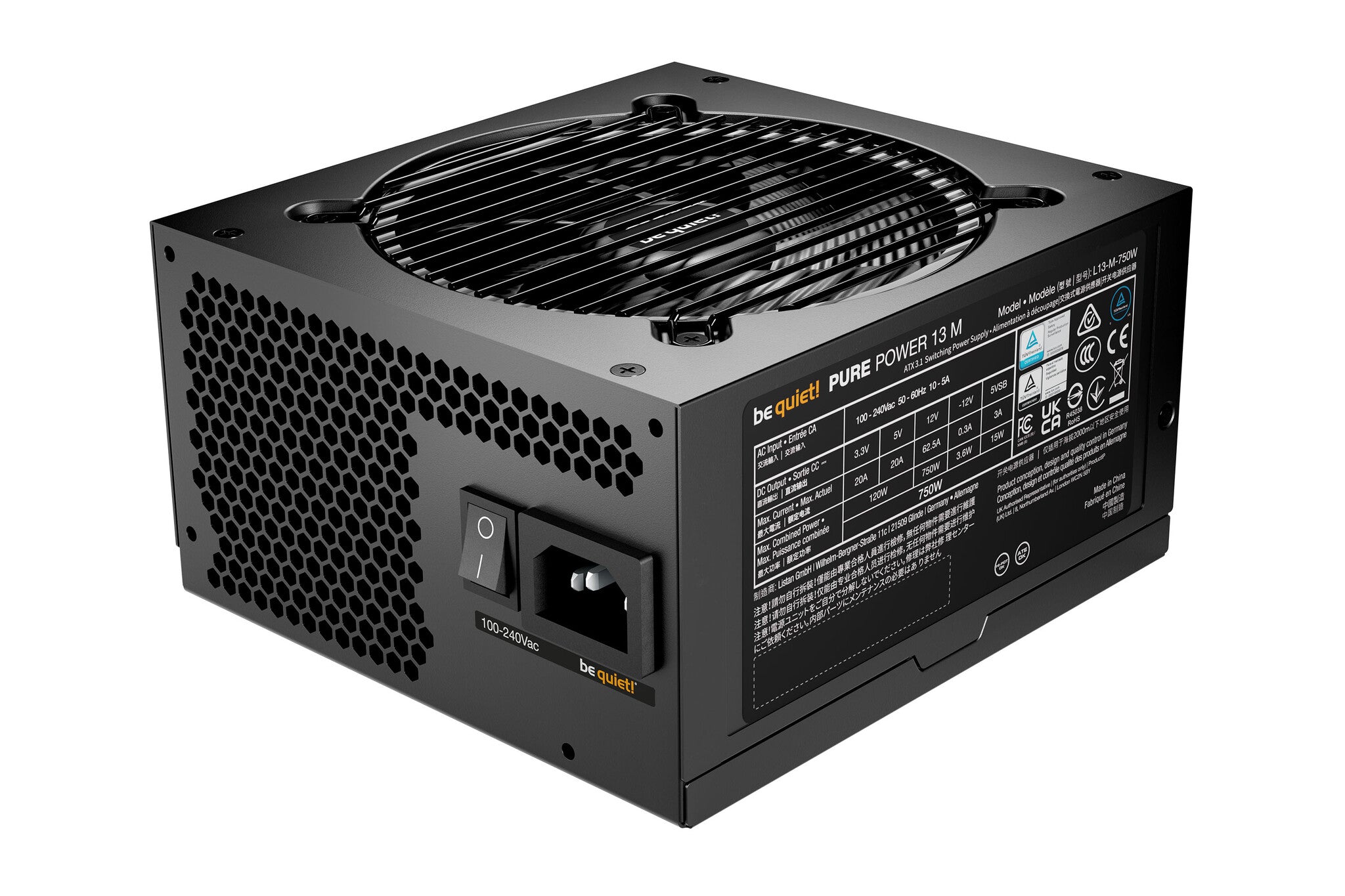

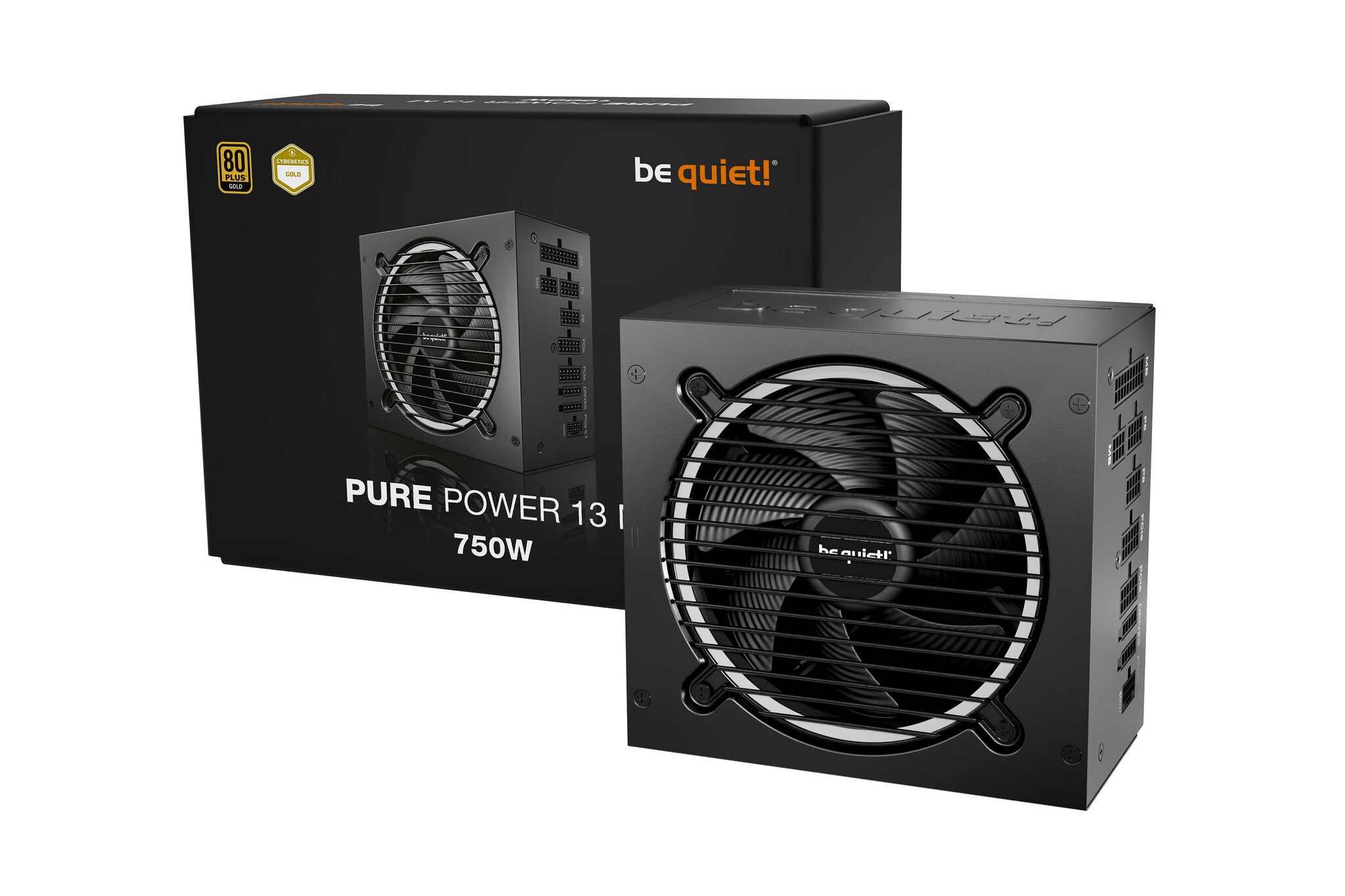

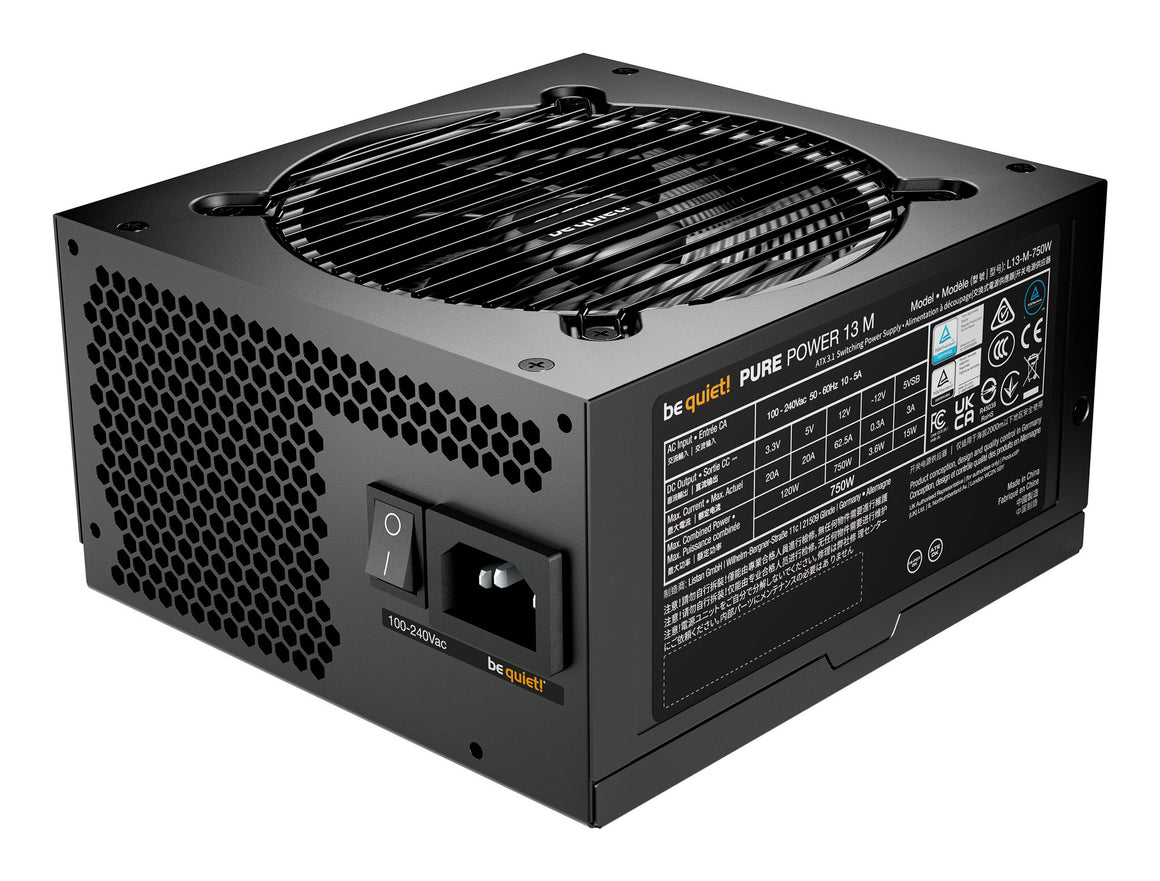

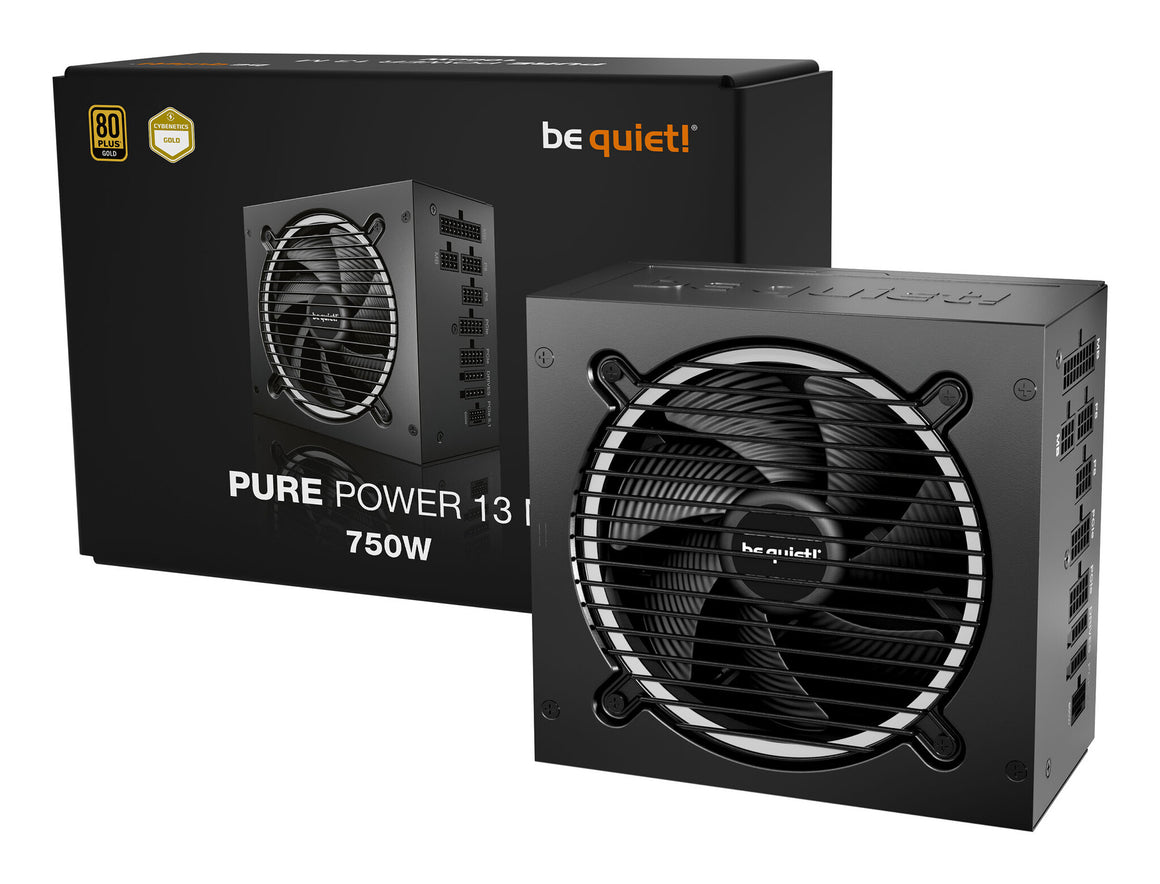

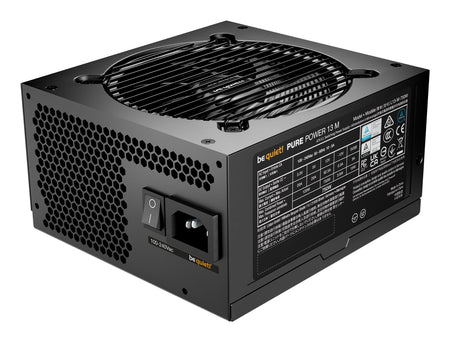

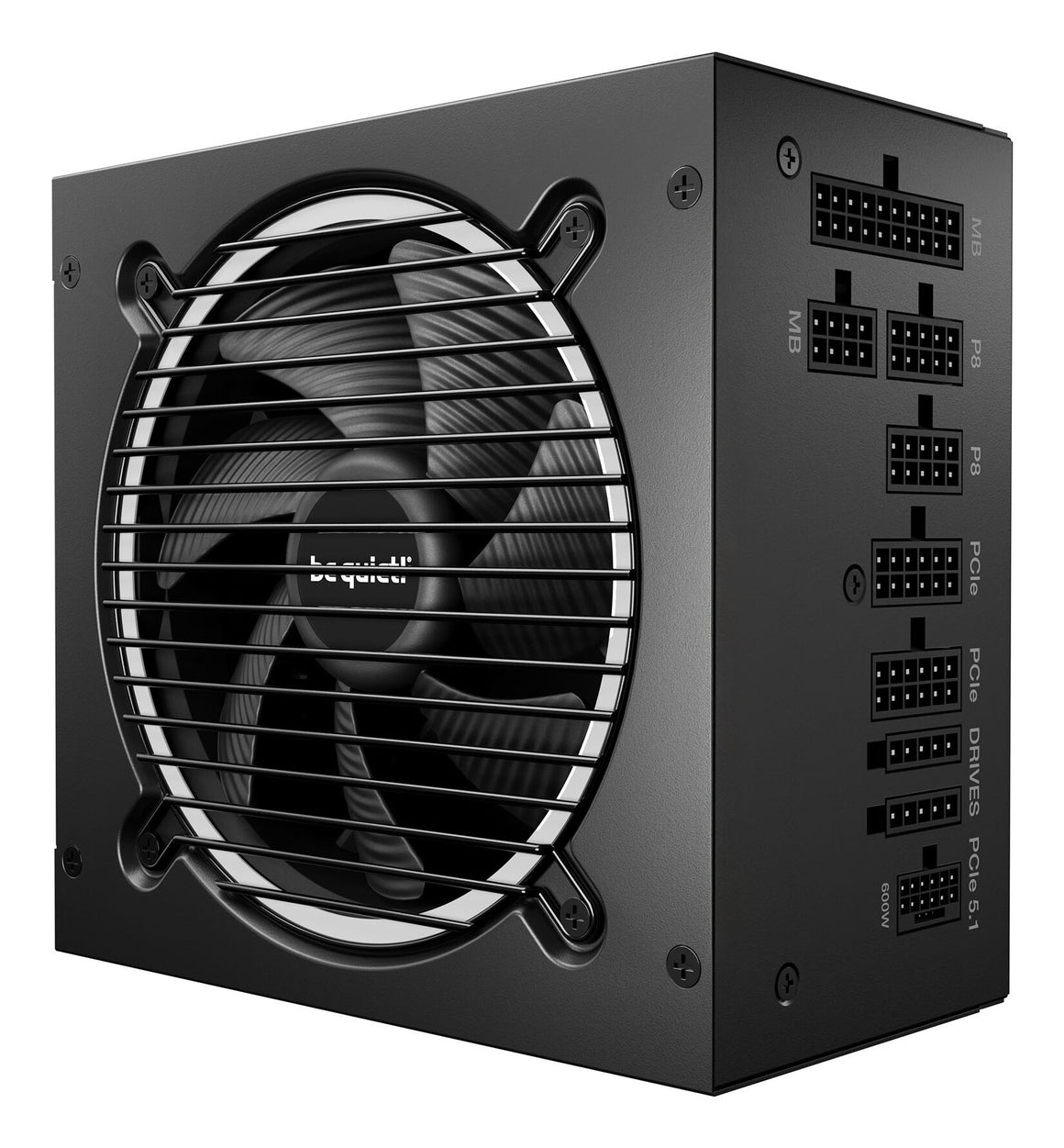

Pure Power 13 M 750W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Having both a PCIe 5.1 cable and PCIe 6+2 cables in the scope of delivery, this PSU offers outstanding compatibility with current-gen and next-gen graphics cards. Pure Power 13 M 750W offers the best combination of features with outstanding compatibility.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Efficiency |
92.6% |
| Hold time |
28.62 ms |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V1) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Number of +12V rail(s) |
1 |
| Power Factor Correction (PFC) type |
Active |
| Power factor |
0.98 |
| Maximum input current (@220V) |
5 A |
| Maximum input current (@110V) |
10 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Peak power |
820 W |
| Total power |
750 W |
| Ports & interfaces |
|---|

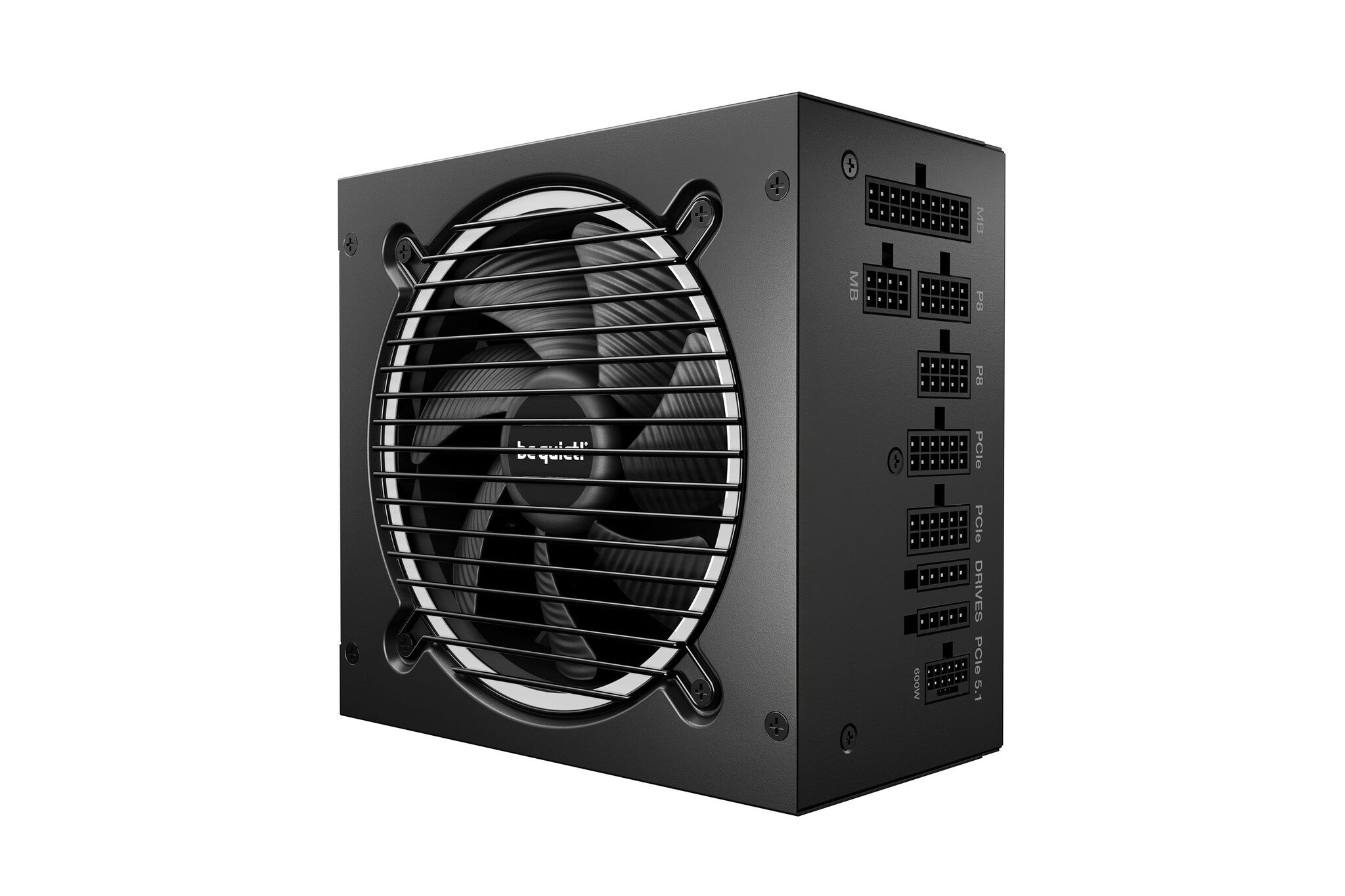

| Cabling type |
Fully-Modular |

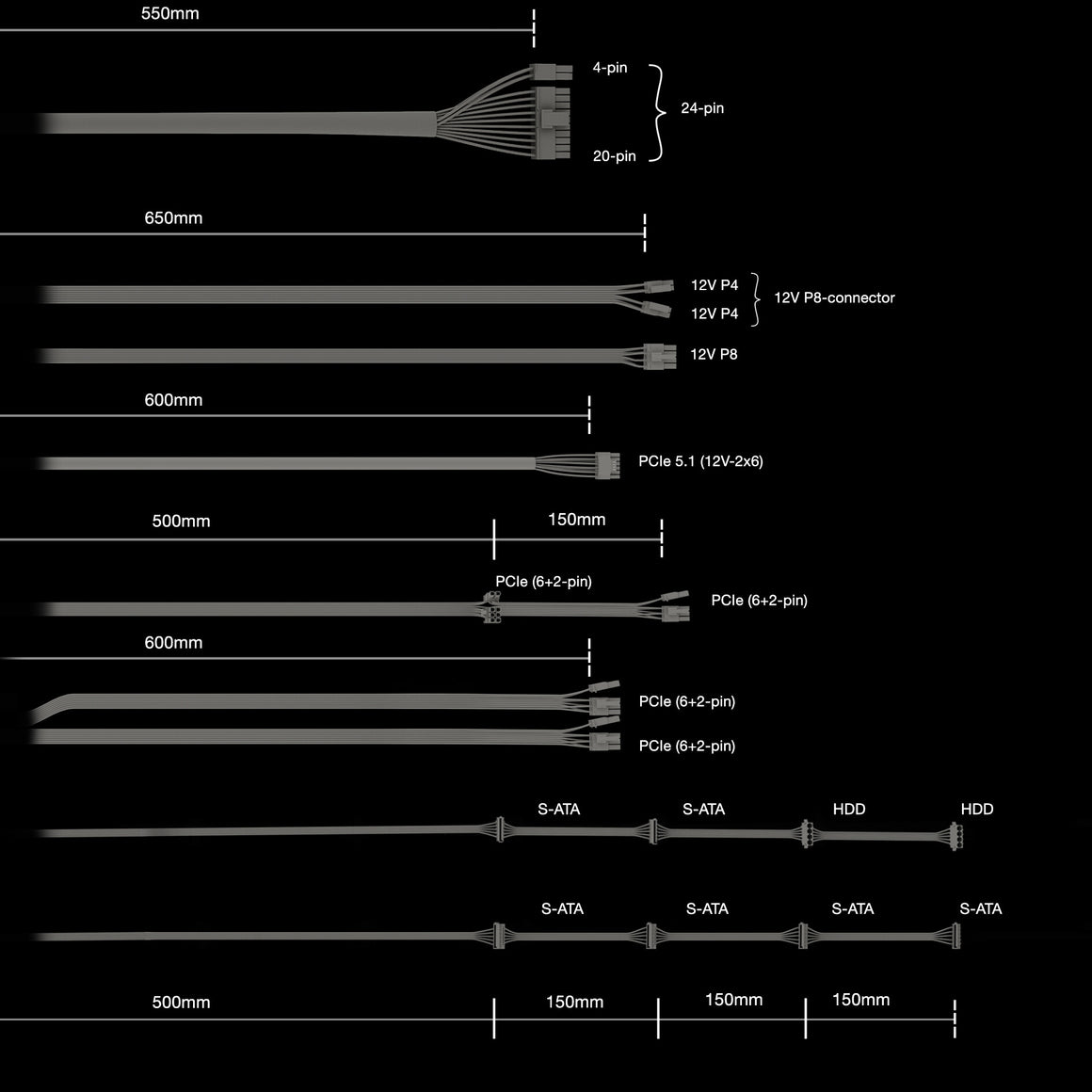

| CPU power cable length |
65 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU P4 connector (4-pin) |
2 |
| PCI Express power connectors (12-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
4 |
| EPS power connector (8-pin) |
Yes |
| Peripheral (Molex) power cable length |
800,950 mm |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| SATA power cable length |
500,650,800,950 mm |
| Number of SATA power connectors |
6 |
| Motherboard power cable length |
55 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
Rifle |

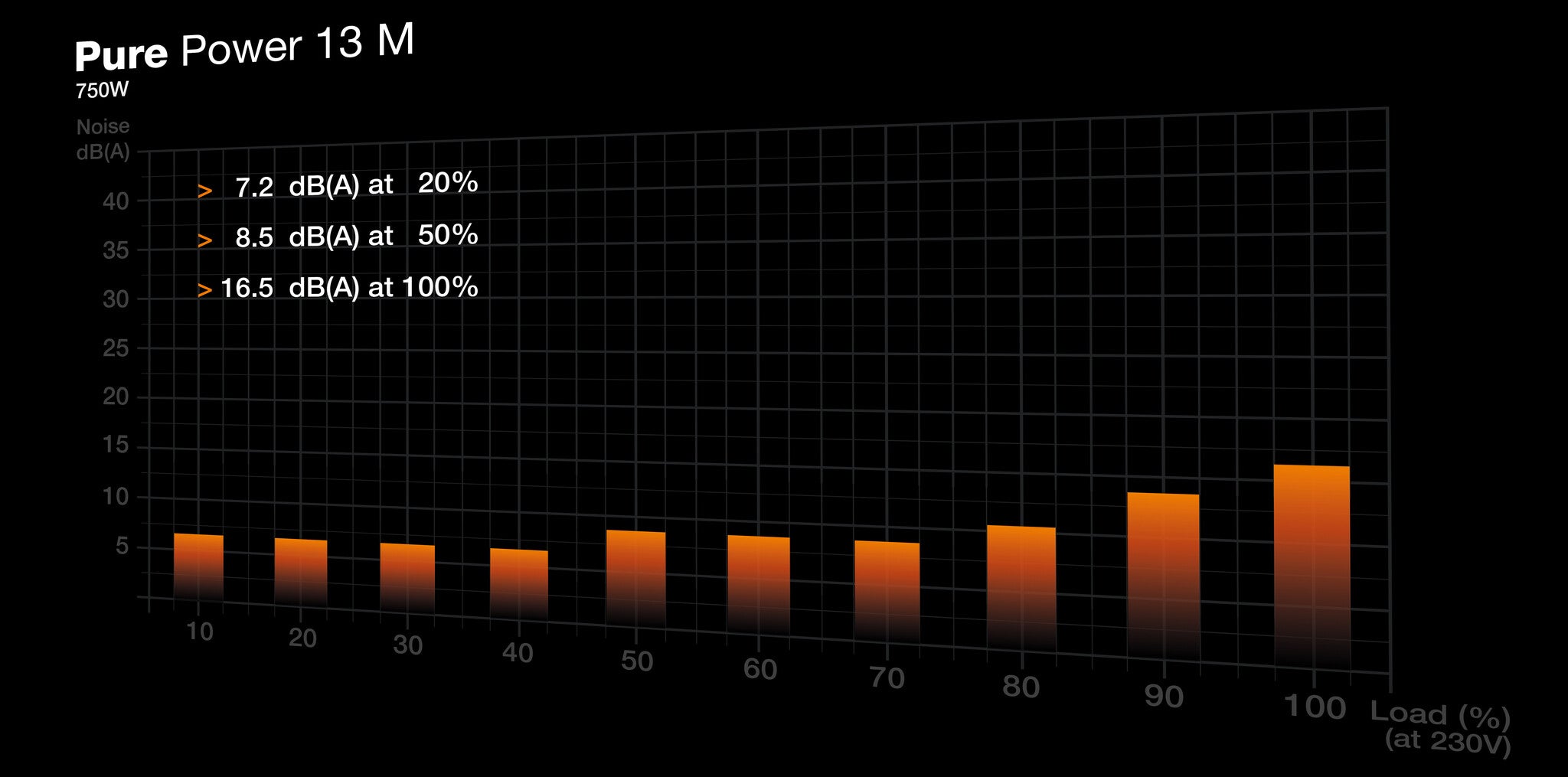

| Noise level |
20.8 dB |
| EPS version |
2.92 |
| ATX version |
3.1 |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Fan speed |
0 - 1800 RPM |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Compliance certificates |
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus |
| Packaging content |
|---|
| Cables included |

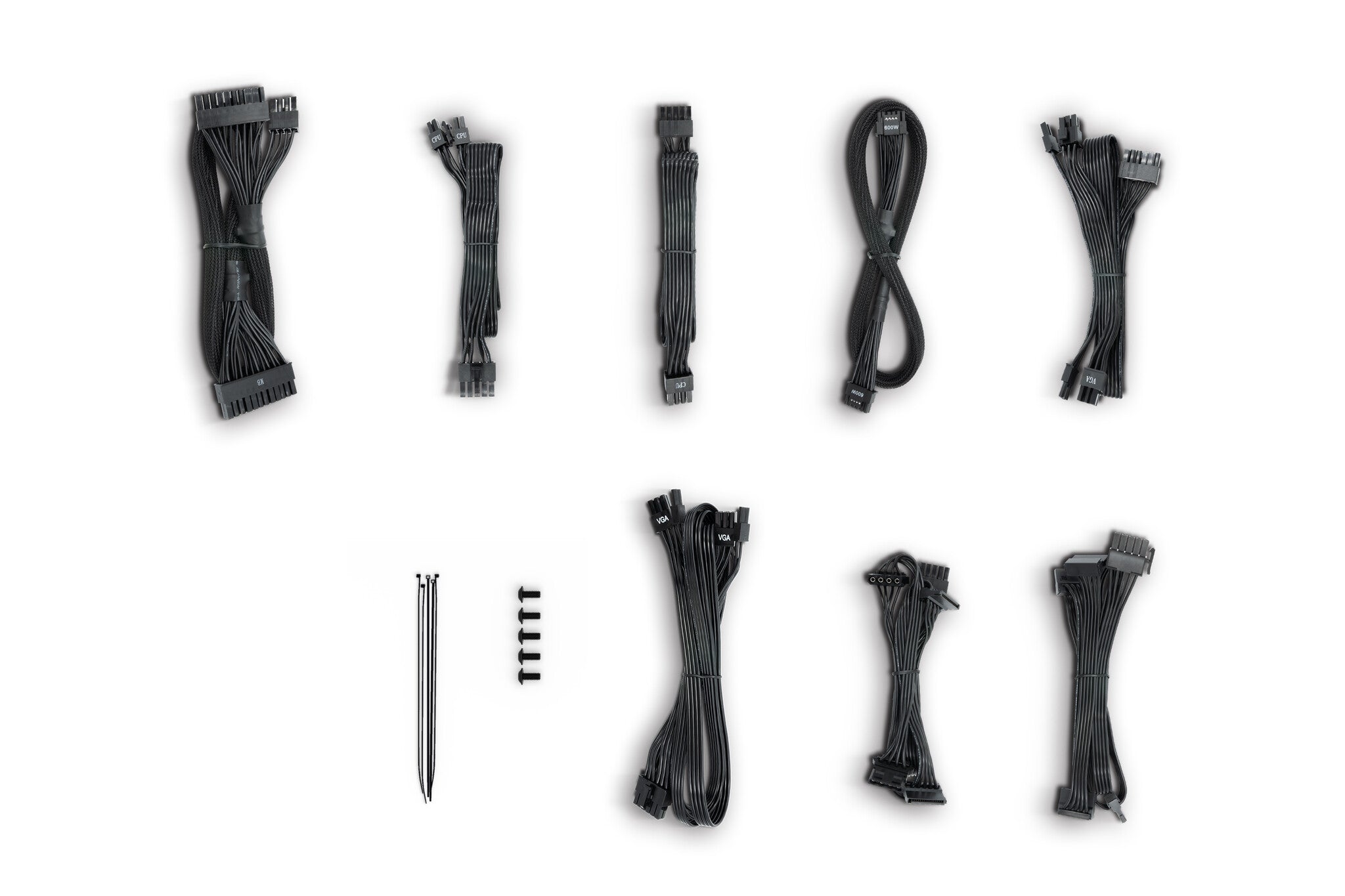

AC, CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Weight |
2.46 kg |
| Height |
86 mm |
| Depth |
160 mm |
| Width |
150 mm |
| Packaging data |
|---|
| Package weight |
3.2 kg |
| Package height |
133 mm |
| Package depth |
320 mm |
| Package width |
210 mm |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR, ErP |
| Logistics data |
|---|
| Shipping (inner) case gross weight |
21.5 kg |
| Shipping (inner) case length |
58 cm |
| Shipping (inner) case width |
32.5 cm |
| Shipping (inner) case height |
23.3 cm |
| Products per shipping (inner) case |
6 pc(s) |
| Other features |
|---|
| Cable ties included |
Yes |
| Screws included |
Yes |
