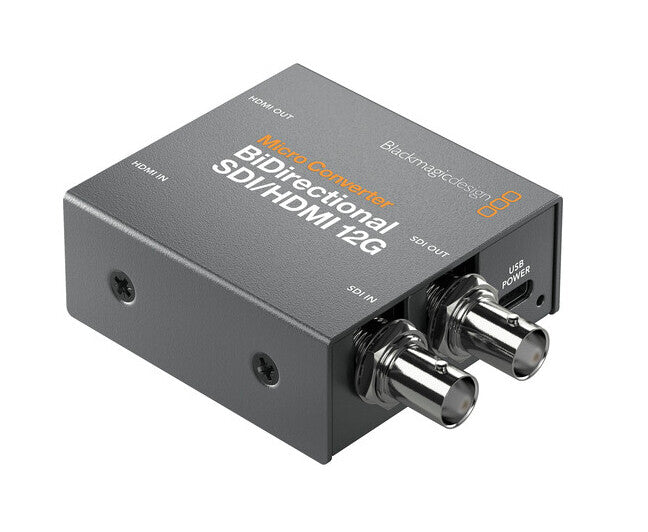

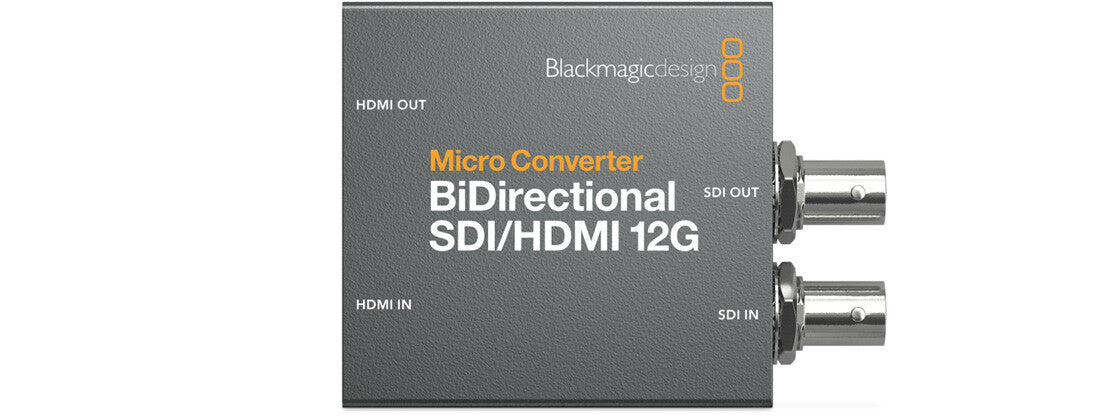

Now you can convert SDI to HDMI and HDMI to SDI in all SD, HD and Ultra HD formats up to 2160p60! Each conversion direction can be a different SD, HD or Ultra HD video standard, it’s like getting two converters in one! The all metal durable design is perfect for live production and broadcast. Plus it’s small enough to be hidden and used anywhere. It can be powered from any USB-C socket!
| Features |
|---|
| Mac operating systems supported |
Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Windows operating systems supported |
Windows 10 |
| Product colour |
Grey |
| Reclocking |
Yes |
| Internal |
No |
| Converter type |
Active video converter |
| Video |
|---|
| Auto detection resolution |
Yes |
| SDI auto-switching |
Yes |
| Serial Digital Interface (SDI) standard |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| Colour space supported |
YUV |
| Supported chroma subsampling |
4:2:2 |
| Analog signal format system |
NTSC, PAL |
| Supported video modes |
720p, 1080i, 1080p |
| Ports & interfaces |
|---|
| BNC output ports |
1 |
| BNC video output |
Yes |
| Video in |
1 |
| Video out |
1 |
| Host interface |
SDI/HDMI |
| Output interface |
SDI/HDMI |
| Power |
|---|
| External power adapter |
Yes |
| Operating voltage |
5.25 V |
| Power consumption (typical) |
5 W |
| USB powered |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
174 g |
| Height |
25 mm |
| Depth |
59 mm |
| Width |
797 mm |
