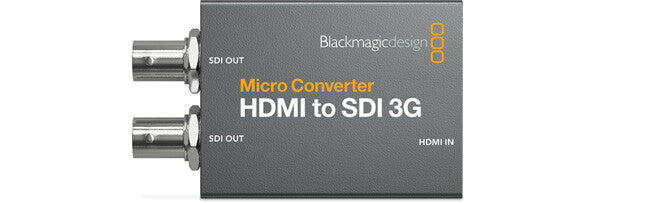

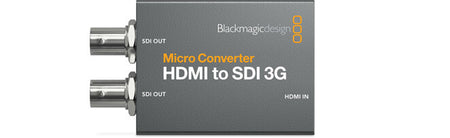

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
| Features |
|---|
| Mac operating systems supported |
Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Windows operating systems supported |
Windows 10 |
| Product colour |
Grey |
| Converter type |
Passive video converter |
| Video |
|---|
| Serial Digital Interface (SDI) standard |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M |
| Colour space supported |
YUV |
| Resolution at capture speed |
1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@23.98PsF, 1920x1080@24fps, 1920x1080@25fps, 1920x1080@29.97PsF, 1920x1080@30fps, 1920x1080@48fps, 1920x1080@50fps, 1920x1080@60fps |
| Supported video modes |
720p, 1080i, 1080p |
| Video resolutions |
1280 x 720,1920 x 1080 pixels |
| Maximum video resolution |
1920 x 1080 pixels |
| Audio |
|---|
| Audio output channels |
2.0 channels |
| Ports & interfaces |
|---|
| Host interface |
HDMI |
| Output interface |
SDI |
| Connector type |
USB-C |
| Connection to PC |
Yes |
| Power |
|---|
| Operating voltage |
5.25 V |
| Power consumption (typical) |
2 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
149.9 g |
| Height |
24.8 mm |
| Depth |
45.7 mm |
| Width |
79.5 mm |
| Packaging data |
|---|
| Quantity |
20 |
