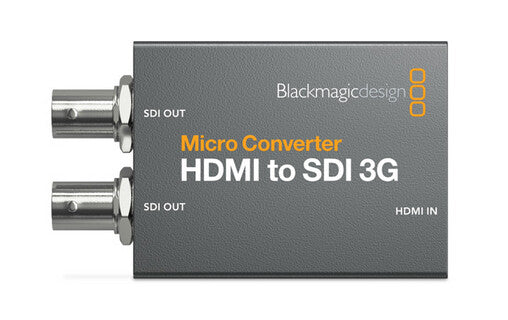

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters.
| Features |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10 |
| Product colour |
Grey |
| Reclocking |
Yes |
| Converter type |
Active video converter |
| Video |
|---|
| Auto detection resolution |
Yes |
| SDI auto-switching |
Yes |
| Serial Digital Interface (SDI) standard |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M |
| Colour space supported |
YUV |
| Supported chroma subsampling |
4:2:2 |
| Analog signal format system |
NTSC, PAL |
| Supported video modes |
720p, 1080i, 1080p |
| Ports & interfaces |
|---|
| BNC output ports |
2 |
| BNC video output |
Yes |
| Video in |
1 |
| Video out |
2 |
| Host interface |
HDMI |
| Output interface |
SDI |
| Power |
|---|
| External power adapter |
Yes |
| Operating voltage |
5 V |
| Power consumption (typical) |
2 W |
| USB powered |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
150 g |
| Height |
248 mm |
| Depth |
458 mm |
| Width |
794 mm |
