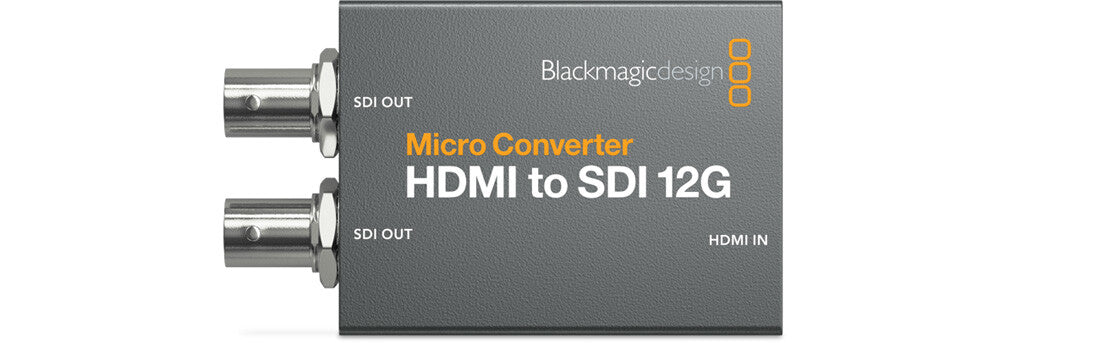

Blackmagic Design CONVCMIC/HS12G video signal converter Active video converter

SKU: CONVCMIC/HS12G

£121.69 inc. VAT

Active video converter
Host interface: HDMI Output interface: SDI (BNC)
External power adapter USB powered
Grey

The world’s smallest HDMI to 12G-SDI broadcast quality converter! Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/47.95/48 DCI. You can power it over USB from a laptop or a mobile phone charger!

Features
Mac operating systems supported	Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur
Windows operating systems supported	Windows 10
Product colour	Grey
Reclocking	Yes
Internal	Yes
Converter type	Active video converter

Video
Colour space supported	YUV
Supported chroma subsampling	4:2:2
Supported video modes	720p, 1080i, 1080p, 2560p, 3840p

Ports & interfaces
BNC output ports	2
BNC video output	Yes
Video in	1 x HDMI A
Host interface	HDMI
Output interface	SDI (BNC)

Power
External power adapter	Yes
USB powered	Yes
Input voltage	5.25 V

Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Weight	150 g
Height	24.8 mm
Depth	45.8 mm
Width	78 mm
