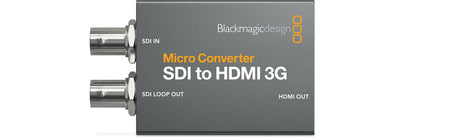

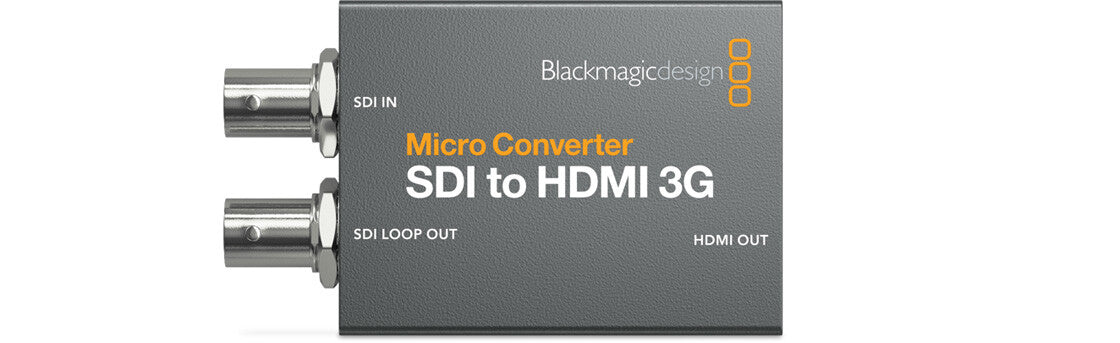

This model has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48.
| Features |
|---|
| Mac operating systems supported |
Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur |
| Windows operating systems supported |
Windows 10 |
| Internal |
Yes |
| Converter type |
Active video converter |
| Video |
|---|
| Colour space supported |
YUV |
| Supported chroma subsampling |
4:2:2 |
| Supported video modes |
1080i, 1080p, 720p |
| Ports & interfaces |
|---|
| BNC output ports |
1 |
| BNC video output |
Yes |
| Host interface |
SDI (BNC) |
| Output interface |
SDI/HDMI |
| Power |
|---|
| External power adapter |
Yes |
| USB powered |
Yes |
| Input voltage |
5.25 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
150 g |
| Height |
24.8 mm |
| Depth |
45.8 mm |
| Width |
79.4 mm |
