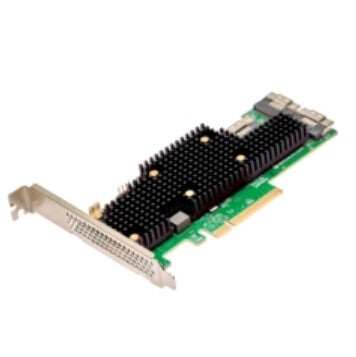

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.
With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.
| Ports & interfaces |
|---|
| NVMe |
Yes |
| Expansion card standard |
PCIe 4.0 |
| Expansion card form factor |
Full-height / Low-profile |
| Output interface |
SAS, SATA |
| Host interface |
PCIe |
| Design |
|---|
| Certification |
Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020) |
| Mean time between failures (MTBF) |
5000000 h |
| Product colour |
Green, Silver |
| Internal |
Yes |
| Features |
|---|
| Plug and Play |
Yes |
| S.M.A.R.T. support |
Yes |
| Data transfer rate (max) |
12 Gbit/s |
| Power |
|---|
| Power consumption (typical) |
17 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 55 °C |
| System requirements |
|---|
| Other operating systems supported |
Yes |
| Server operating systems supported |
SUSE Linux Enterprise Server |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS, WEEE |
| Weight & dimensions |
|---|
| Depth |
68.9 mm |
| Width |
155.6 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Channels quantity |
24 channels |
