Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

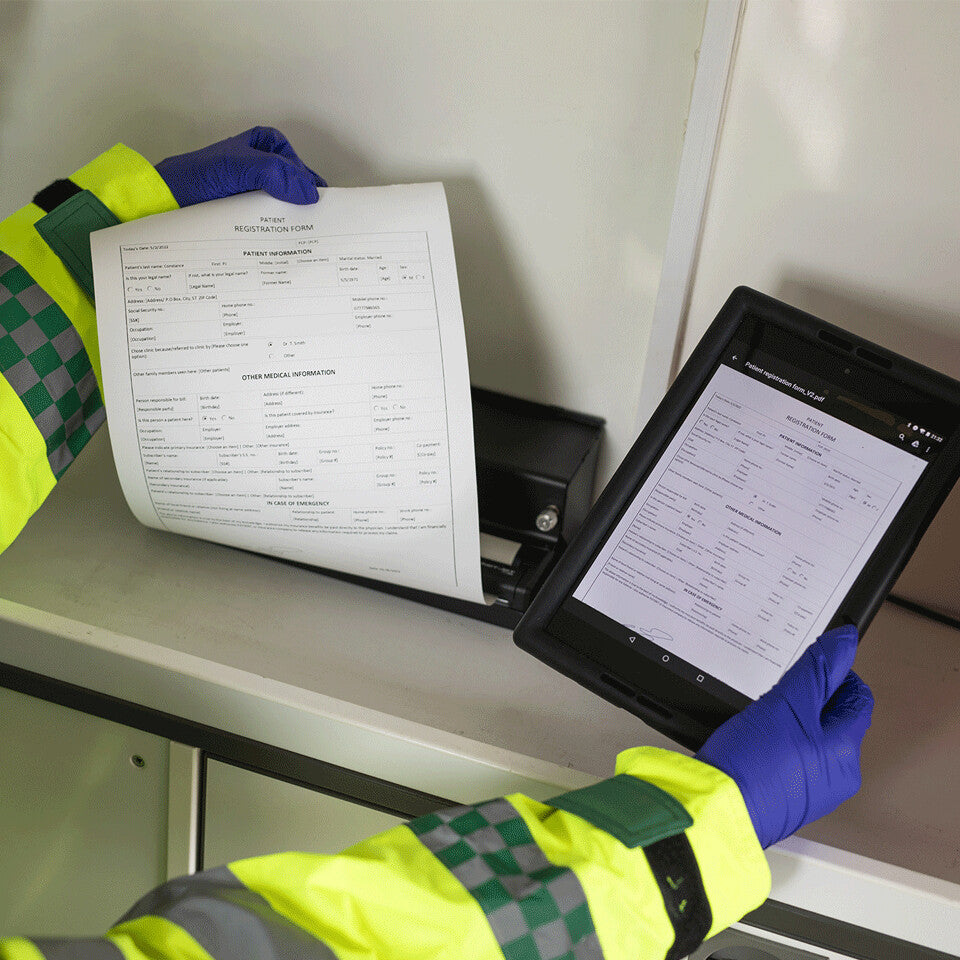

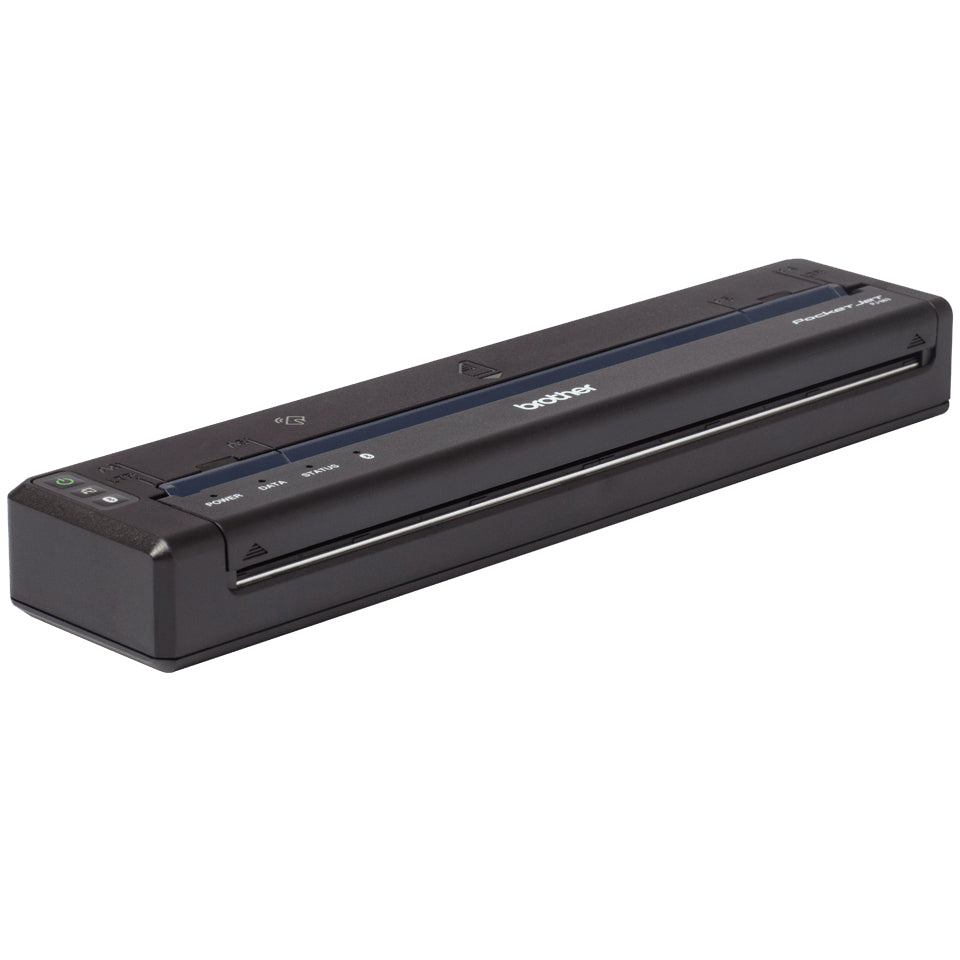

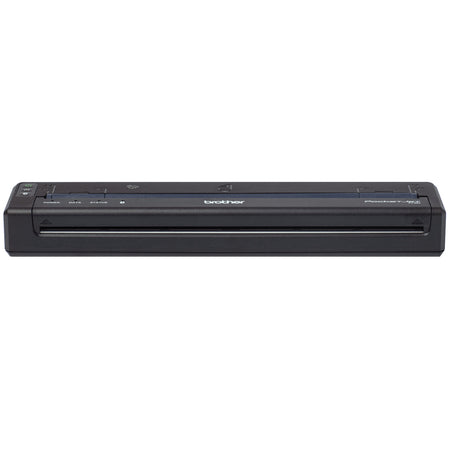

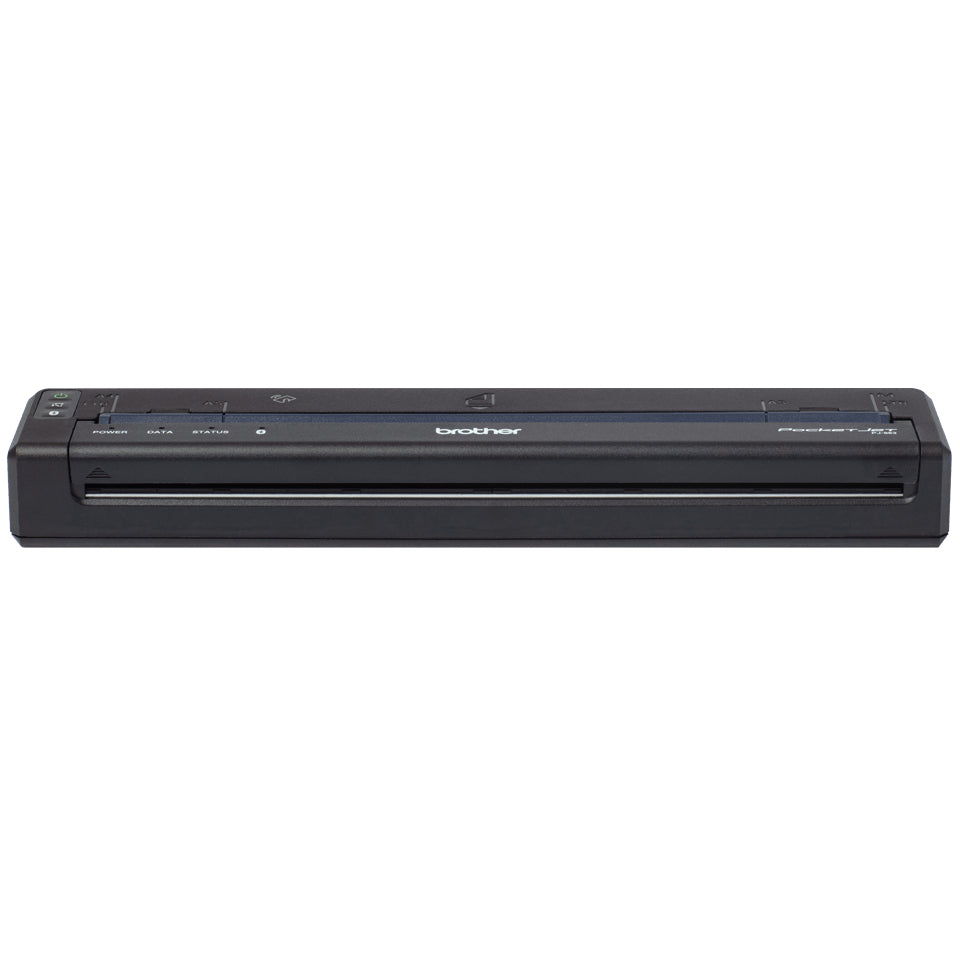

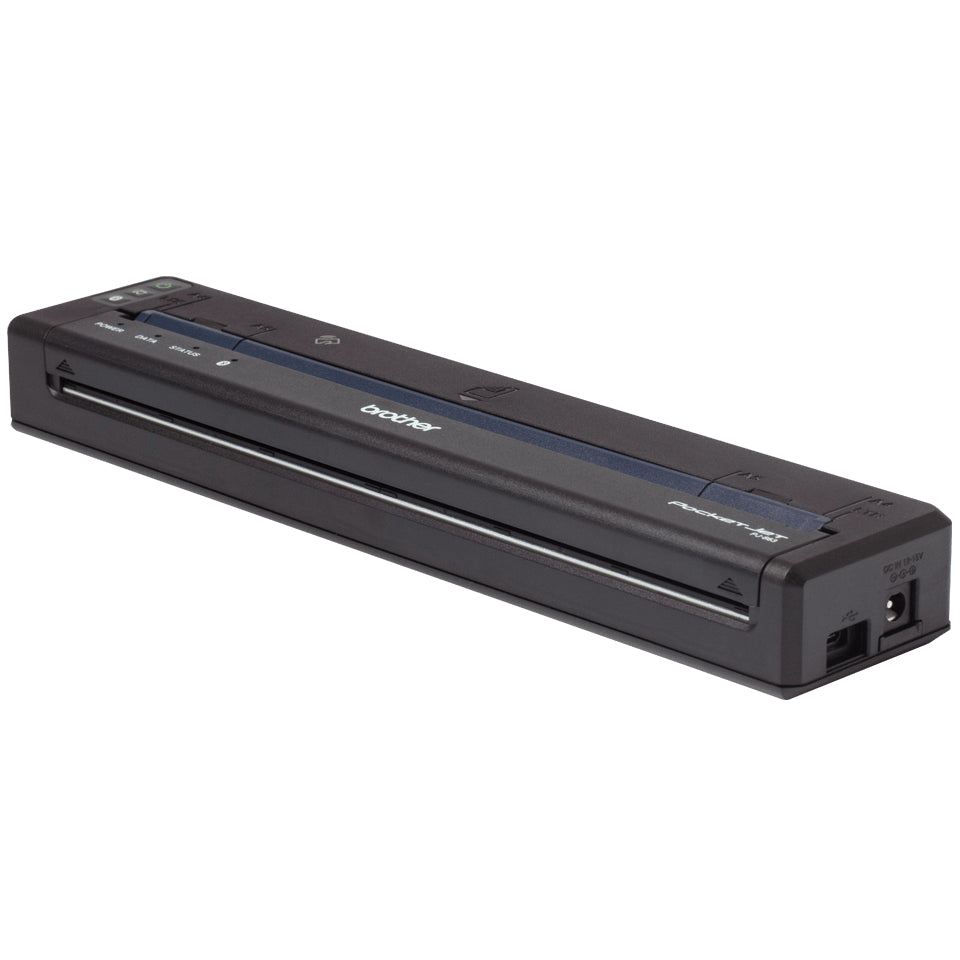

The PJ-863 supports both charging and data transfer via USB-C, as well as Bluetooth connectivity to provide a mobile A4 print solution which is compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.
Thermal print technology at 300x300dpi produces high-resolution, crisp text at a print speed of up to 13.5 pages per minute.
Compatible with a wide range of mobile and desktop operating systems, the PJ-863 can easily be integrated into your own apps and software using the various SDK's (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.
| Printing |
| Printing characters |
2D barcode, Barcode, Text |
| Maximum resolution |
300 x 300 DPI |
| Type |
Mobile printer |
| Print technology |
Direct thermal |
| Paper handling |
| Maximum printing width |
20.3 cm |
| Printing media thickness |
160 µm |
| Ports & interfaces |
| Bluetooth profiles |
GATT, HCRP, OPP, SSP |
| Bluetooth version |
5.2 |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth |
Yes |
| USB connector |
USB Type-C |
| USB port |
Yes |
| Connectivity technology |
Wired & Wireless |
| Features |
| Flash memory |
64 MB |
| Internal memory |
256 MB |
| Built-in barcodes |
Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF, Industrial 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, Standard 2/5, UPC-A, UPC-E |
| Design |
| Built-in display |
No |
| Product colour |
Black |
| Power |
| Power source type |
USB |
| System requirements |
| Linux operating systems supported |
Yes |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Weight |
480 g |
| Height |
30 mm |
| Depth |
55 mm |
| Width |
255 mm |
