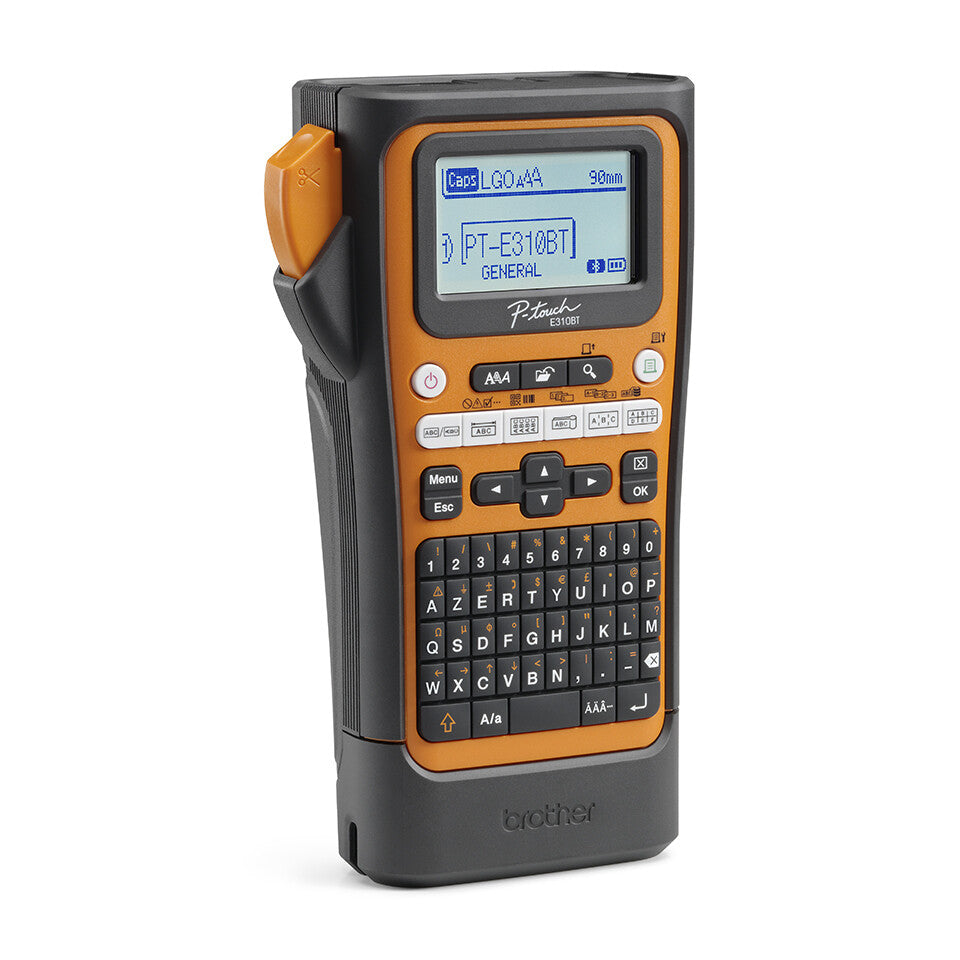

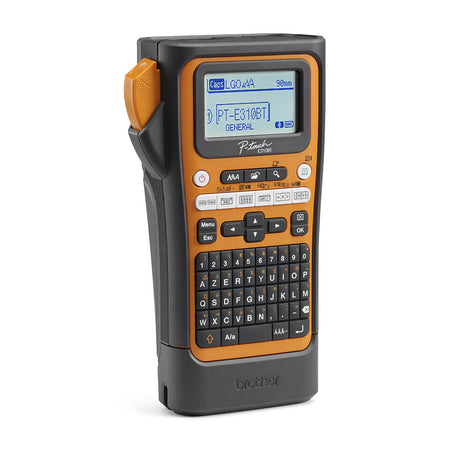

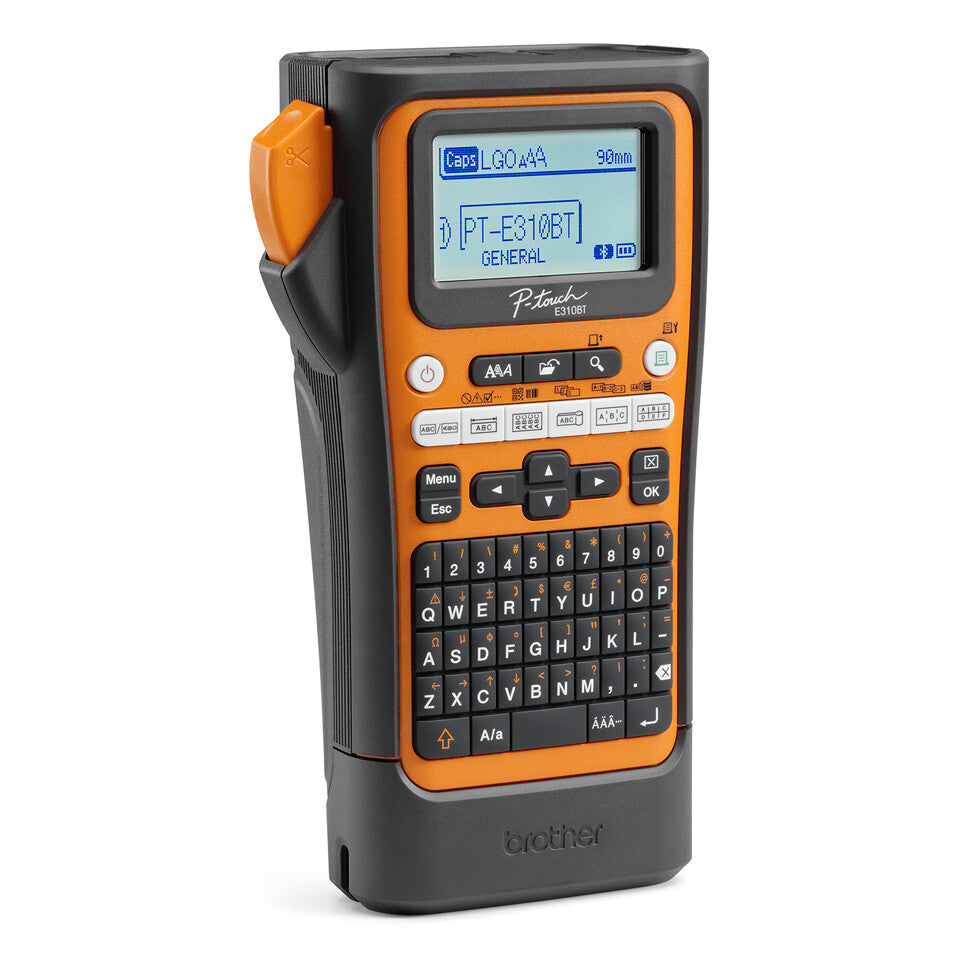

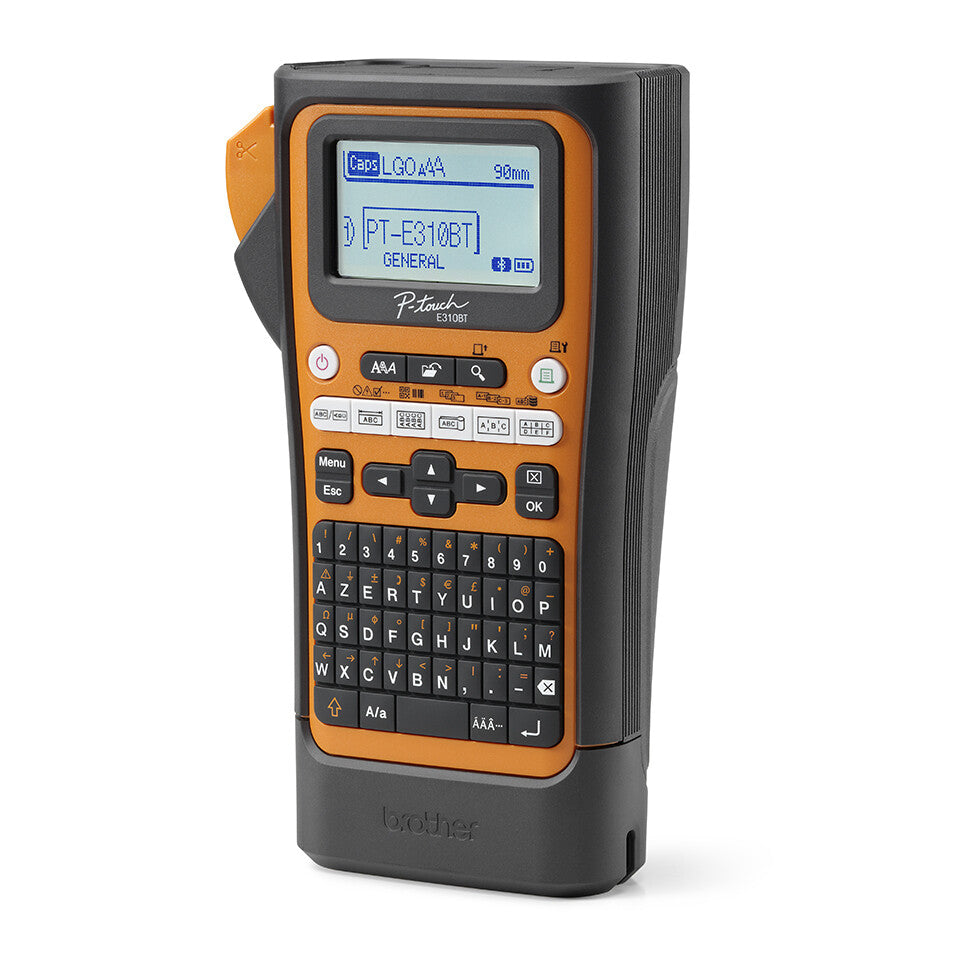

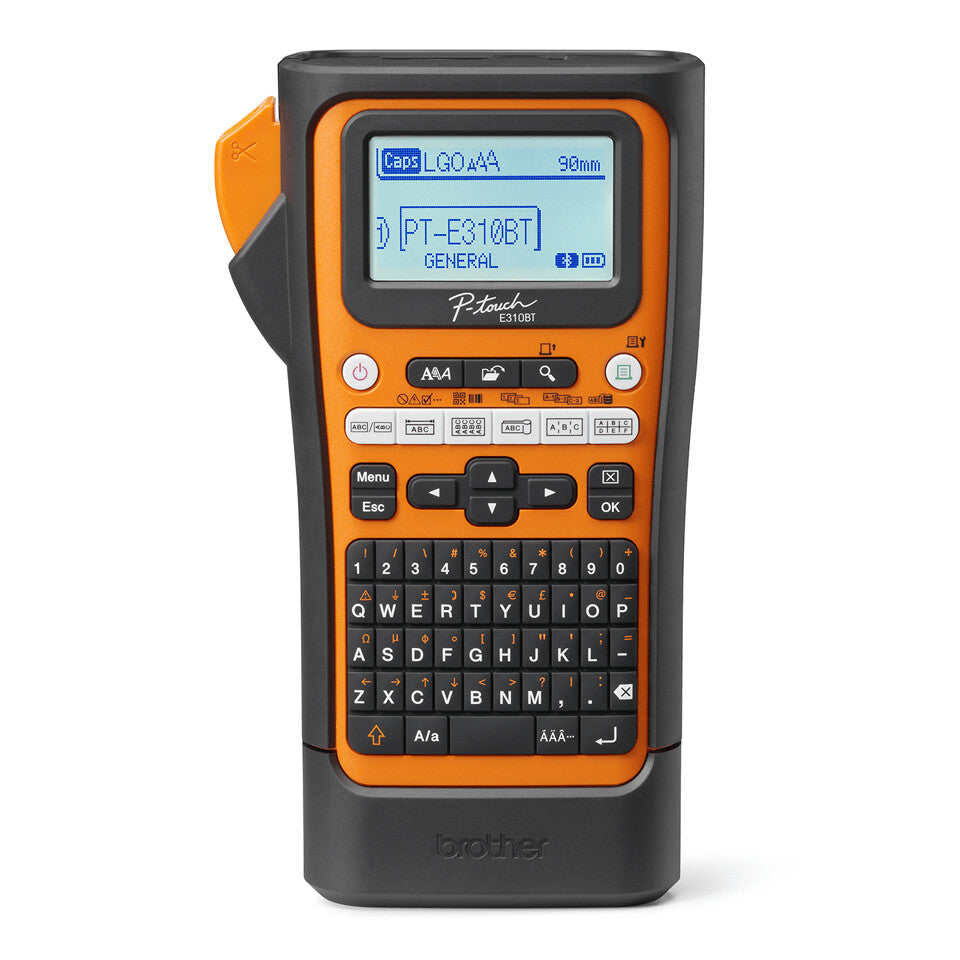

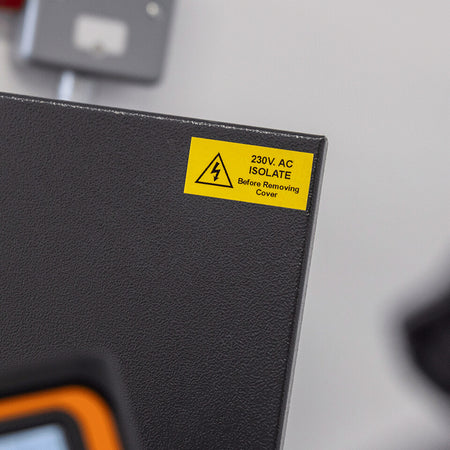

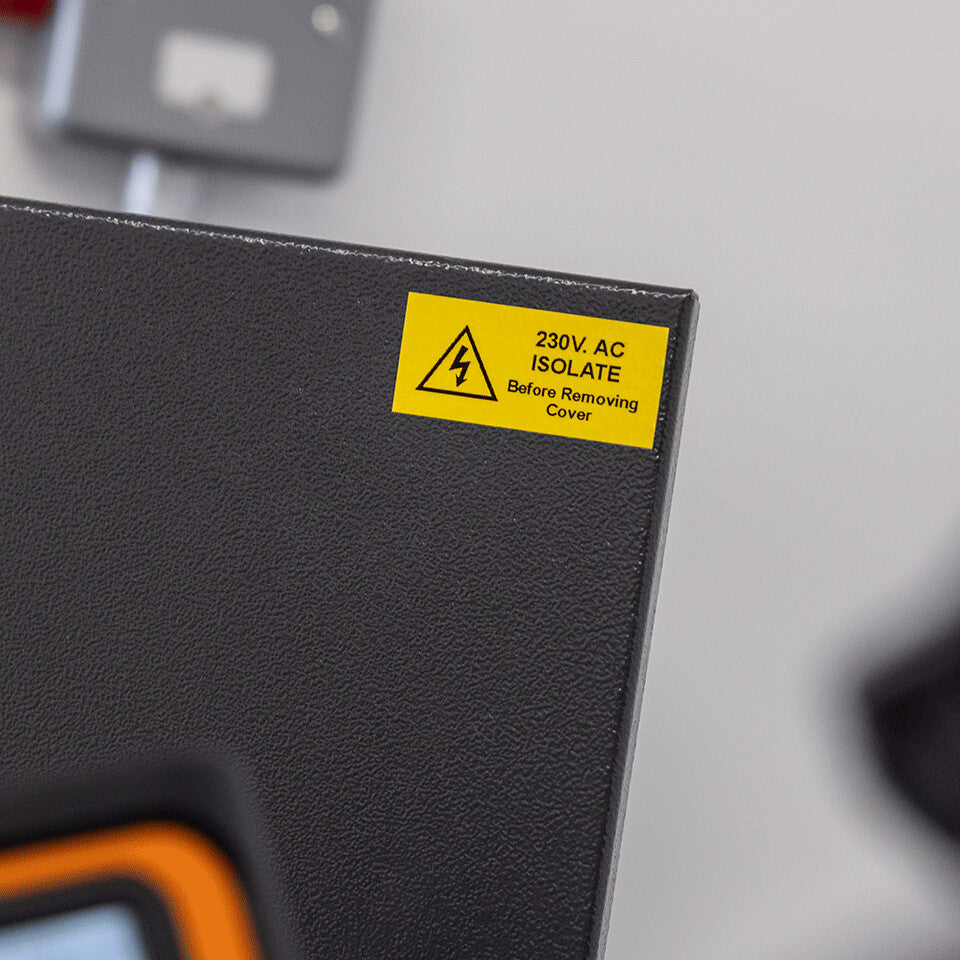

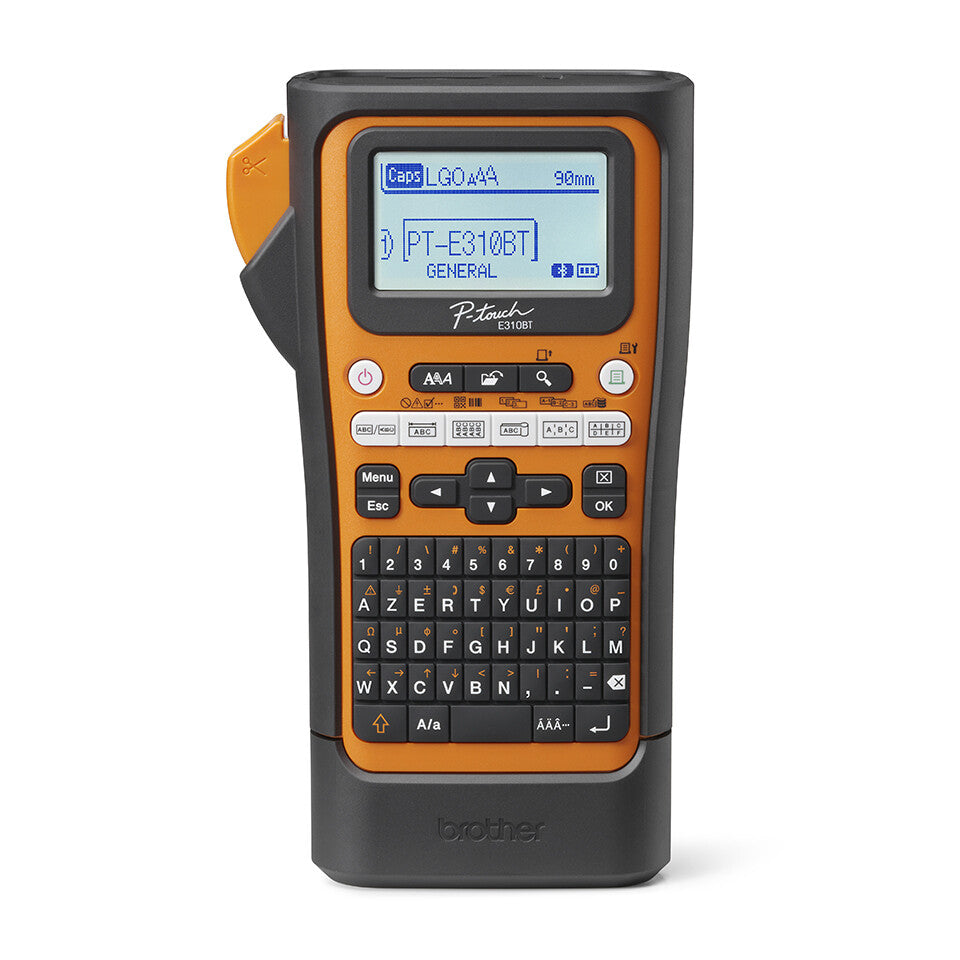

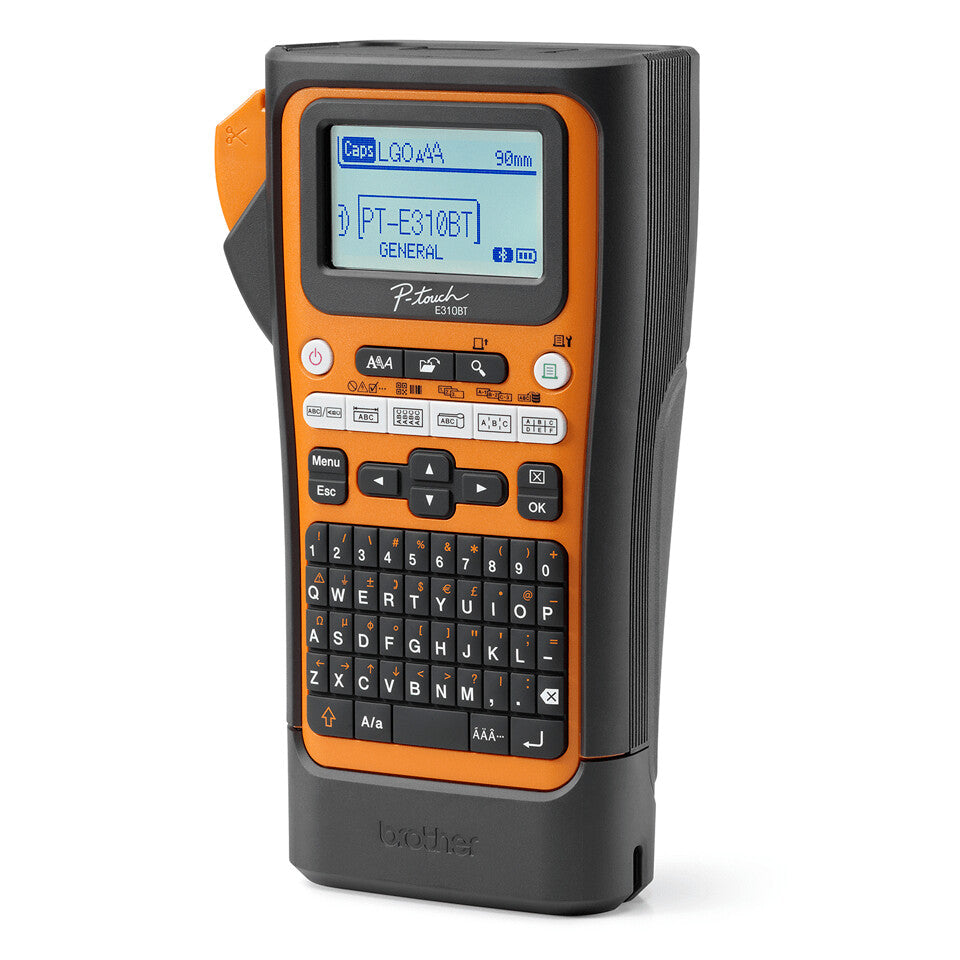

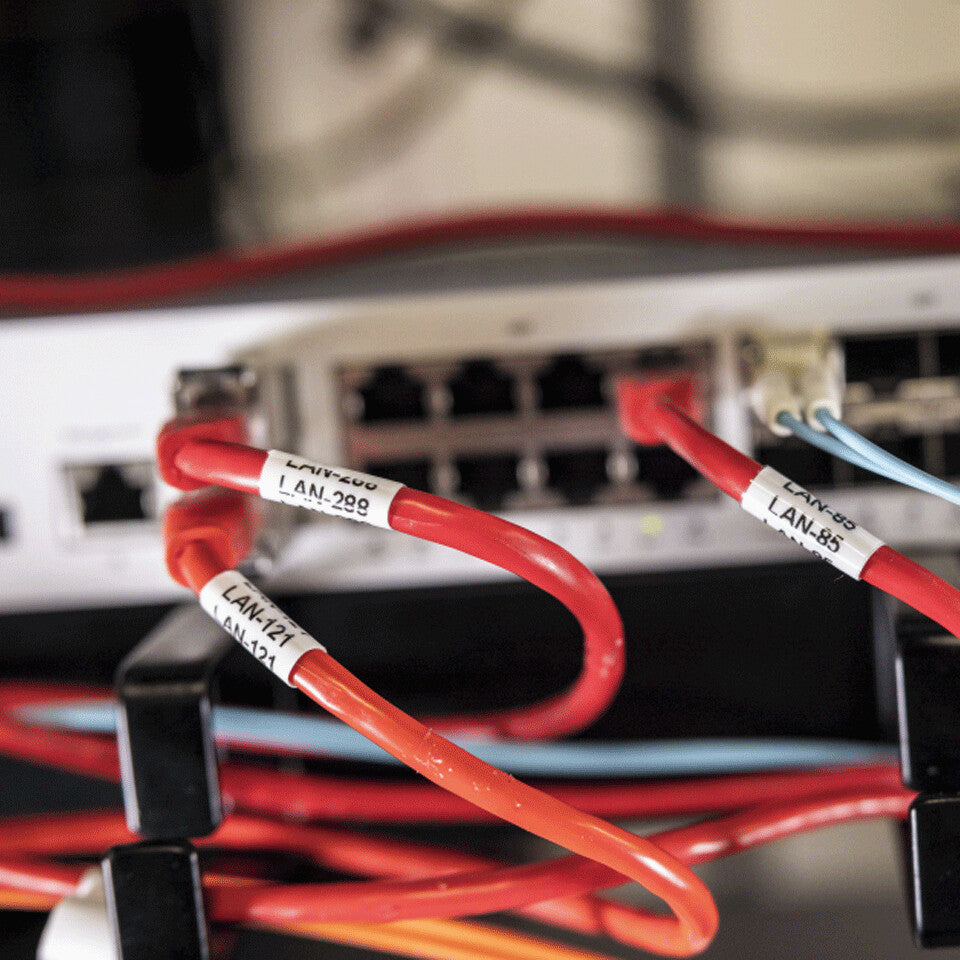

Ensure durable, long-life identification of electrical installations, including danger/warning signs, solar panels and AV equipment, cables and wires. Print labels in standalone mode using the built-in QWERTY keyboard, large display and specialist labelling functions. Integrated bluetooth offers the flexibility to connect to a PC, smartphone or tablet and print labels that comply with all industry standards and regulations using Brother's Pro Label Tool App and P-touch Editor software. Compatible with Pro Tapes - Brother's specialist range of fit-for-purpose tapes that offer resistance to water, chemicals, abrasion and extreme temperatures - our market-leading machines are built to last, with labels that match.
| Printing |
|---|
| Maximum print length |
1 m |
| Vertical printing |
Yes |
| Mirror printing |
Yes |
| Rotated printing |
Yes |
| Maximum print height |
1.8 cm |
| Maximum printing width |
1.58 cm |
| Print speed |
20 mm/sec |
| Number of printable dots |
128 dot |
| Maximum resolution |
180 x 180 DPI |
| Colour |
No |
| Print technology |
Thermal transfer |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Wi-Fi |
No |
| Ethernet LAN |
No |
| Connectivity technology |
Wired & Wireless |
| Performance |
|---|
| Underline |
Yes |
| Number of printing lines (max) |
5 |
| Tape type |
HSE/TZe |
| Number of fonts |
7 |
| Number of symbols |
477 |
| Built-in barcodes |
CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, GS1-128, UPC-A, UPC-E |
| Design |
|---|
| Keyboard layout |
QWERTY |
| Backlight display |
Yes |
| Display |
LCD |
| Built-in display |
Yes |
| Keyboard number of keys |
64 |
| Product colour |
Black, Orange |
| Power |
|---|
| Power source type |
Battery |
| Auto power off |
Yes |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Number of batteries supported |
1 |
| Battery type |
Built-in battery |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Battery |
|---|
| Battery weight |
190 g |
| Battery capacity |
14 Wh |
| Rechargeable battery |
Yes |
| System requirements |
|---|
| Mobile operating systems supported |
Android 10, Android 9.0, iOS 11.0, iOS 12, iOS 13, iOS 15, iOS 16 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
20 - 80% |
| Operating relative humidity (H-H) |
20 - 80% |
| Weight & dimensions |
|---|
| Weight |
800 g |
| Height |
70 mm |
| Depth |
236 mm |
| Width |
135 mm |
| Packaging data |
|---|
| Package weight |
3.08 kg |
| Package height |
393 mm |
| Package depth |
334.4 mm |
| Package width |
126 mm |

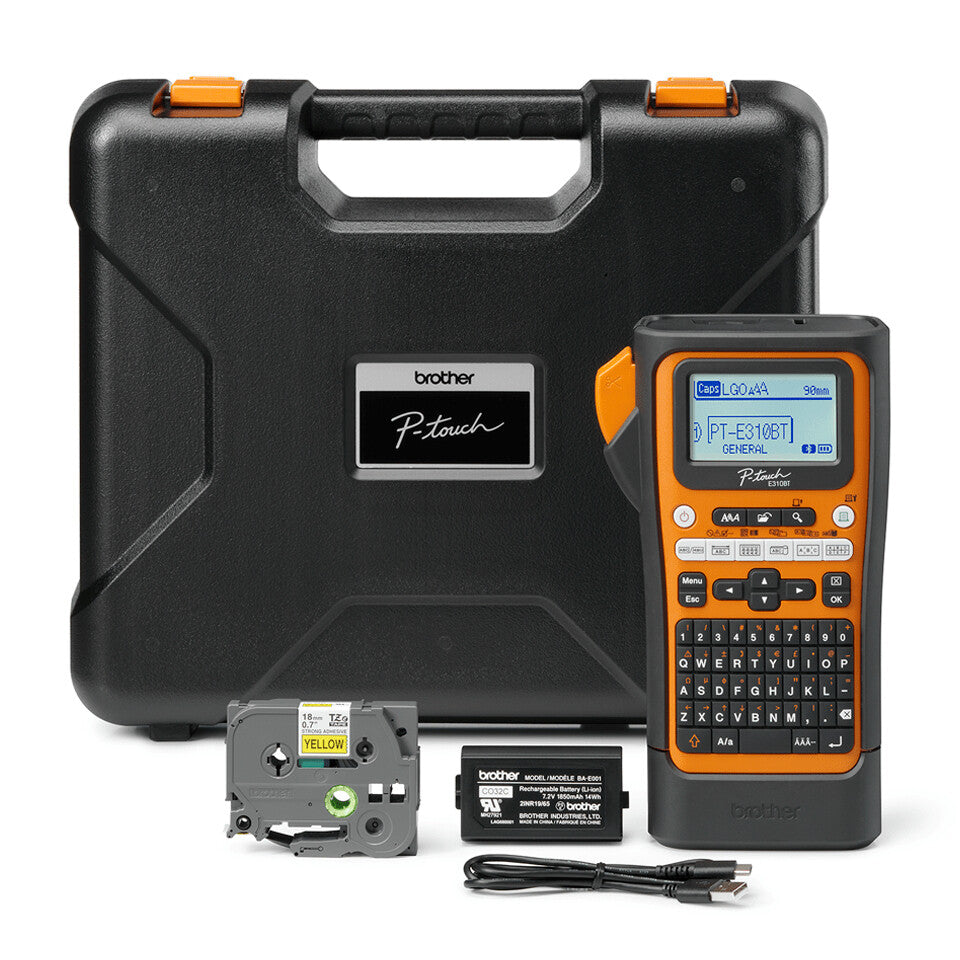

| Packaging content |
|---|
| Warranty card |
Yes |
| Wrist strap included |
Yes |
| Quick start guide |
Yes |
| Batteries included |
Yes |
| Cables included |
USB |
| Logistics data |
|---|
| Products per pallet |
72 pc(s) |
| Layers per pallet |
4 pc(s) |
| Master (outer) cases per pallet layer |
6 pc(s) |
| Master (outer) cases per pallet |
24 pc(s) |
| Pallet gross weight |
258 kg |
| Pallet gross height |
16.5 cm |
| Technical details |
|---|
| Multi-block |
99 |
| Sustainability compliance |
Yes |
| Pallet type |
1200 x 1000 mm |
| PC connection |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Sustainability certificates |
ENERGY STAR |
| Other features |
|---|
| Memory capacity |
1500 characters |
| Number of frames |
7 |
| Languages support |
Multi |
| Print preview |
Yes |
| Label memory |
99 label(s) |
