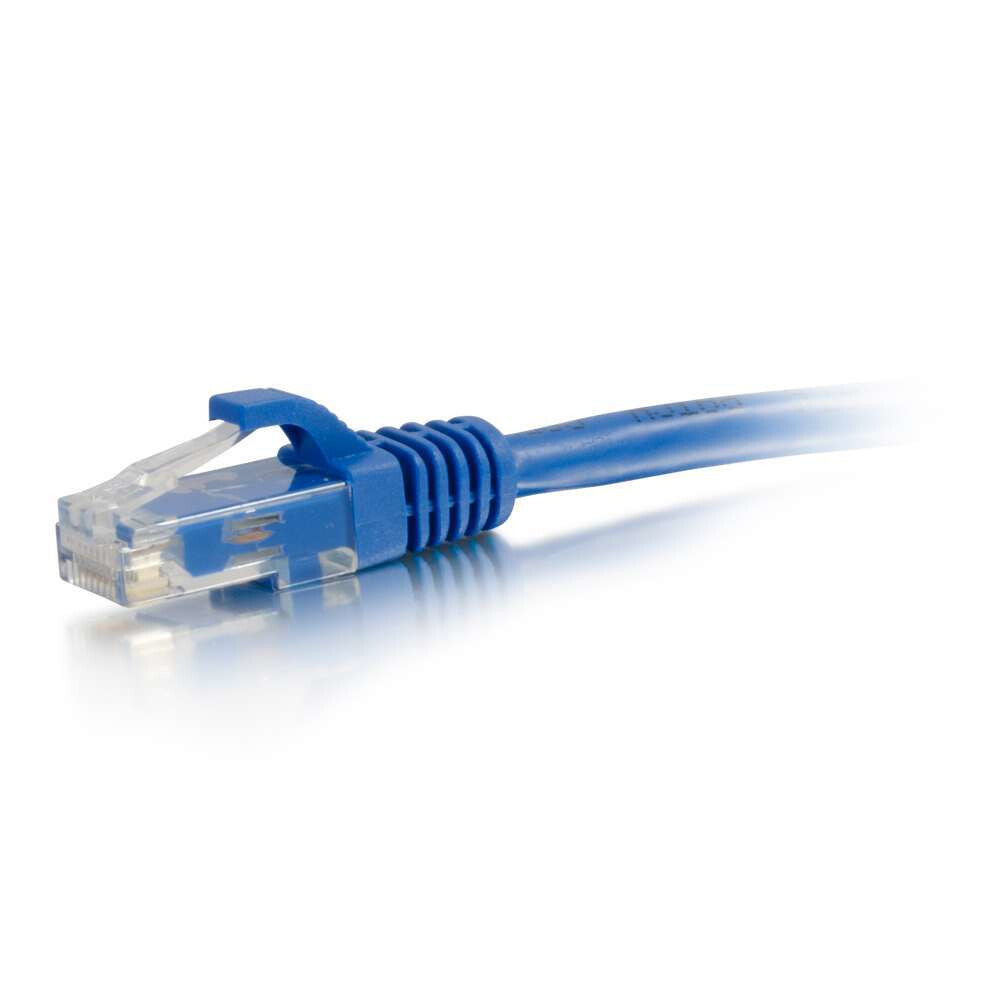

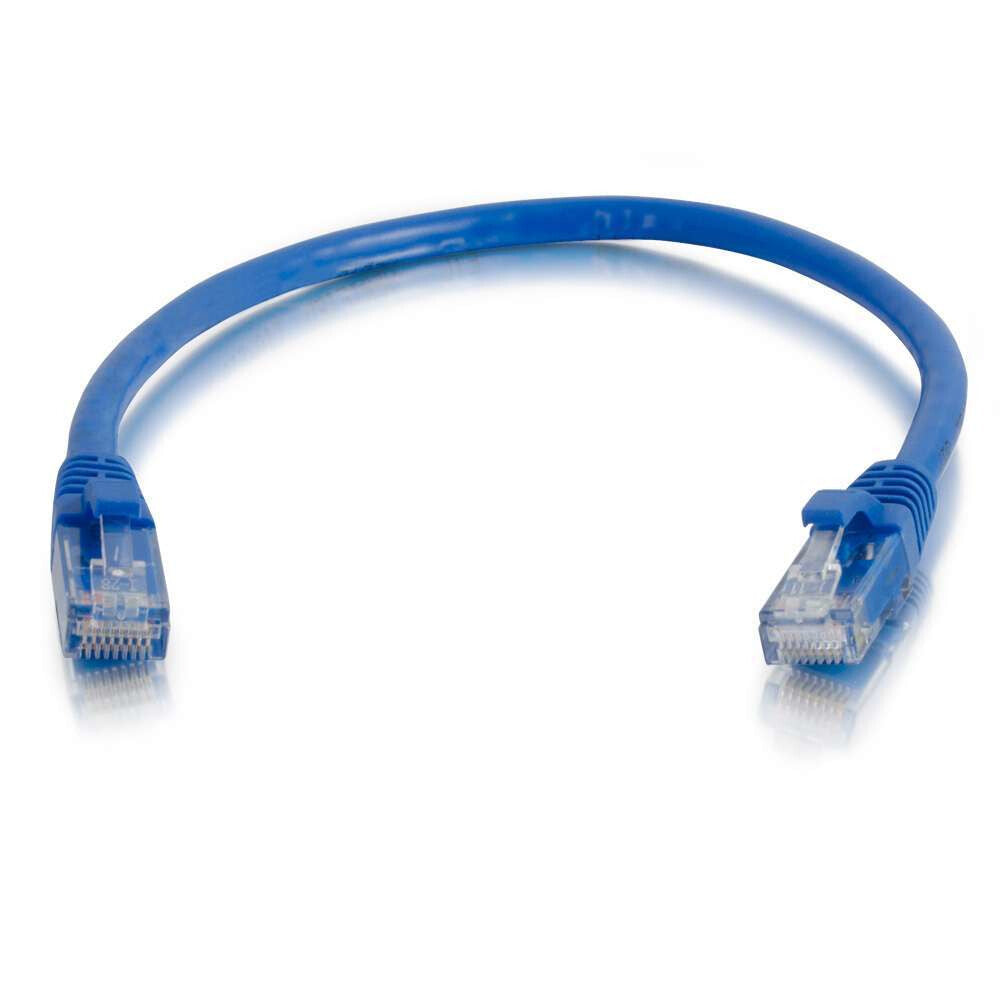

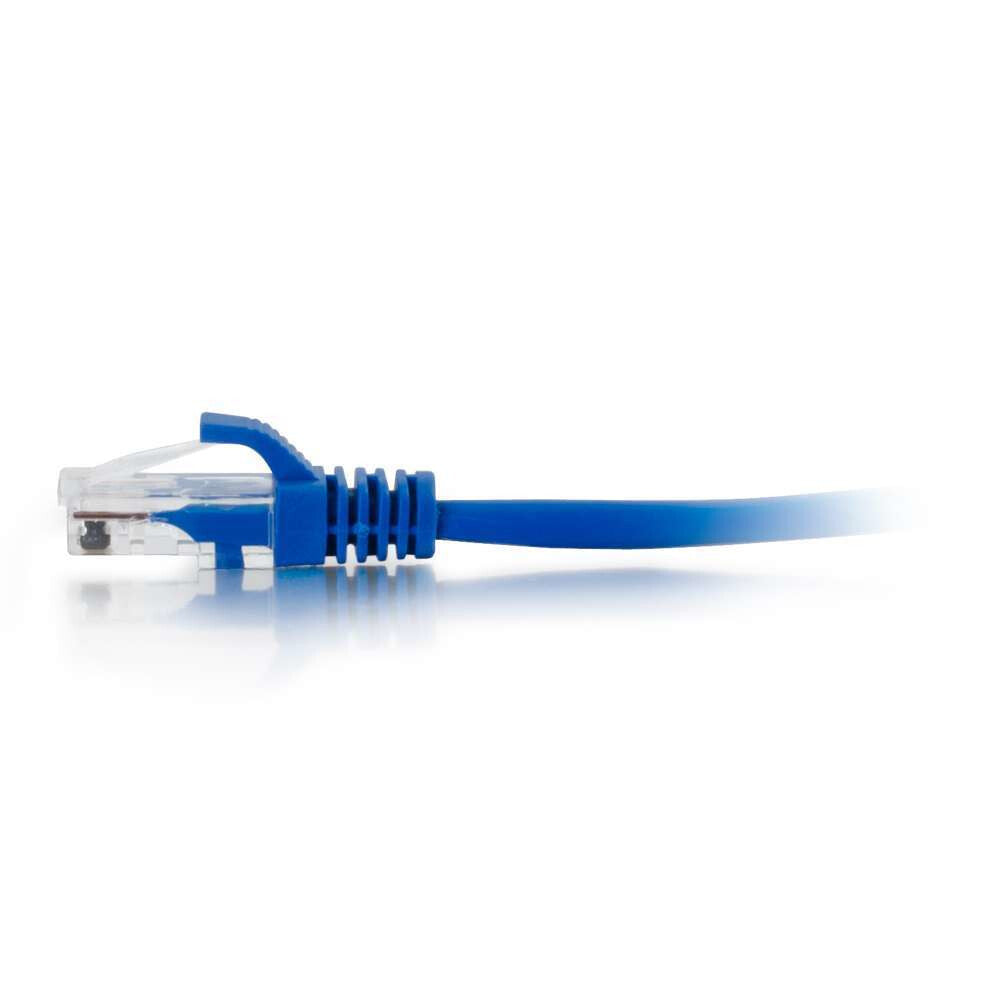

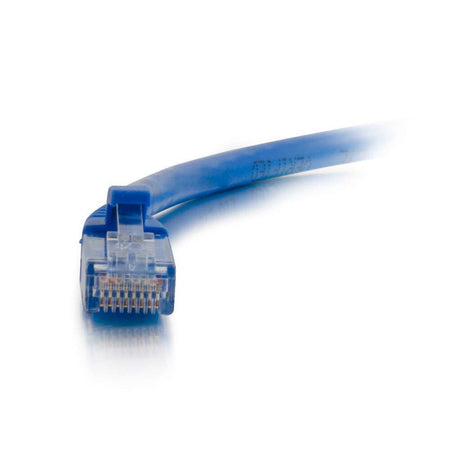

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs are bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily colour-code your network installation. Each cable is individually labelled with the length for ease of use.
| Features |
| AWG wire size |
24 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
RJ-45 |
| Connector 1 |
RJ.5 |
| Product colour |
Blue |
| Cable shielding |
U/UTP (UTP) |
| Cable standard |
Cat5e |
| Cable length |
0.3 m |
| Certificates |
| Compliance certificates |
RoHS |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| Input impedance |
100 Ω |
