Fibre optic cables use glass threads (fibres) to transmit data. These fibres transmit the data by using modulated light waves. Fibre cables are popular because they have a much greater bandwidth than the standard copper networking cables.
The cables have LC to LC connectors, yellow low smoke zero halogen jacket and 9µm fibre core with 125µm cladding.

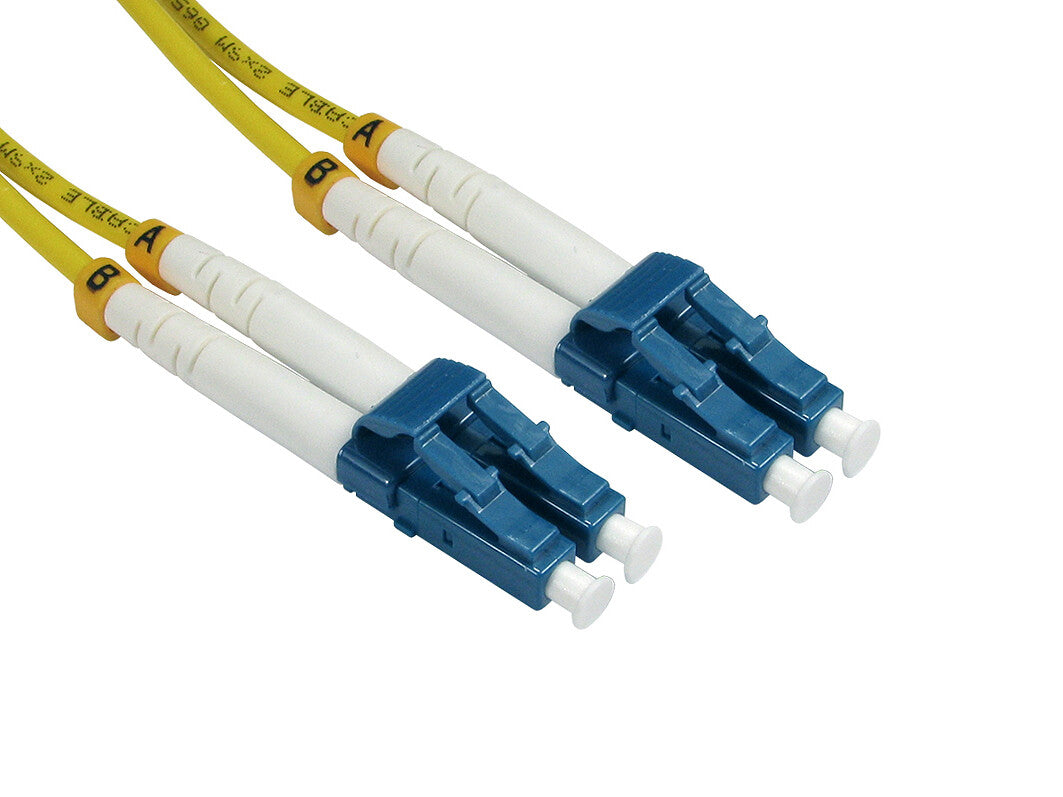

- LC to LC Connectors
- 9µm core 125µm cladding
- Low smoke zero halogen
- Duplex support
- Bend radius: 40mm
- Operating temperature? -60 to +85°
- Supports 1Gbps
- Overall diameter: 3mm
| Features |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Data transfer rate |
1 Gbit/s |
| Fiber mode structure |
Single-mode |
| Cladding diameter |
125 µm |
| Core diameter |
9 µm |
| Product colour |
Yellow |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
2x LC |
| Connector 1 |
2x LC |
| Cable length |
10 m |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-60 - 85 °C |
| Weight & dimensions |
|---|
| Bending radius |
4 cm |
| Cable diameter |
3 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
