Fibre optic cables use glass threads (fibres) to transmit data. These fibres transmit the data by using modulated light waves. Fibre cables are popular because they have a much greater bandwidth than the standard copper networking cables.

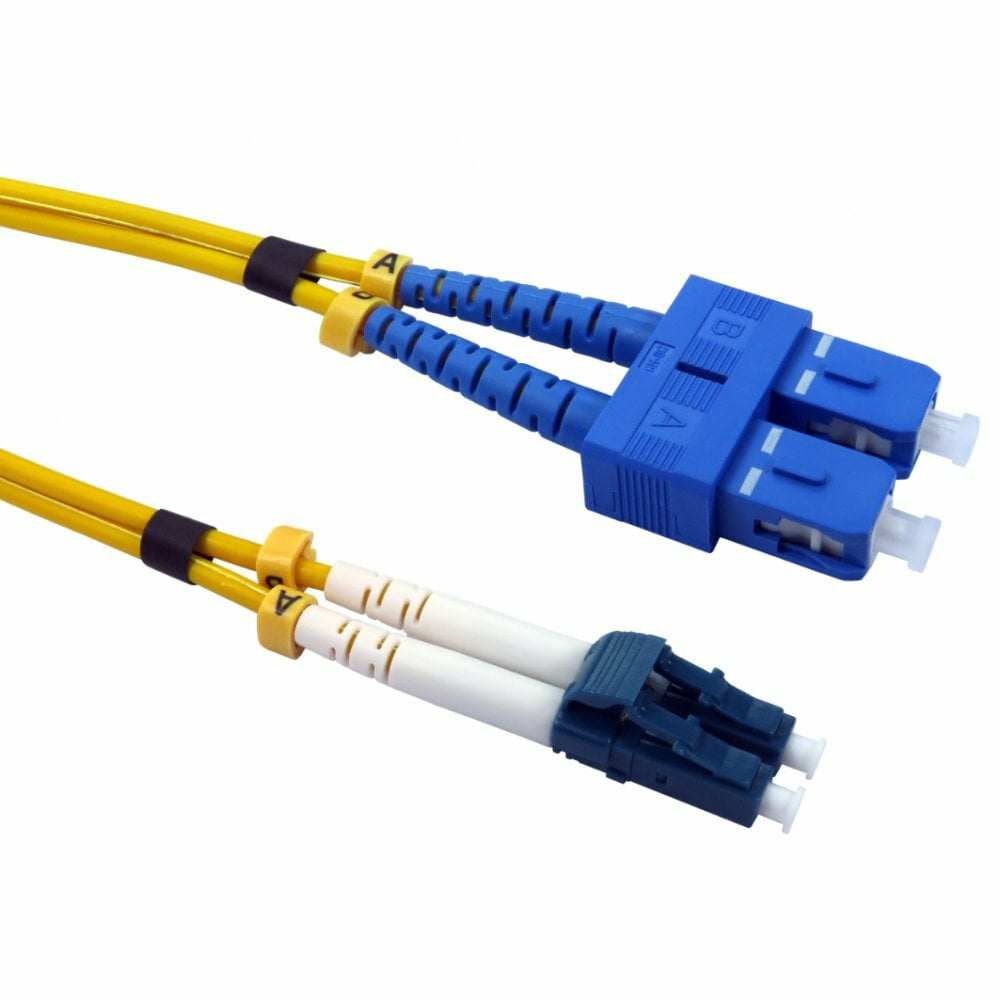

The cables have LC to SC connectors, a yellow Low Smoke Zero Halogen jacket and 9µm fibre core with 125µm cladding.
| Features |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Return loss |
50 dB |
| Insertion loss |
0.3 dB |
| Data transfer rate |
10 Gbit/s |
| Wavelengths supported |
1310,1550 nm |
| Fiber mode structure |
Single-mode |
| Cladding diameter |
125 µm |
| Core diameter |
9 µm |
| Full duplex |
Yes |
| Product colour |
Yellow |
| Connector polish type |
UPC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
SC |
| Connector 1 |
LC |
| Cable shape |
Round |
| Fibre optic type |
OS2 |
| Cable length |
2 m |
| Weight & dimensions |
|---|
| Cable diameter |
3 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
