SKU: FB3M-LCST-010D

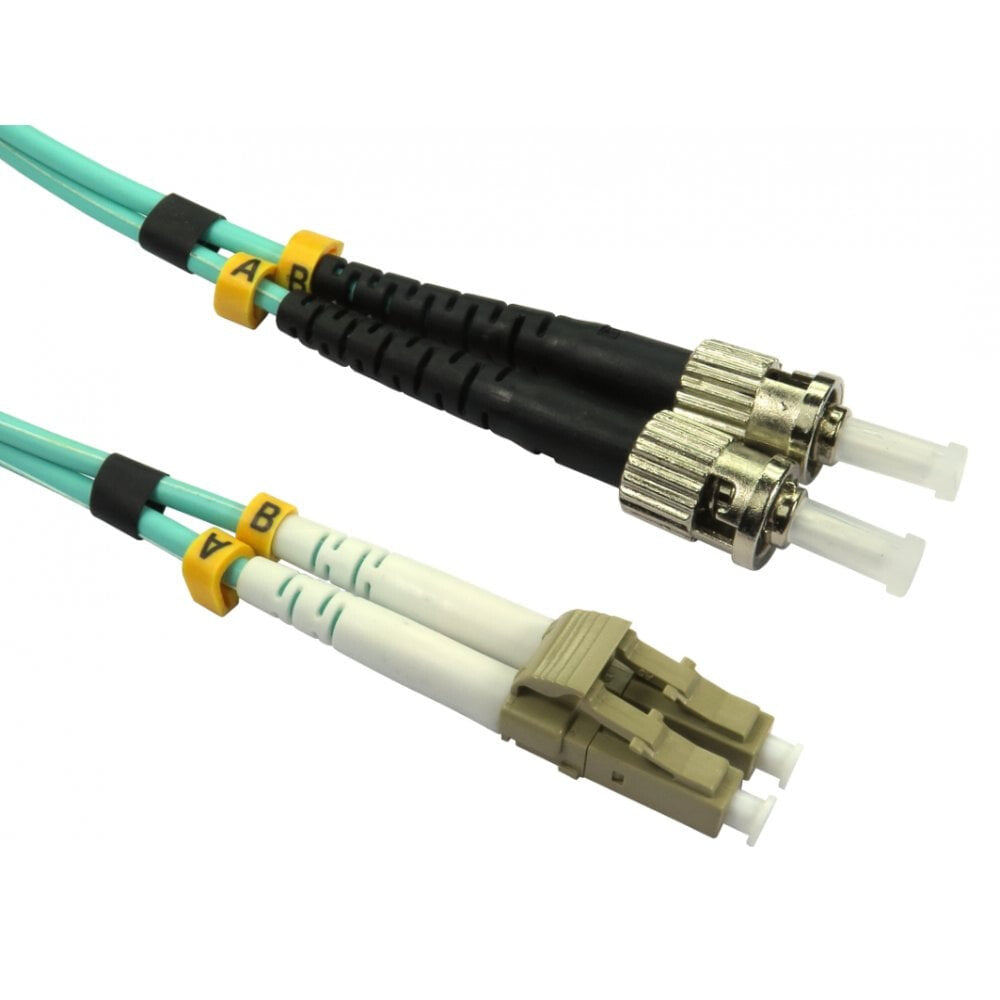

Cables Direct FB3M-LCST-010D InfiniBand/fibre optic cable 1 m LC ST LC/UPC Aqua colour

Cables Direct
£12.94
iFrame
  • LC to ST
  • LC UPC & ST UPC Connectors
  • 50/125µm Duplex
  • Wavelength: 850nm & 1300nm
  • Bandwidth: 1500 / 2000MHz
  • Multi-mode OM3
  • Aqua LSZH jacket
  • Insertion Loss: 35dB
  • Diameter 3.0mm

Our OM3 fibre optic cables are constructed with 50µm core and 125µm cladding and various connectors. The OM3 range offer a higher bandwidth and greater distance over OM2 cables.

Features
Jacket material Low smoke zero halogen (LSZH)
Return loss 35 dB
Insertion loss 0.3 dB
Wavelengths supported 850,1300 nm
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Full duplex Yes
Product colour Aqua colour
Connector 1 gender Male
Connector 2 gender Male
Connector 2 ST
Connector 1 LC
Fibre optic type OM3
Cable type LC/UPC
Cable length 1 m
Weight & dimensions
Cable diameter 3 mm
Packaging content
Quantity per pack 1 pc(s)
