SKU: FB4M-LCLC-005D

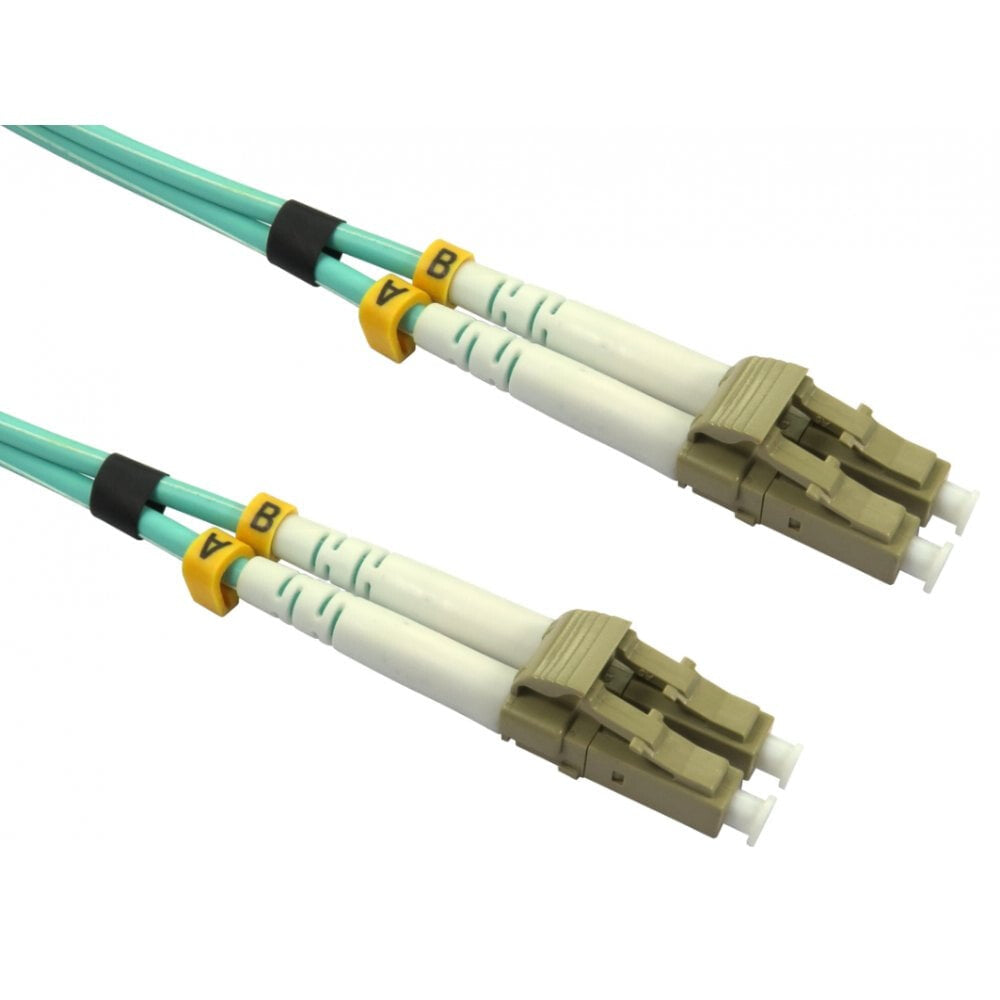

Cables Direct FB4M-LCLC-005D InfiniBand/fibre optic cable 0.5 m LC Aqua colour

Cables Direct
£13.25
iFrame
  • LC to LC
  • LC UPC Connectors
  • 50/125µm Duplex
  • Wavelength: 850nm & 1300nm
  • Bandwidth: 3500 / 4700MHz
  • Multi-mode OM4
  • Aqua LSZH jacket
  • Insertion Loss: <= 0.30dB
  • Return Loss: > 35dB
  • Diameter 3.0mm

Our OM4 fibre optic cables are constructed with 50µm core and 125µm cladding in both LC and SC variations. The OM4 range offer a higher bandwidth and greater distance over OM3 cables.

Features
Jacket material Low smoke zero halogen (LSZH)
Return loss 35 dB
Insertion loss 0.3 dB
Wavelengths supported 850,1300 nm
Fiber mode structure Multi-mode
Cladding diameter 125 µm
Core diameter 50 µm
Product colour Aqua colour
Connector 1 gender Male
Connector 2 gender Male
Connector 2 LC
Connector 1 LC
Fibre optic type OM4
Cable length 0.5 m
Weight & dimensions
Cable diameter 3 mm
