A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.
Compact, modern design and powerful efficiency-driving features

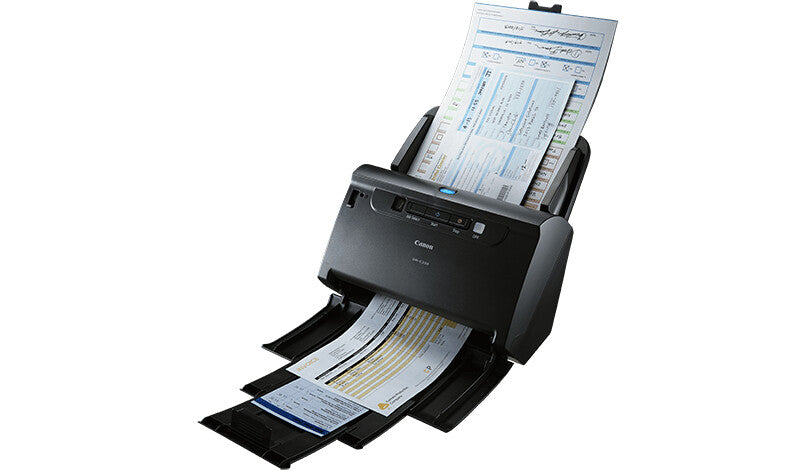

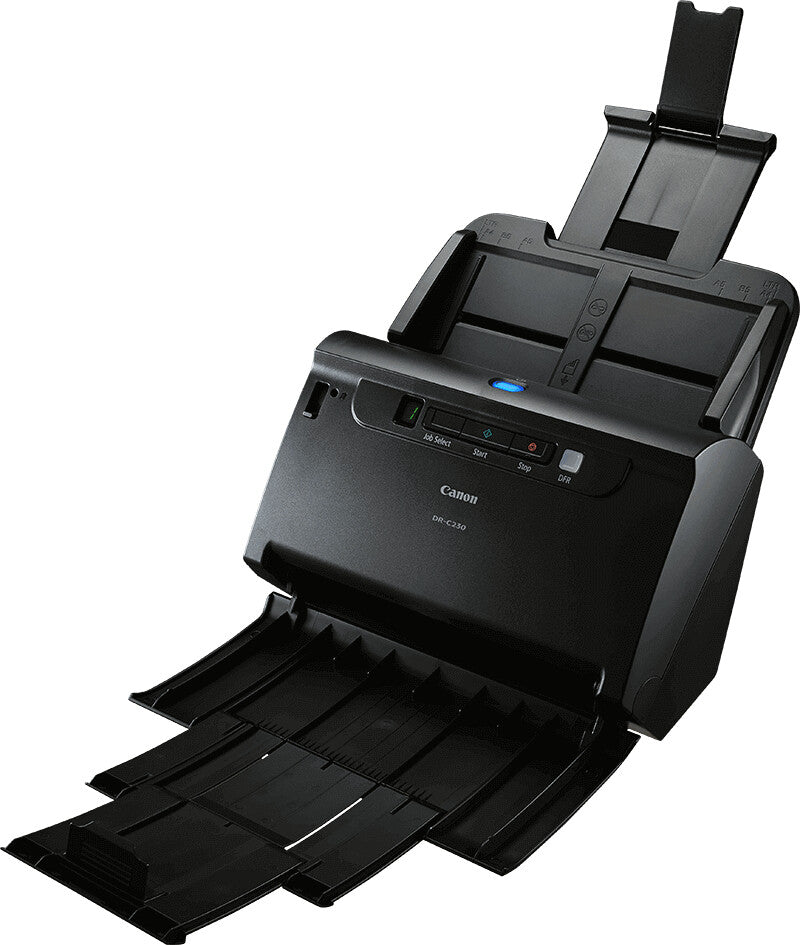

Small stature, big performance – the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats and sizes with ease.
Premium performance
With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.
Class-leading reliability
The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.
Simple, swift scanning
This convenient desktop model allows users to scan with a single button press, and offers useful features such as automatic page size and text direction detection.
Broad software selection
Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.
Cost-effective operation
Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.
| Scanning |
|---|
| Duplex ADF scan speed (b/w, A4) |
60 ipm |
| Duplex ADF scan speed (colour, A4) |
60 ipm |
| ADF scan speed (colour, A4) |
30 ppm |
| ADF scan speed (b/w, A4) |
30 ppm |
| Greyscale levels |
256 |
| Output greyscale depth |
8 bit |
| Output colour depth |
24 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
216 x 3000 mm |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
No |
| Scanner type |
Sheet-fed scanner |
| Performance |
|---|
| Scan drivers |
ISIS, TWAIN |
| Daily duty cycle (max) |
3500 pages |
| Light source |
RGB LED |
| Sensor type |
CMOS CIS |
| Input capacity |
|---|
| Standard input capacity |
60 sheets |
| Paper handling |
|---|
| Maximum scan length |
3 m |
| Maximum scan width |
21.6 cm |
| Media thickness (min) |
0.06 mm |
| Multi feed detection |
Yes |
| Scanning media types supported |
Business Card, Plastic Card |
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 2.0 |
| USB version |
2.0 |
| USB port |
Yes |
| Power |
|---|
| Input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (off) |
0.1 W |
| Power consumption (standby) |
1.4 W |
| Power supply type |
AC |
| Power consumption (typical) |
19 W |
| Weight & dimensions |
|---|
| Weight |
2.8 kg |
| Height |
231 mm |
| Depth |
253 mm |
| Width |
291 mm |
| Packaging content |
|---|
| Cables included |
AC, USB |
| AC adapter included |
Yes |
| General |
|---|
| Product family |
imageFORMULA |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Server operating systems supported |
Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
10 - 32.5 °C |
| Other features |
|---|
| Compliance certificates |
RoHS |
| Scan media weight |
27 - 209 g/m² |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
