Overview

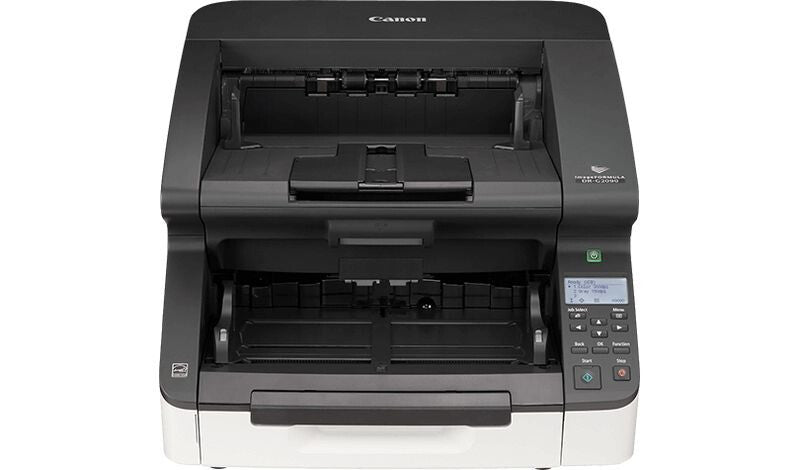

Ultra-fast model takes A3 production scanning to the next level
Optimised for customers who demand exceptional high-speed productivity, superior image quality and dependable feeding performance, this A3 scanner is robust, simple to use and performs quietly
day
Key features
- Ultra-fast scanner - Up to 180 images per minute
- Highly efficient - 30,000 scans per day
- Durable - Robust design
- Superior image quality - Enhanced image processing with Active Thresholding
- CaptureOnTouch Pro - Powerful tools for easy operation
- Reliable and versatile feeding - Scan mixed documents together, with pages being reliably fed into the scanner
- Energy efficient - Consumes low energy while scanning
- Easy connectivity and integration - ISIS/TWAIN/WIA and Kofax VRS Drivers enable integration into various scanning applications
| Scanning | |
|---|---|
| Maximum scan size | 305 x 432 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Duplex ADF scan speed (b/w, A4) | 200 ipm |
| Duplex ADF scan speed (colour, A4) | 200 ipm |
| Design | |
|---|---|
| Scanner type | Sheet-fed scanner |
| Product colour | Black, White |
| Built-in display | Yes |
| Performance | |
|---|---|
| Sensor type | CIS |
| Light source | RGB LED |
| Daily duty cycle (max) | 30000 pages |
| Scanner error detection | Yes |
| Scanning noise level | 54 dB |
| Input capacity | |
|---|---|
| Standard input capacity | 300 sheets |
| Paper handling | |
|---|---|
| Long-paper mode | Yes |
| Maximum ISO A-series paper size | A3 |
| Auto Document Feeder (ADF) media weight | 20 - 209 g/m² |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 66.5 W |
| Power consumption (standby) | 3.5 W |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 220 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 480 mm |
| Depth | 569 mm |
| Height | 315 mm |
| Weight | 25 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 50 - 95 °F |
