Productive, ultra-compact scanner ideal for reliable paper-intensive scanning.

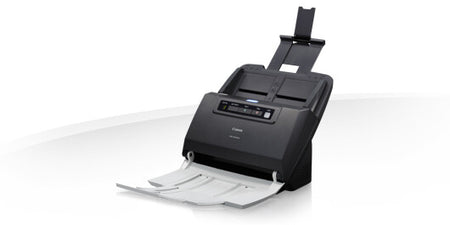

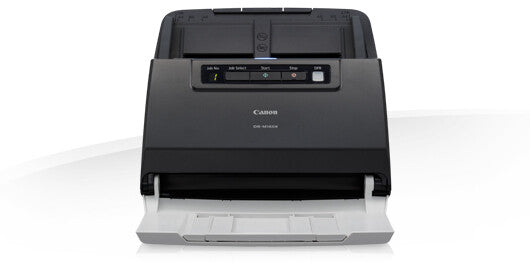

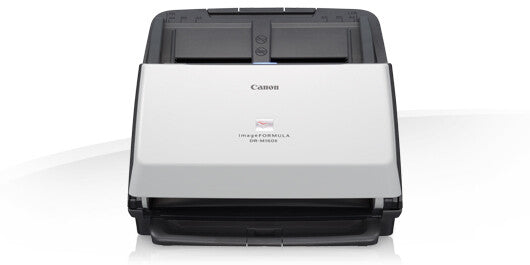

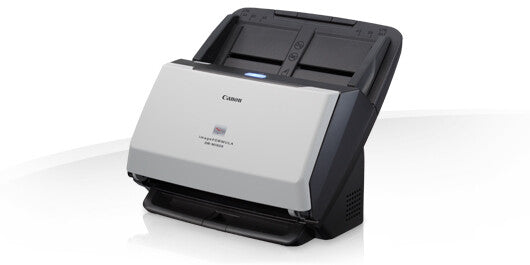

The imageFORMULA DR-M160II is a productivity-boosting desktop scanner. With a robust design, fast speed and reliable media handling, it is ideal for paper-intensive scanning.
Benefits
- Class-leading colour scanning speeds of up to 120ipm
- Robust design to handle up to 7,000 scans/day
- Windows, Mac and Linux compatible
- Compactly built and highly productive
- Supreme paper-handling reliability includes paper separation retry
| Scanning |
|---|
| Black/white scanning colour modes |
Grayscale |
| Duplex ADF scan speed (b/w, A4) |
120 ipm |
| Duplex ADF scan speed (colour, A4) |
120 ipm |
| ADF scan speed (colour, A4) |
60 ppm |
| ADF scan speed (b/w, A4) |
60 ppm |
| Greyscale levels |
256 |
| Film scanning |
No |
| Output greyscale depth |
8 bit |
| Output colour depth |
24 bit |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Optical scanning resolution |
600 x 600 DPI |
| Maximum scan size |
216 x 3000 mm |
| Design |
|---|
| Product colour |
Black |
| Built-in display |
No |
| Scanner type |
Sheet-fed scanner |
| Performance |
|---|
| Scan drivers |
ISIS, TWAIN |
| Daily duty cycle (max) |
7000 pages |
| Light source |
RGB LED |
| Sensor type |
CMOS CIS |
| Input capacity |
|---|
| Standard input capacity |
60 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 2.0 |
| USB version |
2.0 |
| USB port |
Yes |
| Power |
|---|
| Input voltage |
100-240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (off) |
0.5 W |
| Power consumption (standby) |
1.8 W |
| Power supply type |
AC |
| Power consumption (typical) |
27 W |
| Weight & dimensions |
|---|
| Weight |
3.2 kg |
| Height |
366.4 mm |
| Depth |
606 mm |
| Width |
280 mm |
| Packaging content |
|---|
| Bundled software |
CapturePerfectCaptureOnToucheCopy PDF Pro OfficeKofax VRS (with AIPE)Plug-in: EMC Captiva Cloud Runtime Controls |
| Drivers included |
Yes |
| General |
|---|
| Product family |
imageFORMULA |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Other features |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
