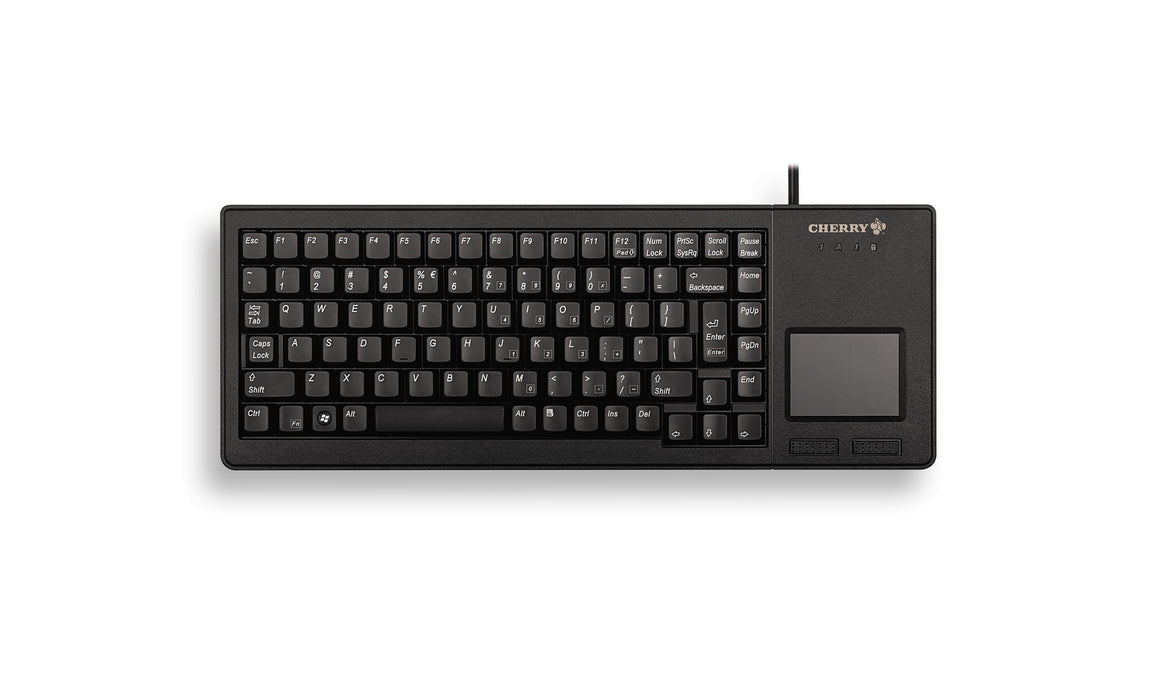

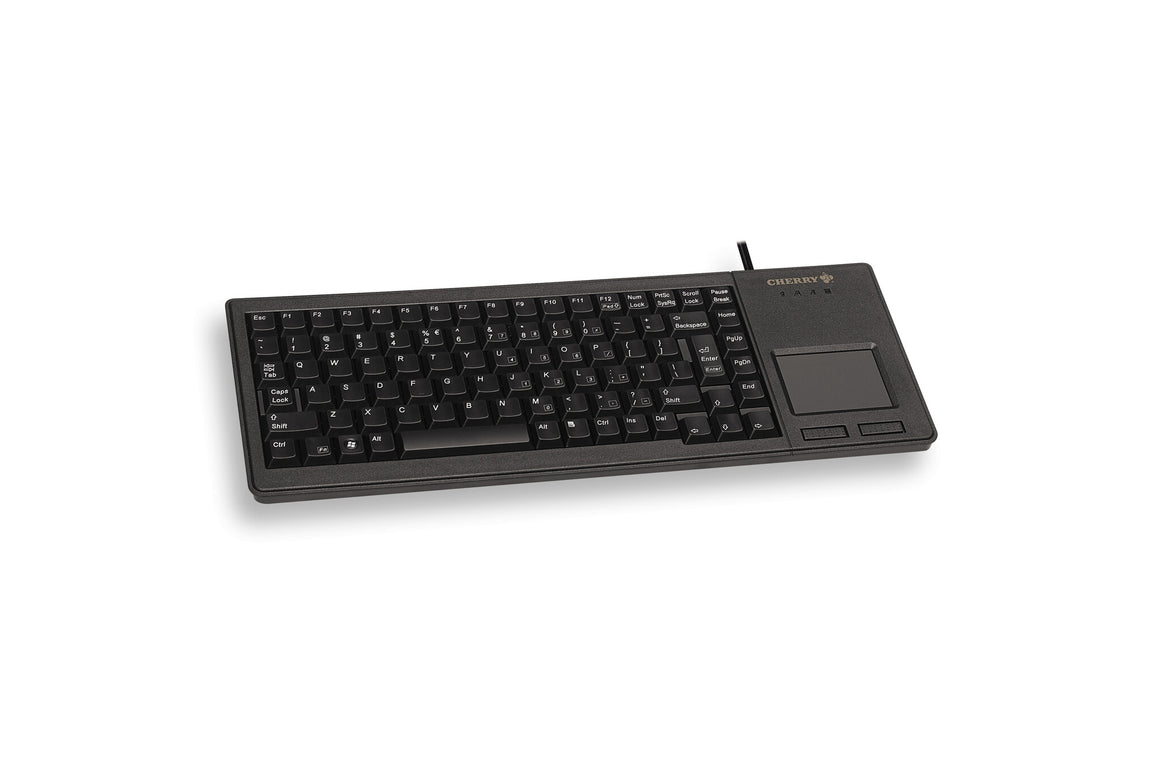

The "XS Touchpad Keyboard" (G84-5500) combines comfortable mouse control with compact dimensions. The mouse can be controlled easily and precisely via the large touchpad with two mouse keys.
- High-quality touchpad with two mouse buttons for convenient control of the cursor
- High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
- Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
- Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
- Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
- Lightweight - for applications where every gram counts counts
| Keyboard |
|---|
| Certification |
cURus, c-tick, VCCI, CE, FCC, VDE, BSMI |
| Fingerprint reader |
No |
| Purpose |
Universal |
| USB hub |
No |
| Programmable hot keys |
Yes |
| Windows keys |
Yes |
| Keyboard keys operating life |
20 million characters |
| Keyboard number of keys |
89 |
| Numeric keypad |
No |
| Keyboard form factor |
Full-size (100%) |
| Pointing device |
Touchpad + mouse buttons |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Keyboard key switch |
Mechanical |
| Device interface |
USB |
| Connectivity technology |
Wired |
| Recommended usage |
Universal |
| Design |
|---|
| Surface coloration |
Monochromatic |
| Product colour |
Black |
| Adjustable keyboard height |
Yes |
| Wrist rest |
No |
| Ergonomic design |
No |
| Keyboard style |
Straight |
| Backlight |
No |
| Features |
|---|
| Plug and Play |
Yes |
| Cable length |
2.5 m |
| Power |
|---|
| Power consumption |
35 mA |
| Power source type |
USB |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| General |
|---|
| Product family |
XS |
| Weight & dimensions |
|---|
| Keyboard weight |
540 g |
| Keyboard dimensions (WxDxH) |
374 x 139 x 20 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
670 g |
| Package height |
33 mm |
| Package depth |
196 mm |
| Package width |
393 mm |
| Packaging content |
|---|
| User guide |
Yes |
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Master (outer) cases per pallet |
12 pc(s) |
| Products per pallet |
252 pc(s) |
| Products per master (outer) case |
21 pc(s) |
| Harmonized System (HS) code |
84716060 |
