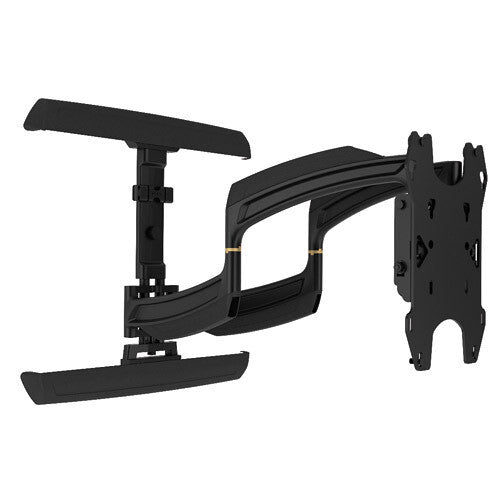

A lightweight, low-profile full-motion wall mount for TVs 30-52”. Easily installs with one person by mounting the top rail and sliding on the assembly.

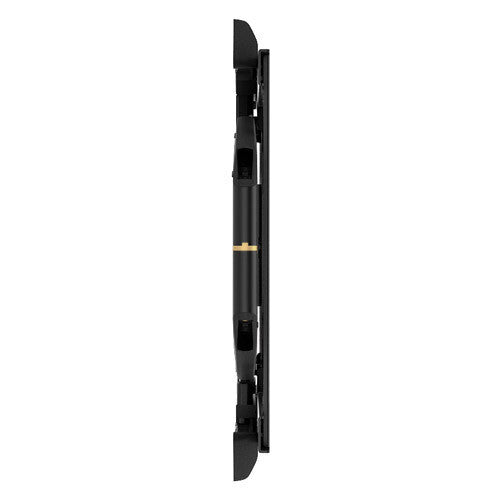

- Ultra Low Profile Sleek design collapses to 1.3” (33 mm), providingan ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 25” (635 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 15° of effortless fingertip tilt toachieve optimal viewing angles.
- Centerless™ Lateral Shift Post-installation lateral shift allows up to 16”(406 mm) of adjustment for limitless centering capability.
- Integrated Cable Management Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
| Mounting |
|---|
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
132.1 cm (52") |
| Minimum screen size |
76.2 cm (30") |
| Maximum weight capacity |
34 kg |
| Ergonomics |
|---|
| Tilt angle range |
15 - -15° |
| Design |
|---|
| Certification |
UL |
| Housing material |
Metal |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
437 mm |
| Depth |
33 mm |
| Width |
749 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Other features |
|---|
| Pivot |
-90 - 90 |
