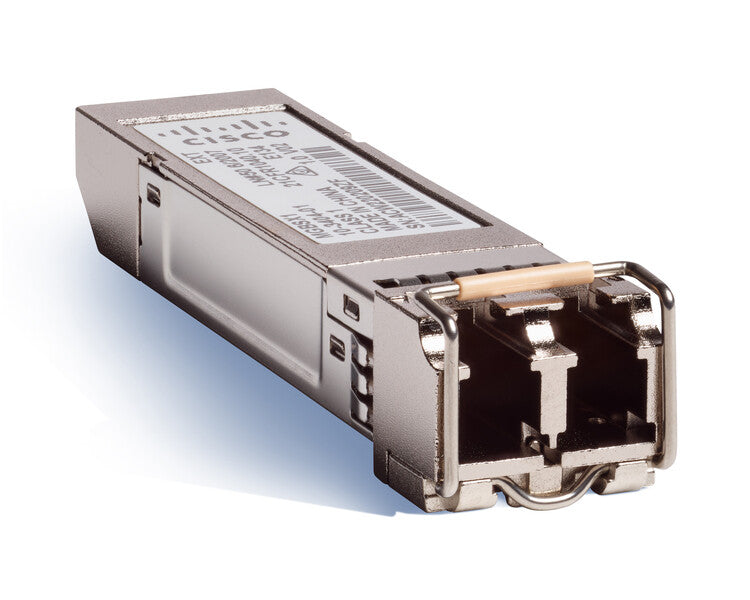

The Cisco 1000BASE-SX SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.
| Performance |
|---|
| Fiber ports quantity |
2 |
| Auto MDI/MDI-X |
No |
| Networking standards |
IEEE 802.3z |
| Wavelength |
850 nm |
| Maximum transfer distance |
10000 m |
| SFP transceiver standard |
SX |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Power |
|---|
| Power consumption (typical) |
1.5 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
75 g |
| Height |
8.5 mm |
| Depth |
56.5 mm |
| Width |
13.4 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
90.7 g |
| Package height |
44.5 mm |
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Logistics data |
|---|
| Country of origin |
China |
| Harmonized System (HS) code |
85369010 |
