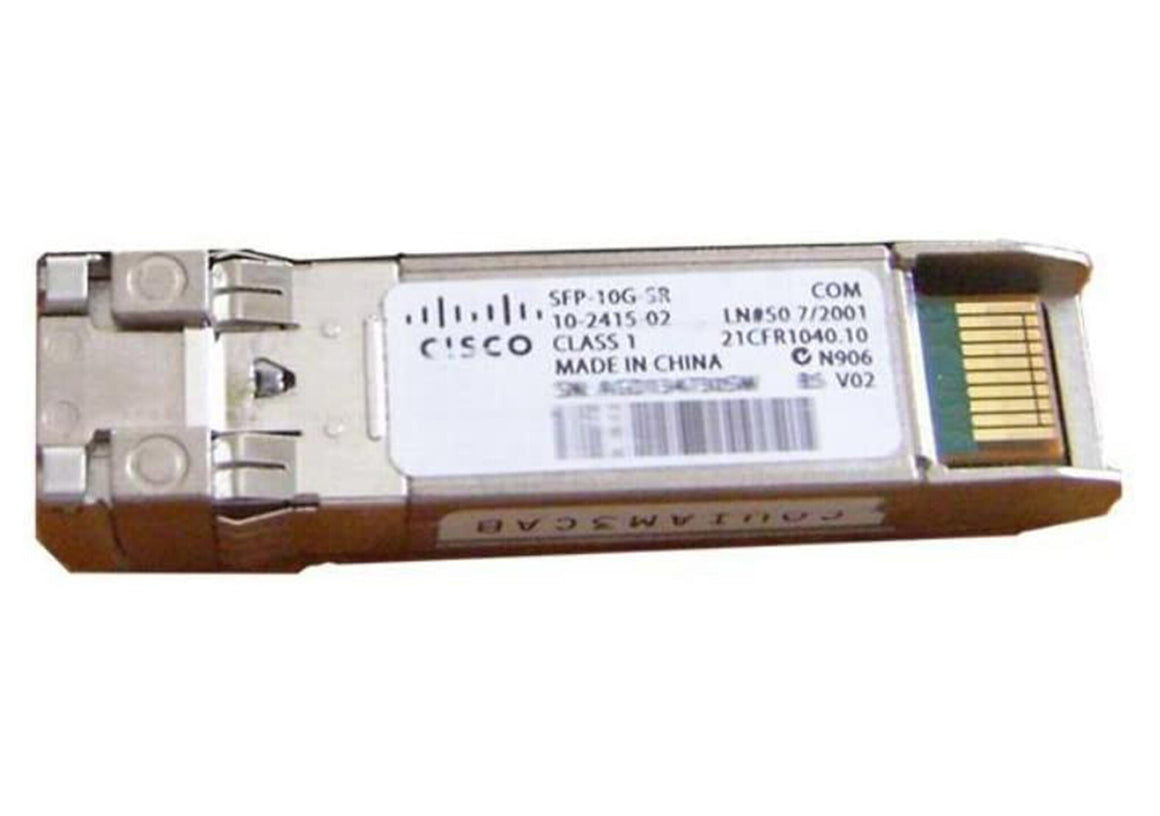

Cisco 10GBASE-SR S-Class SFP Module for 10 Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR-S=)

SKU: SFP-10G-SR-S=
£304.68 inc. VAT
  • LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fiber; up to 300 m link lengths possible using OM3 and 400 m using OM4 (this model does not support Fiber Channel over Ethernet [FCoE])
  • COMPACT: Industry-smallest 10G form factor for greatest density per chassis
  • HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
  • VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
  • PEACE OF MIND: 5-year standard replacement warranty

The Cisco 10GBASE-SR-S SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

Performance
Auto MDI/MDI-X Yes
Duplex system Full
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u
Cabling technology 10GBASE-SR
Wavelength 850 nm
SFP transceiver standard SR
Fiber optic connector LC, PC
Multi-mode fiber (MMF) supported Yes
Interface type SFP+
Maximum data transfer rate 10000 Mbit/s
SFP transceiver type Fiber optic
Features
Hot-Plug support Yes
Certificates
Certification MSA
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Height 8.5 mm
Depth 56.5 mm
Width 13.4 mm
Packaging content
Quantity per pack 1 pc(s)
Packaging data
Package weight 90.7 g
Package height 44.5 mm
Package depth 158.8 mm
Package width 143 mm
Logistics data
Country of origin China
Harmonized System (HS) code 85369010
