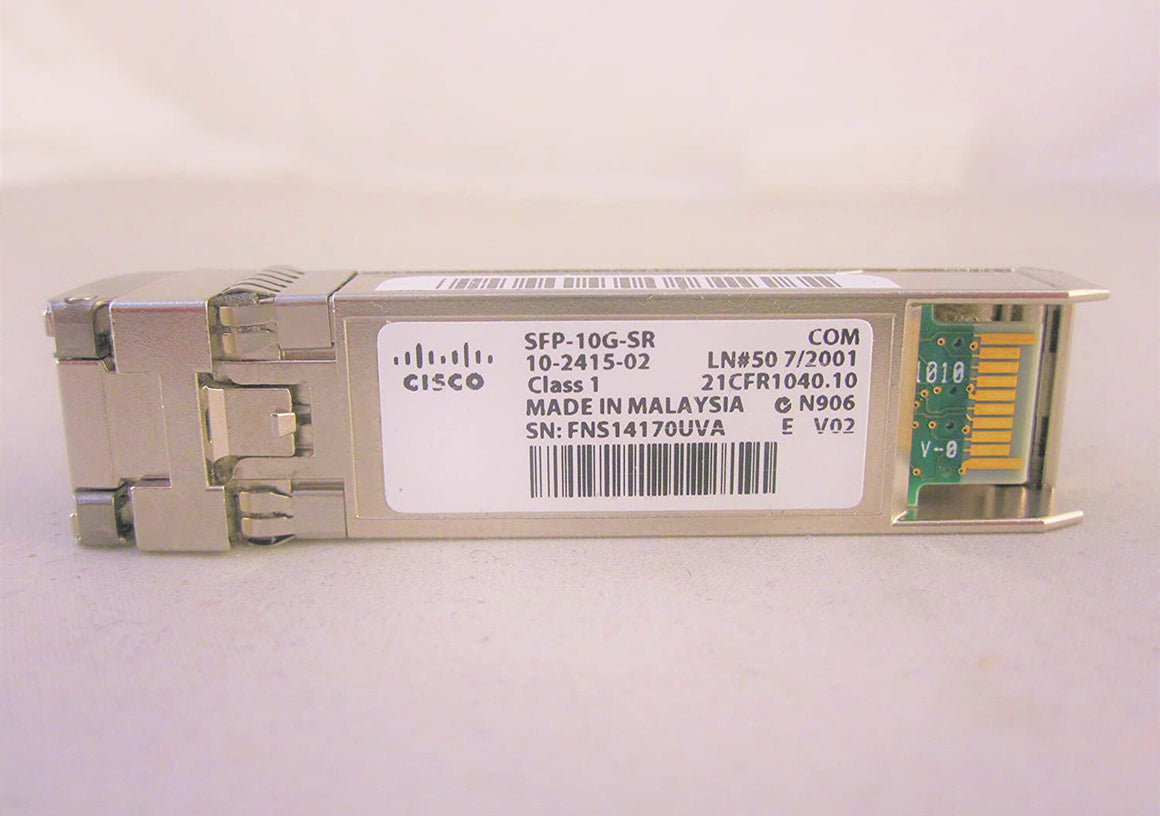

Cisco 10GBASE-SR SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-SR=)

SKU: SFP-10G-SR=

£449.27 inc. VAT

LINK LENGTH: Supports link lengths of 26 m on standard FDDI-grade multimode fibre; up to 300 m link lengths possible using Optical Multimode 3 (OM3) and 400 m using Optical Multimode 4 (OM4)
COMPACT: Industry-smallest 10G form factor for greatest density per chassis
HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
PEACE OF MIND: 5-year standard replacement warranty

The Cisco 10GBASE-SR SFP Module delivers a wide variety of 10-Gigabit Ethernet connectivity options for data centre, enterprise server room and service provider transport applications. This hot-swappable input/output transceiver plugs into an Ethernet Enhanced Small Form-factor Pluggable (SFP+) port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.

Performance
Wavelength	850 nm
Maximum transfer distance	300 m

Features
Hot-swap	Yes

Ports & interfaces
Connectivity technology	Wired

Weight & dimensions
Weight	75 g
Height	8.5 mm
Depth	56.5 mm
Width	13.4 mm

Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 70 °C

Packaging data
Package weight	90.7 g
Package height	44.5 mm
Package depth	158.8 mm
Package width	143 mm

Logistics data
Country of origin	China
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85176990

Other features
Fiber type	MMF
Interface	SFP
Connector(s)	LC/PC
