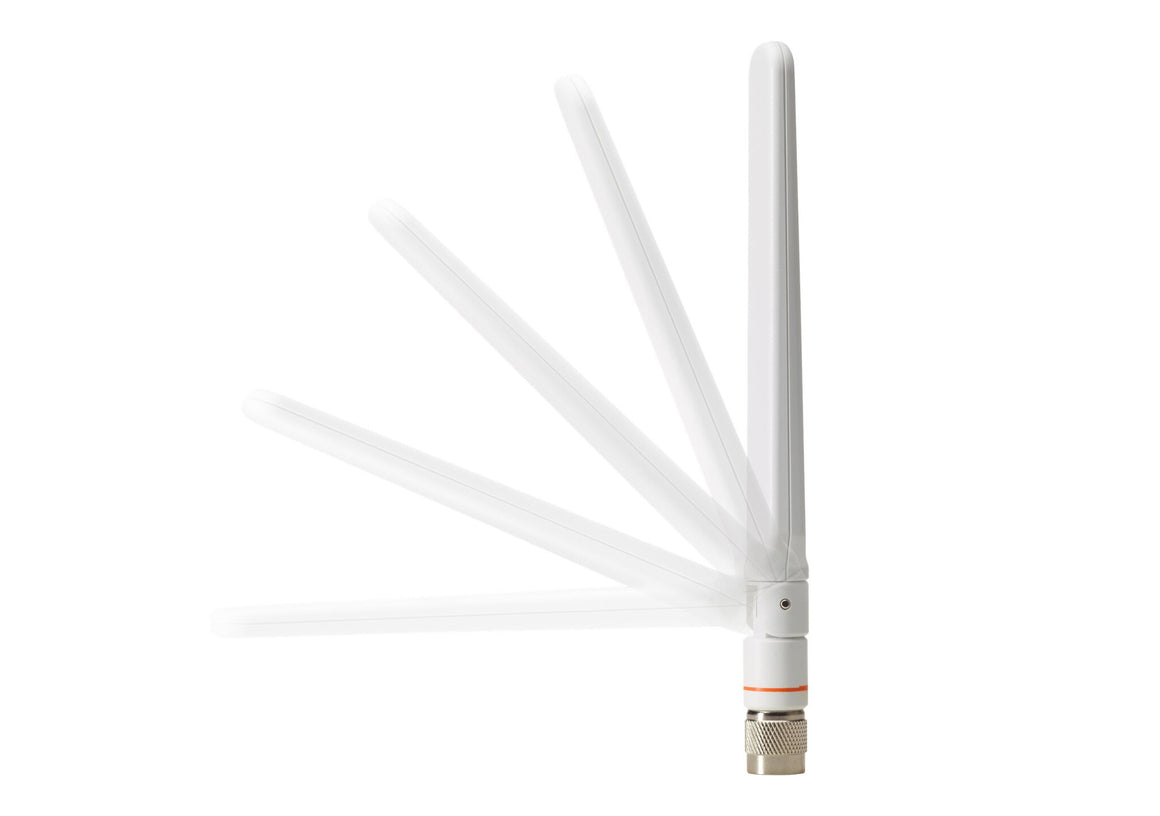

The Cisco Aironet AIR-ANT2524DW-RS= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved performance in mind. It provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions is required. This FCC-approved omnidirectional antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.
| Performance |
|---|
| Horizontal beam width (5 GHz) |
39° |
| Horizontal beam width (2.4 GHz) |
63° |
| Impedance |
50 Ω |
| Antenna gain (2.4 GHz) |
2 dBi |
| Antenna gain (5 GHz) |
4 dBi |
| Frequency band |
2.4/5 GHz |
| Antenna gain level (max) |
4 dBi |
| Features |
|---|
| Compatible products |
Cisco Catalyst 9115AX, 9120AX, 9130AX |
| Purpose |
Indoor |
| Product colour |
White |
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Polarization |
Dual polarization |
| Antenna connector type |
RP-TNC |
| Connector gender |
Male |
| Antenna type |
Omni-directional antenna |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-20 - 60 °C |
| Packaging data |
|---|
| Package weight |
108.84 g |
| Package height |
49.3 mm |
| Package depth |
184.2 mm |
| Package width |
152.4 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Country of origin |
Malaysia |
