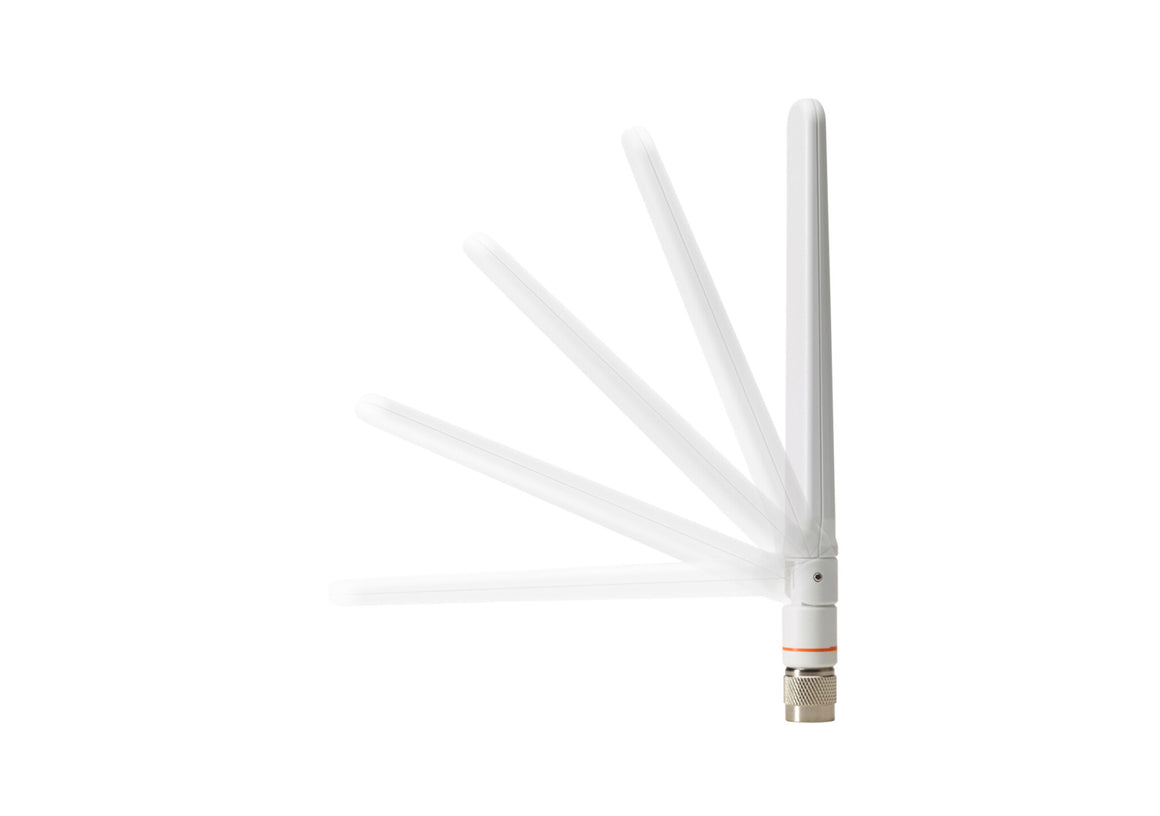

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 2 dBi (2.4 GHz)/4 dBi (5 GHz), White Dipole (1 Port), RP-TNC Connector, 1-Year Limited Hardware Warranty (AIR-ANT2524DW-R=)

SKU: AIR-ANT2524DW-R=

£42.35 inc. VAT

OMNIDIRECTIONAL WI-FI ANTENNA: 2 dBi (2.4 GHz)/4 dBi (5 GHz); white dipole (1 port); for use with Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series access points
CONNECTION AND MOUNT: RP-TNC connector
360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
PERFORMANCE: Designed for improved coverage
PEACE OF MIND: 1-year limited hardware warranty

The Cisco Aironet AIR-ANT2524DW-R= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.

Performance
Horizontal beam width (5 GHz)	39°
Horizontal beam width (2.4 GHz)	63°
Impedance	50 Ω
Antenna gain (2.4 GHz)	2 dBi
Antenna gain (5 GHz)	4 dBi
Frequency band	2.4/5 GHz
Antenna gain level (max)	4 dBi

Features
Purpose	Indoor
Product colour	Grey
Voltage Standing Wave Ratio (VSWR)	2:1
Antenna connector type	RP-TNC
Connector gender	Male
Antenna type	Omni-directional antenna

Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-20 - 60 °C

Weight & dimensions
Weight	38.5 g
Depth	168.5 mm
Width	21 mm

Packaging data
Package weight	136.05 g
Package height	49.3 mm
Package depth	184.2 mm
Package width	152.4 mm

Packaging content
Quantity per pack	1 pc(s)

Logistics data
Country of origin	China
Harmonized System (HS) code	85177100

Other features
Frequency range	2.4 - 2.5GHz, 5.15 - 5.85GHz
