SKU: CBS110-24PP-UK

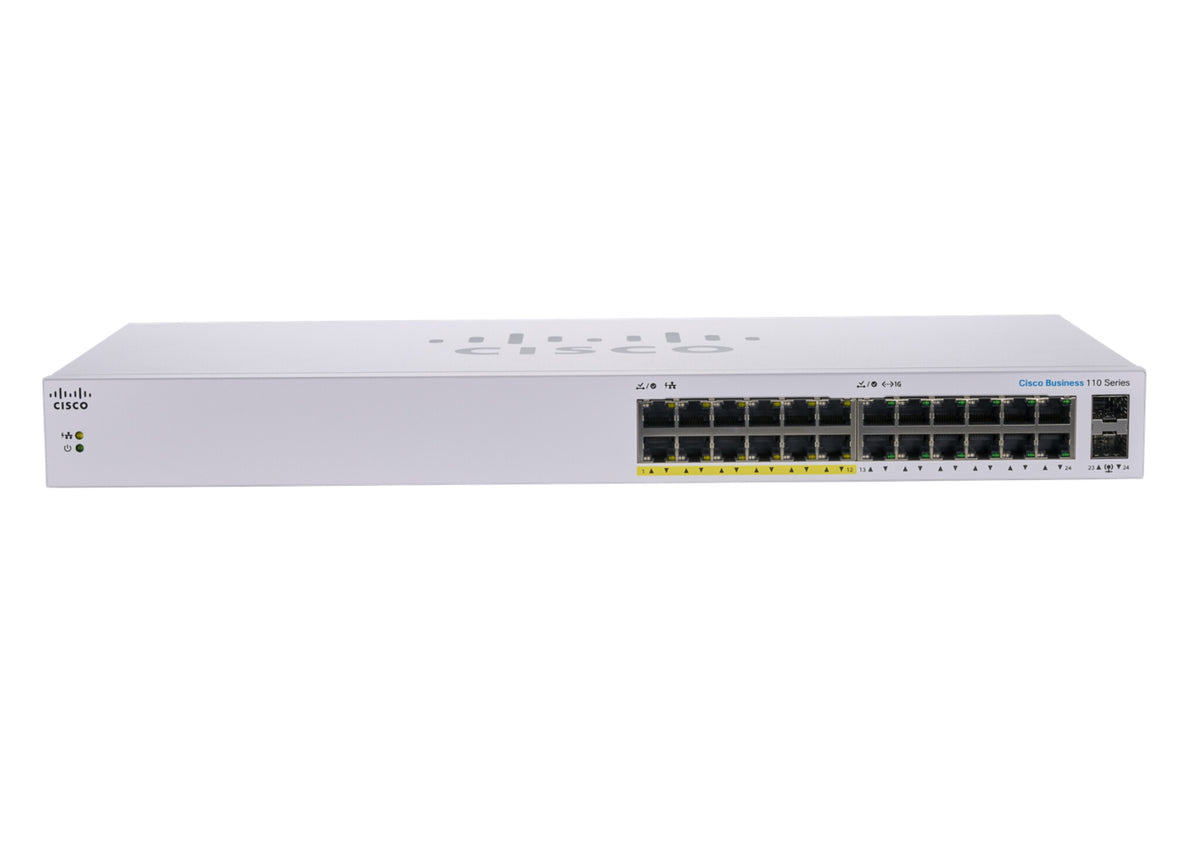

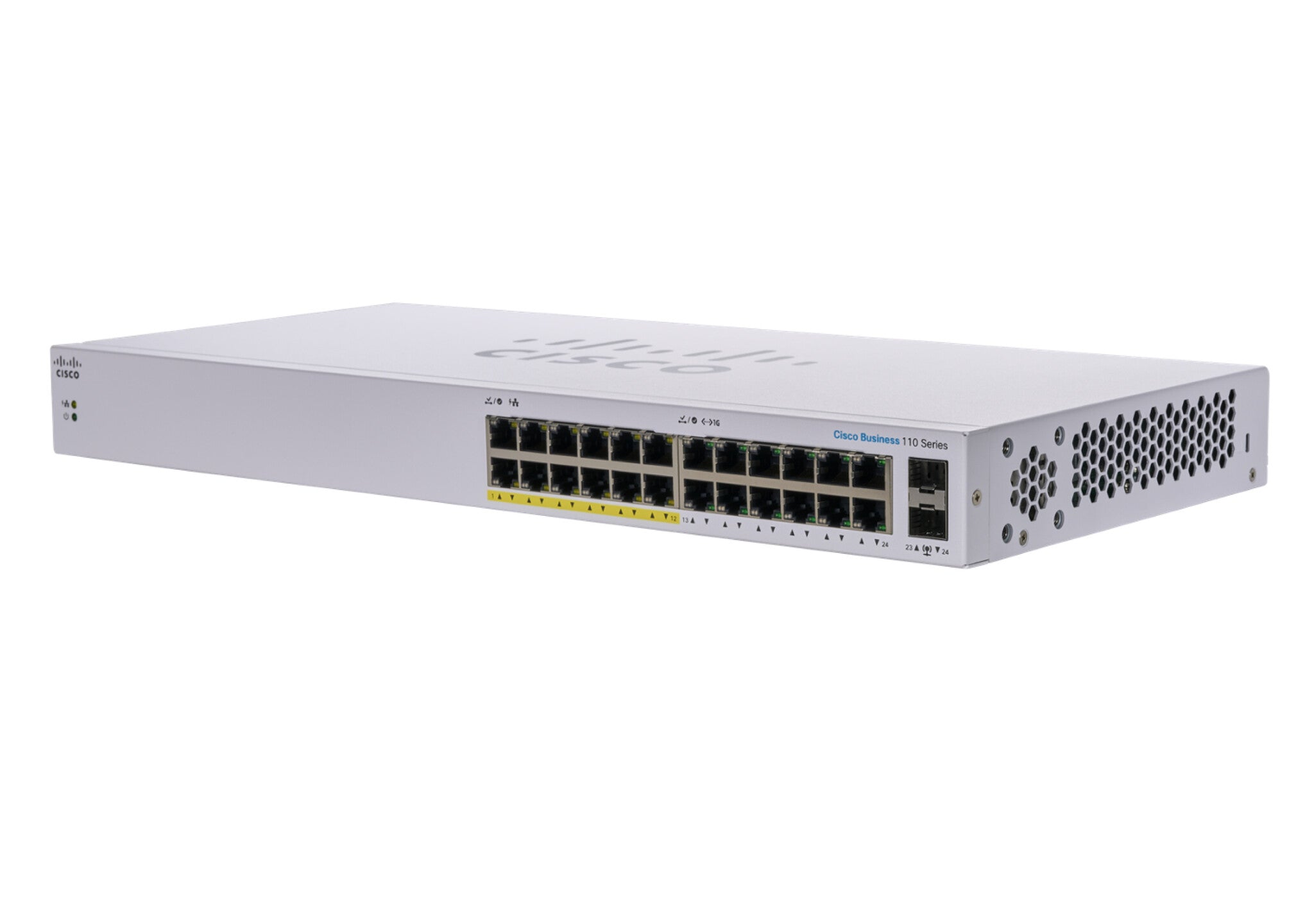

Cisco Business CBS110-24PP-D Unmanaged Switch | 24 Port GE | Partial PoE | 2x1G SFP Shared | Limited Lifetime Protection (CBS110-24PP-D)

£248.32

SWITCH PORTS: 24 -Port 10/100/1000 + 2 x 1GE SFP (Shared)
SIMPLE: Plug-and-play without a need for IT know-how or support.

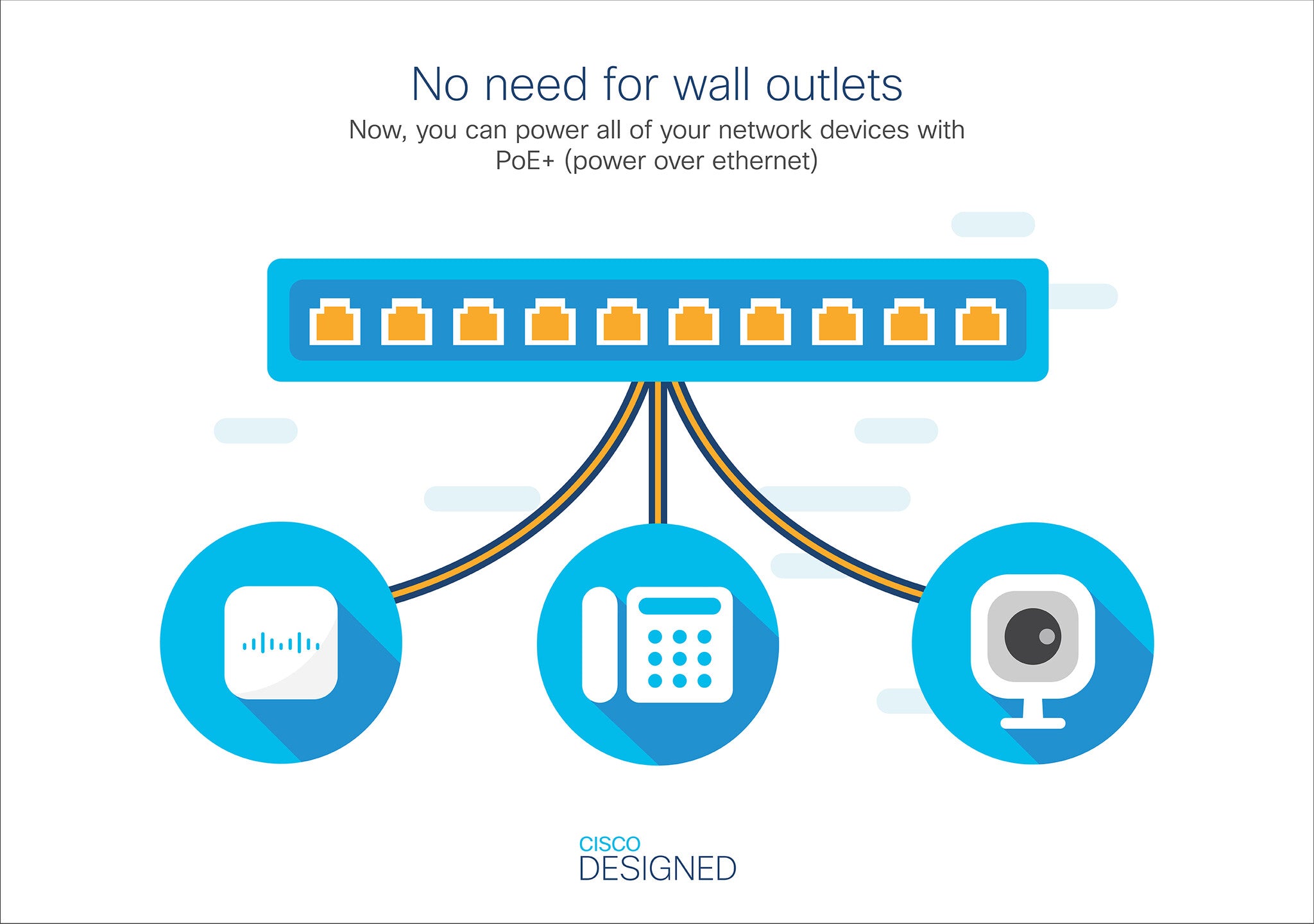

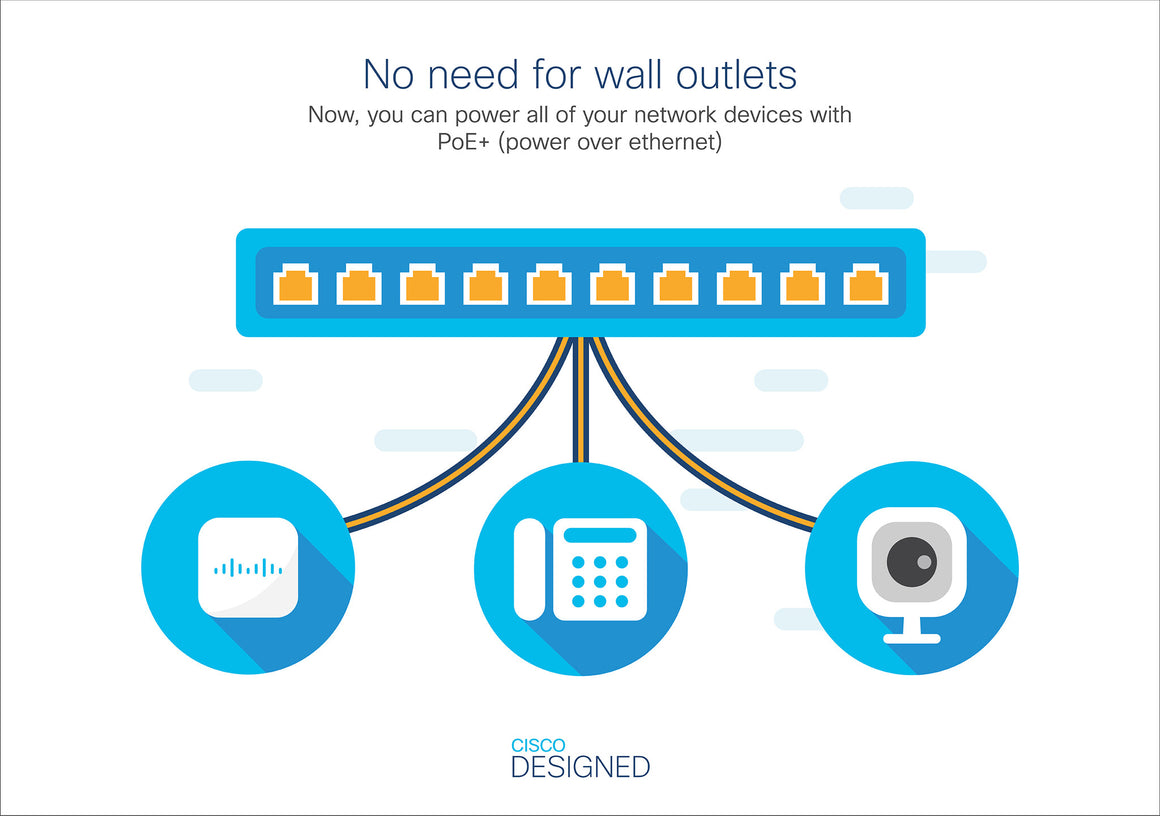

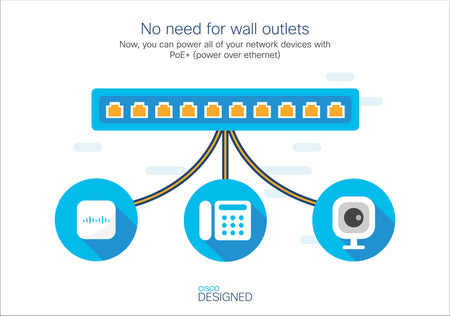

POWER-OVER-ETHERNET: 12 PoE ports with 100W total power budget
PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

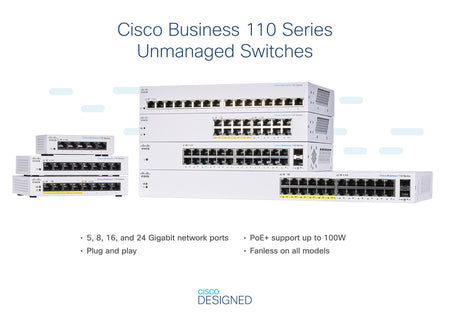

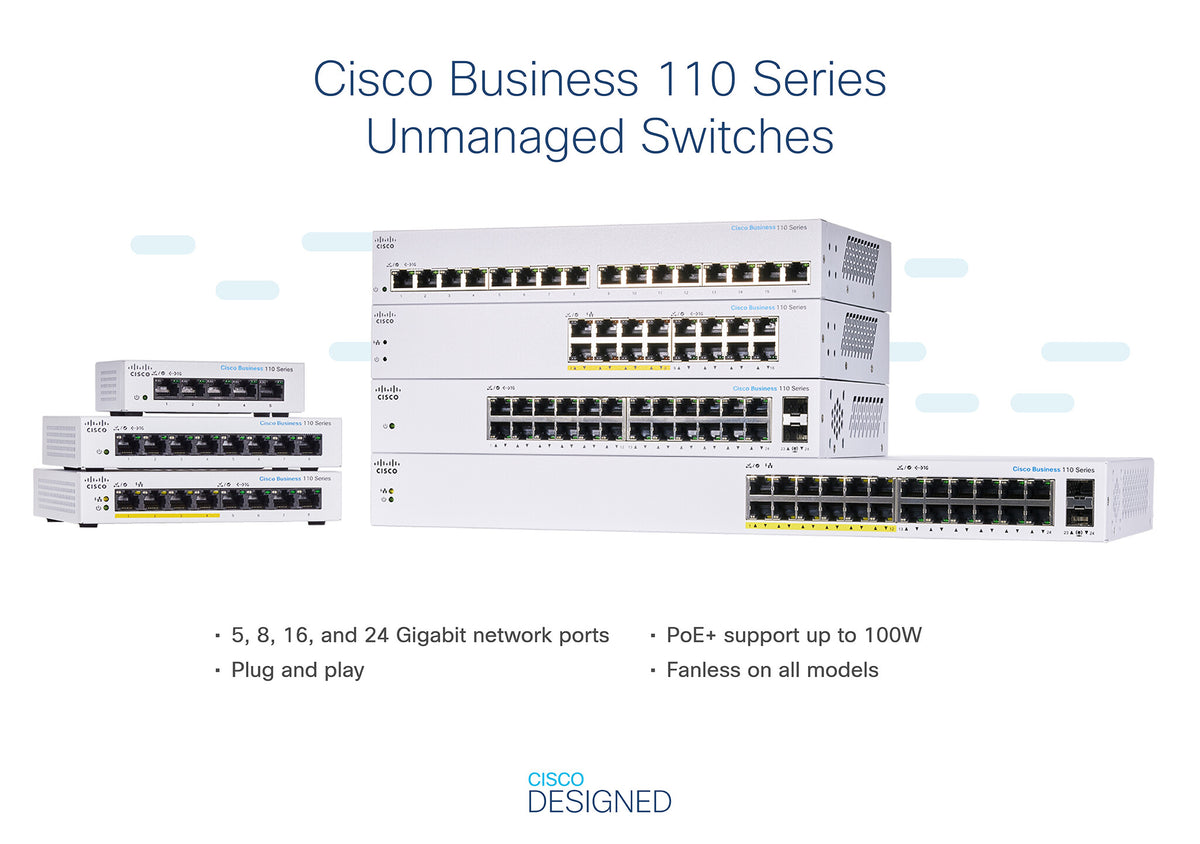

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Management features
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Unmanaged

Ports & interfaces
Combo SFP ports quantity	4
Gigabit Ethernet (copper) ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24

Network
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Head-of-line (HOL) blocking	Yes
Full duplex	Yes
Half duplex	Yes
Cable types supported	Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
10G support	No
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission
Jumbo frames	9216
Jumbo frames support	Yes
Forwarding rate	35.7 Mpps
Switching capacity	48 Gbit/s
MAC address table	8192 entries

Security
Queue scheduling algorithms	Weighted Round Robin (WRR)
Loop protection	Yes

Design
Market segment	Business
LED indicators	Yes
Product colour	Grey
Form factor	1U
Rack mounting	Yes

Performance
Mean time between failures (MTBF)	340703 h
Flash memory	8 MB
Internal memory	64 MB
Processor frequency	400 MHz
Built-in processor	Yes

Power
Power plug type	Type C
Power saving mode (EEE)	Yes
AC input frequency	50 Hz
AC input voltage	100 - 240 V
Power supply location	Internal
Power supply included	Yes

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	100 W
Power over Ethernet (PoE) ports quantity	12
Power over Ethernet (PoE)	Yes

Other features
Diagnostics	Cable diagnostics
Packaging content	Switch, Power cord or adapter, Mounting hardware and Quick Start Guide

Operational conditions
Heat dissipation	462.93 BTU/h
Storage relative humidity (H-H)	5 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C

Weight & dimensions
Weight	3.03 kg
Height	43.9 mm
Depth	439.9 mm
Width	202.4 mm

Packaging content
Manual	Yes
Quick start guide	Yes

Packaging data
Package weight	4.49 kg
Package height	105.9 mm
Package depth	537 mm
Package width	320 mm

Sustainability
Sustainability compliance	Yes

Technical details
Products per shipping (inner) case	1 pc(s)

Certificates
Certification	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Compliance certificates	CE

Logistics data
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85176990
Country of origin	China
Quantity per pack	1 pc(s)
