SKU: CBS110-5T-D-UK

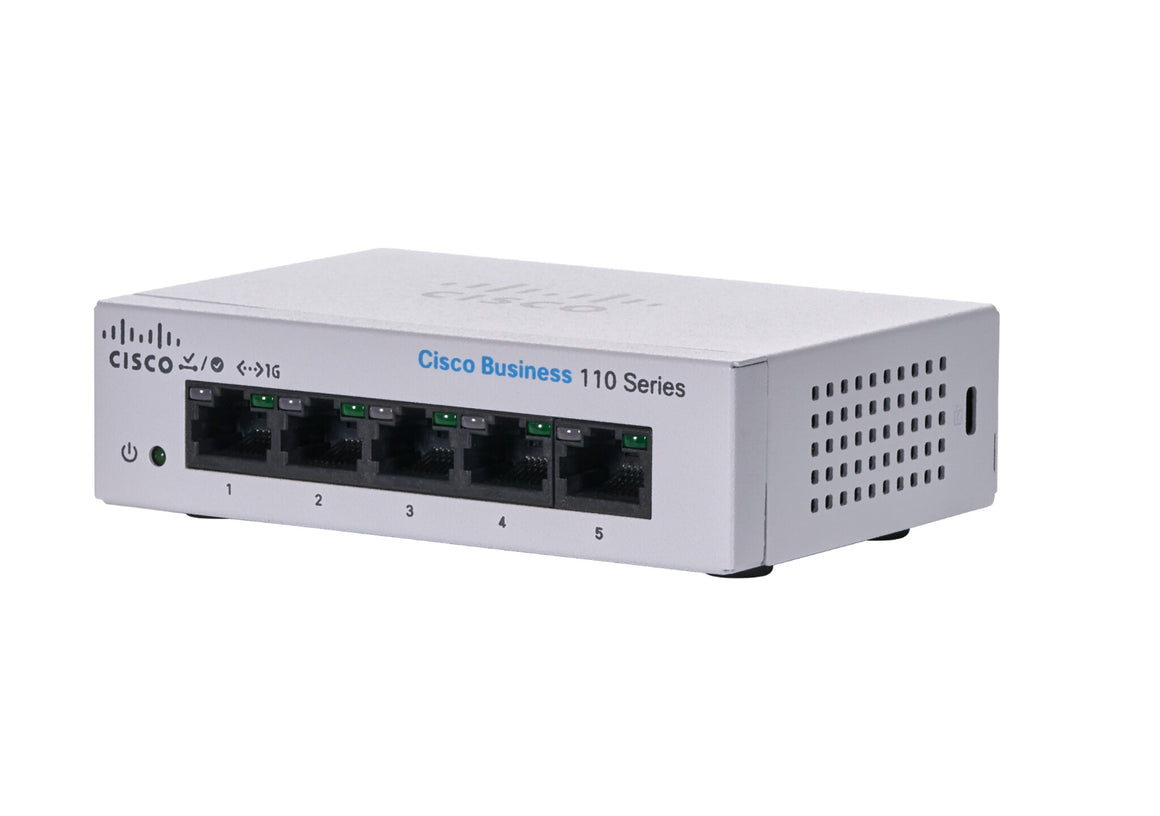

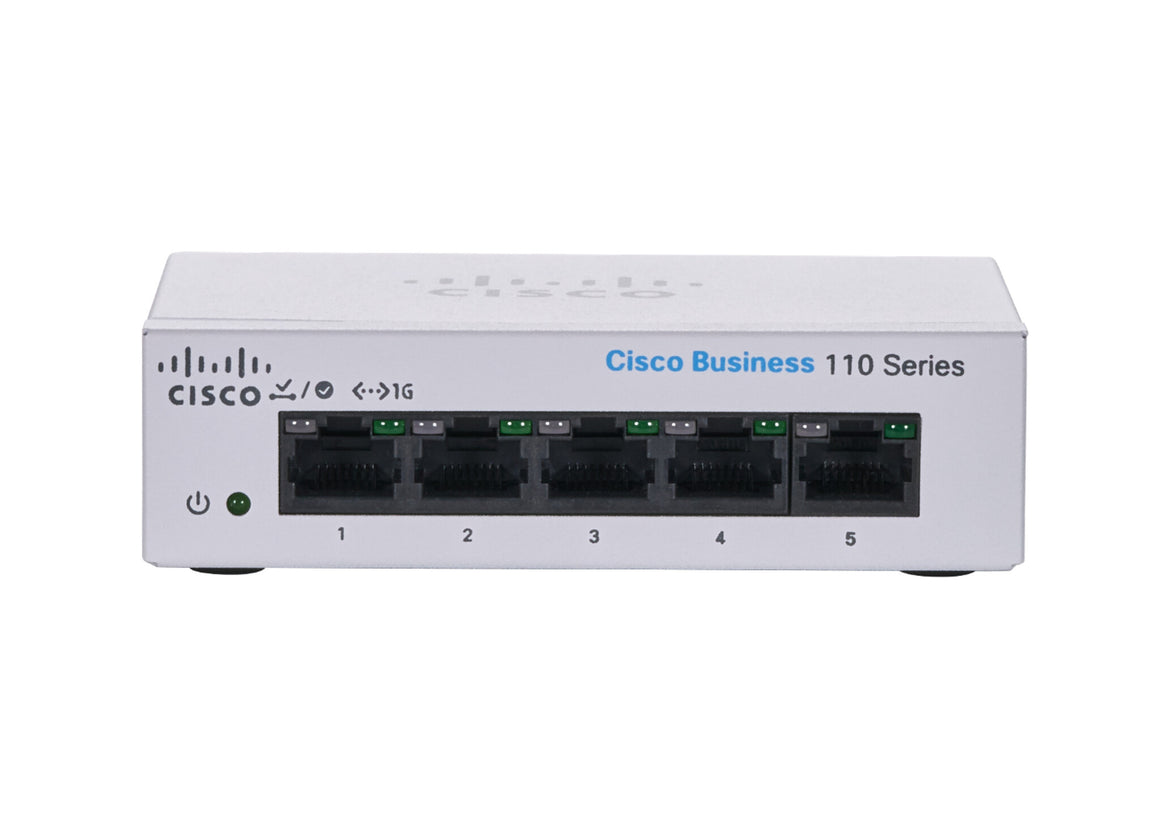

Cisco Business CBS110-5T-D Unmanaged Switch | 5 Port GE | Desktop | Ext PS | Limited Lifetime Protection (CBS110-5T-D)

Cisco
£40.22
  • SWITCH PORTS: 5 -Port 10/100/1000
  • SIMPLE: Plug-and-play without a need for IT know-how or support.
  • FLEXIBLE: Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
  • PERFORMANCE: Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
  • INNOVATIVE DESIGN: Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
  • ENERGY EFFICIENT: Optimizes power usage to lower operational cost. Compliant with IEEE802.3az Energy Efficient Ethernet. Fanless in all models
  • PEACE OF MIND: Limited-lifetime warranty with return to factory replacement and one-year technical support

The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network.

Management features
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Unmanaged
Ports & interfaces
Combo SFP ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto MDI/MDI-X Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Flow control support Yes
Head-of-line (HOL) blocking Yes
Full duplex Yes
Half duplex Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
10G support No
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 9216
Jumbo frames support Yes
Number of queues 4
Forwarding rate 7.4 Mpps
Switching capacity 10 Gbit/s
MAC address table 2048 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
Loop protection Yes
Design
Market segment Business
Product colour Grey
Form factor Desktop
Rack mounting No
Performance
Mean time between failures (MTBF) 4243002 h
Power
Power plug type Type C
Power saving mode (EEE) Yes
DC input voltage 12 V
AC input frequency 50 Hz
AC input voltage 100 - 240 V
Number of power supply units 1
Redundant power supply (RPS) support No
Power supply location External
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Other features
Diagnostics Cable diagnostics
Packaging content Switch, Power cord or adapter, Mounting hardware and Quick Start Guide
Operational conditions
Heat dissipation 9.34 BTU/h
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 240 g
Height 30 mm
Depth 110 mm
Width 74.9 mm
Packaging content
Quick start guide Yes
Packaging data
Package weight 440 g
Package height 55.9 mm
Package depth 222 mm
Package width 144.8 mm
Certificates
Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B
Technical details
Products per shipping (inner) case 1 pc(s)
Logistics data
Products per master (outer) case 1 pc(s)
Harmonized System (HS) code 85176990
Country of origin China
Quantity per pack 1 pc(s)
