SKU: C1117-4P

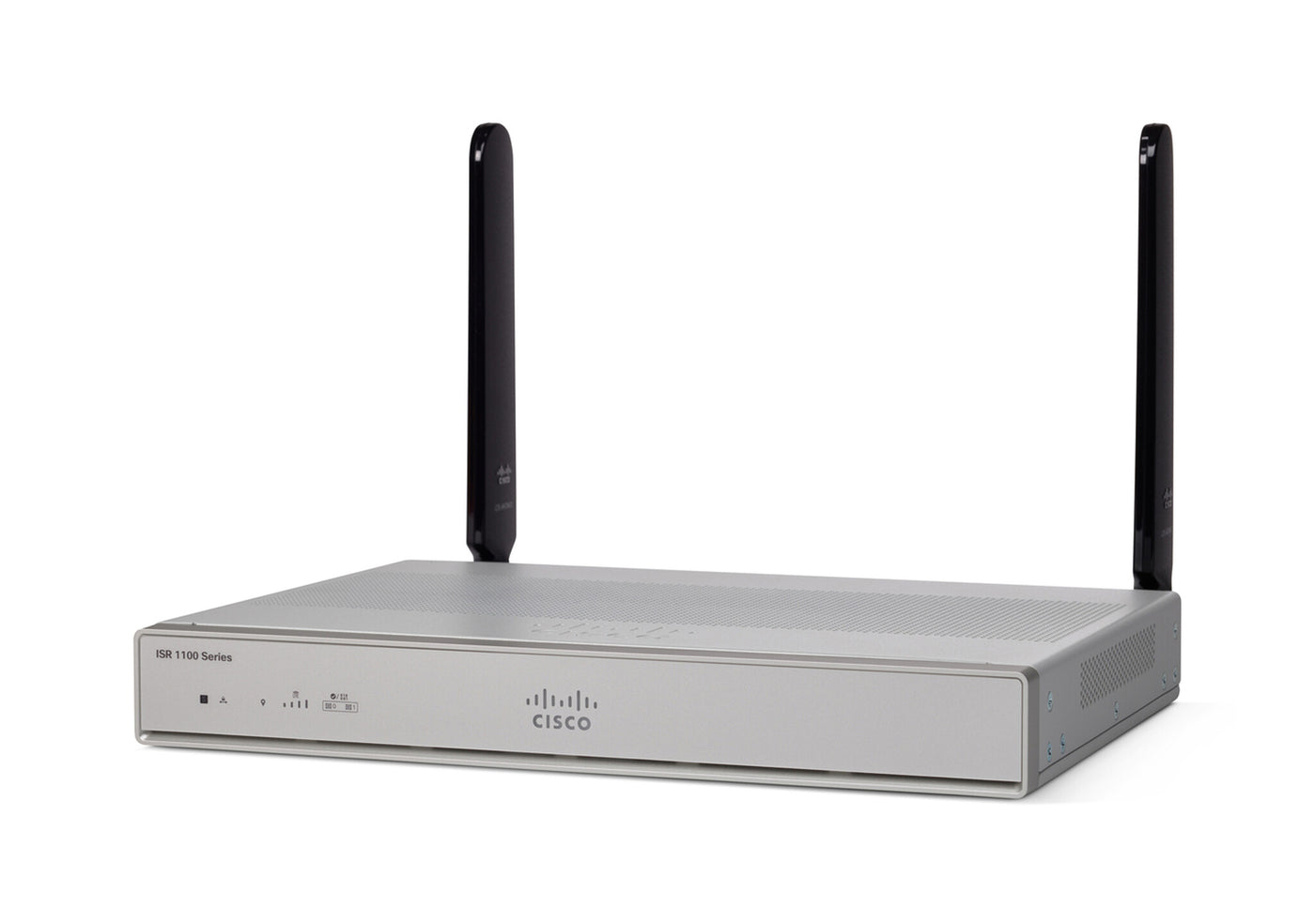

Cisco C1117-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex A/M) and GE WAN Router, 1-Year Limited Hardware Warranty (C1117-4P)

Cisco
£919.43
  • PORT COUNT: 4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)
  • CONNECTIVITY: VA-DSL (Annex A) WAN and WAN/SFP combo ports with integrated USB 3.0 AUX/console
  • SECURITY: Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud
  • PERFORMANCE: Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services
  • PEACE OF MIND: 1-year limited hardware warranty with 10-day advanced replacement

The Cisco C1117-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.

WAN connection
Ethernet WAN Yes
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
DSL features
VDSL Yes
Management features
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
USB version 3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN (RJ-45) ports 4
Security
Firewall Yes
Security algorithms 3DES, 802.1x RADIUS, AES, DES
Design
Country of origin China
Product colour Silver
Antenna
Antenna type Not supported
Power
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Operational conditions
Non-operating altitude 0 - 4570 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) 0 - 65 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.59 kg
Height 44 mm
Depth 244 mm
Width 323 mm
Packaging data
Package weight 3.08 kg
Package height 162.1 mm
Package depth 508 mm
Package width 342.9 mm
Logistics data
Quantity per pack 1 pc(s)
Harmonized System (HS) code 85176990
