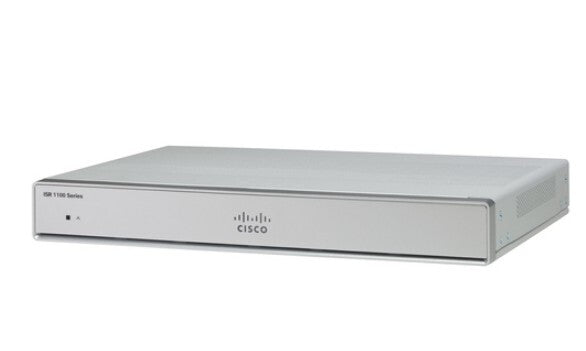

Cisco 1000 Series Integrated Services Routers
The Cisco® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Network |
|---|
| Number of users |
400 user(s) |
| Forwarding rate |
1372 Mpps |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| USB ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
4 |
| Security |
|---|
| VPN tunnels quantity |
100 |
| Network Address Translation (NAT) sessions (max) |
100 |
| Access Control List (ACL) |
Yes |
| Firewall |
Yes |
| Security algorithms |
802.1x RADIUS, IPSec, WPA2-AES, WPA2-RADIUS |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Features |
|---|
| Internal memory |
4000 MB |
| Flash memory |
4000 MB |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Silver |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Output voltage |
12 V |
| AC input voltage |
100 - 240 V |
| Power source type |
DC |
| Power consumption (max) |
66 W |
| Power consumption (typical) |
18.8 W |
| Operational conditions |
|---|
| Non-operating altitude |
0 - 4572 m |
| Operating altitude |
0 - 3048 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
860 g |
| Height |
41.9 mm |
| Depth |
226 mm |
| Width |
322 mm |
