The Cisco® Catalyst® 9136 Series Access Points are the next generation of enterprise access points supporting the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent.

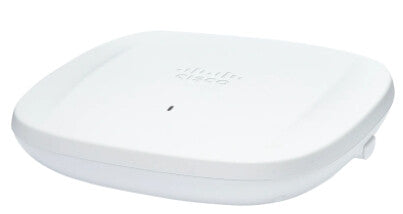

Catalyst 9136I access point
The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.
Wi-Fi 6E technology extends Wi-Fi 6 into the 6-GHz spectrum, bringing faster speeds and lower latency while also providing more security to the network. As apps become increasingly vital for getting work done, clients need unencumbered access to them. Wi-Fi 6E provides that direct access.
Network speed increases due to the new 6-GHz spectrum and additional bandwidth.
A new standard of reliability and predictability of connection that is shortening the gap between wireless and wired connections. Wi-Fi 6E devices won’t have to share the same spectrum with any devices that are not Wi-Fi 6E compliant and will have an additional 1.2 GHz of no-interference spectrum to themselves.
Greater network security than ever before, due to mandatory WPA3 security.
Features |
Cyclic Shift Diversity (CSD) |
Yes |
Maximal-Ratio Combining (MRC) |
Yes |
MIMO type |
Multi User MIMO |
MIMO |
Yes |
Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
Ethernet LAN data rates |
100,1000,2500,5000 Mbit/s |
5 GHz |
Yes |
6 GHz |
Yes |
2.4 GHz |
Yes |
Security |
Security algorithms |
TLS, WPA2, WPA3 |
Management features |
Firmware upgradeable |
Yes |
Web-based management |
Yes |
Ports & interfaces |
DC-in jack |
Yes |
USB 2.0 ports quantity |
1 |
Ethernet LAN (RJ-45) ports |
2 |
Power |
Power over Ethernet (PoE) |
Yes |
Design |
LED indicators |
Activity, Operation |
Housing material |
Plastic |
Product colour |
White |
Placement |
In-wall, Table |
Antenna |
Antenna gain level (max) |
6 dBi |
Antennas quantity |
3 |
Antenna direction type |
Omni-directional |
Antenna type |
Internal |
Performance |
Flash memory |
1024 MB |
Internal memory |
2048 MB |
Weight & dimensions |
Weight |
1.65 kg |
Height |
56 mm |
Depth |
251 mm |
Width |
251 mm |
Packaging content |
Quantity per pack |
1 pc(s) |
Operational conditions |
Operating altitude |
0 - 3000 m |
Non-operating altitude |
0 - 4600 m |
Storage temperature (T-T) |
-30 - 70 °C |
Operating temperature (T-T) |
0 - 50 °C |
Operating relative humidity (H-H) |
10 - 90% |
