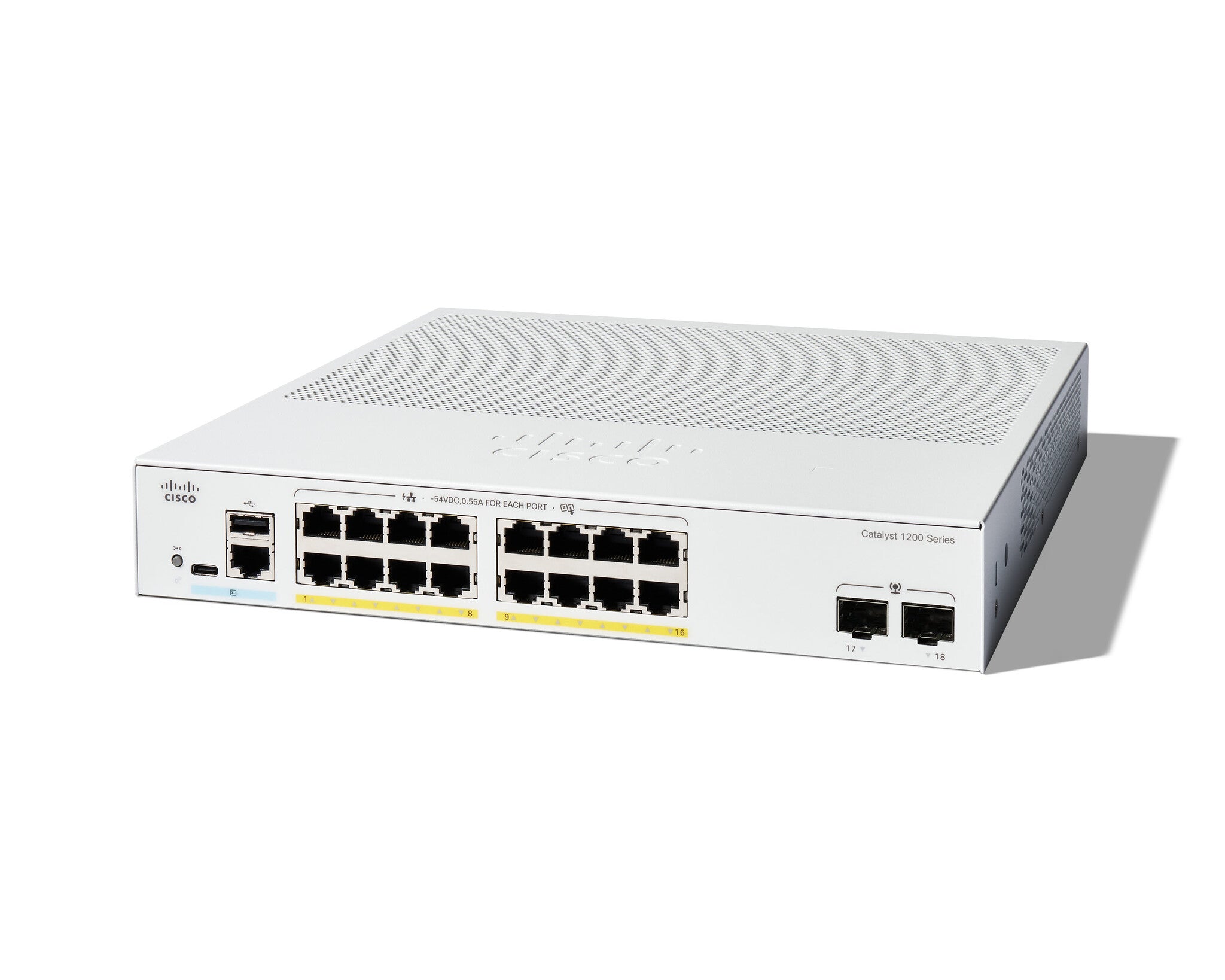

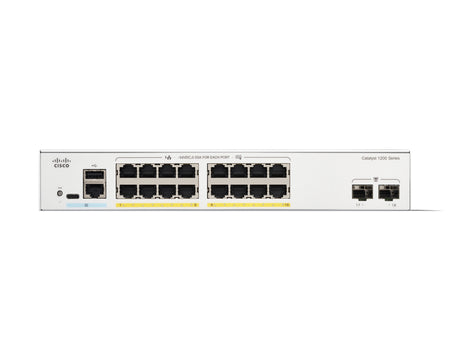

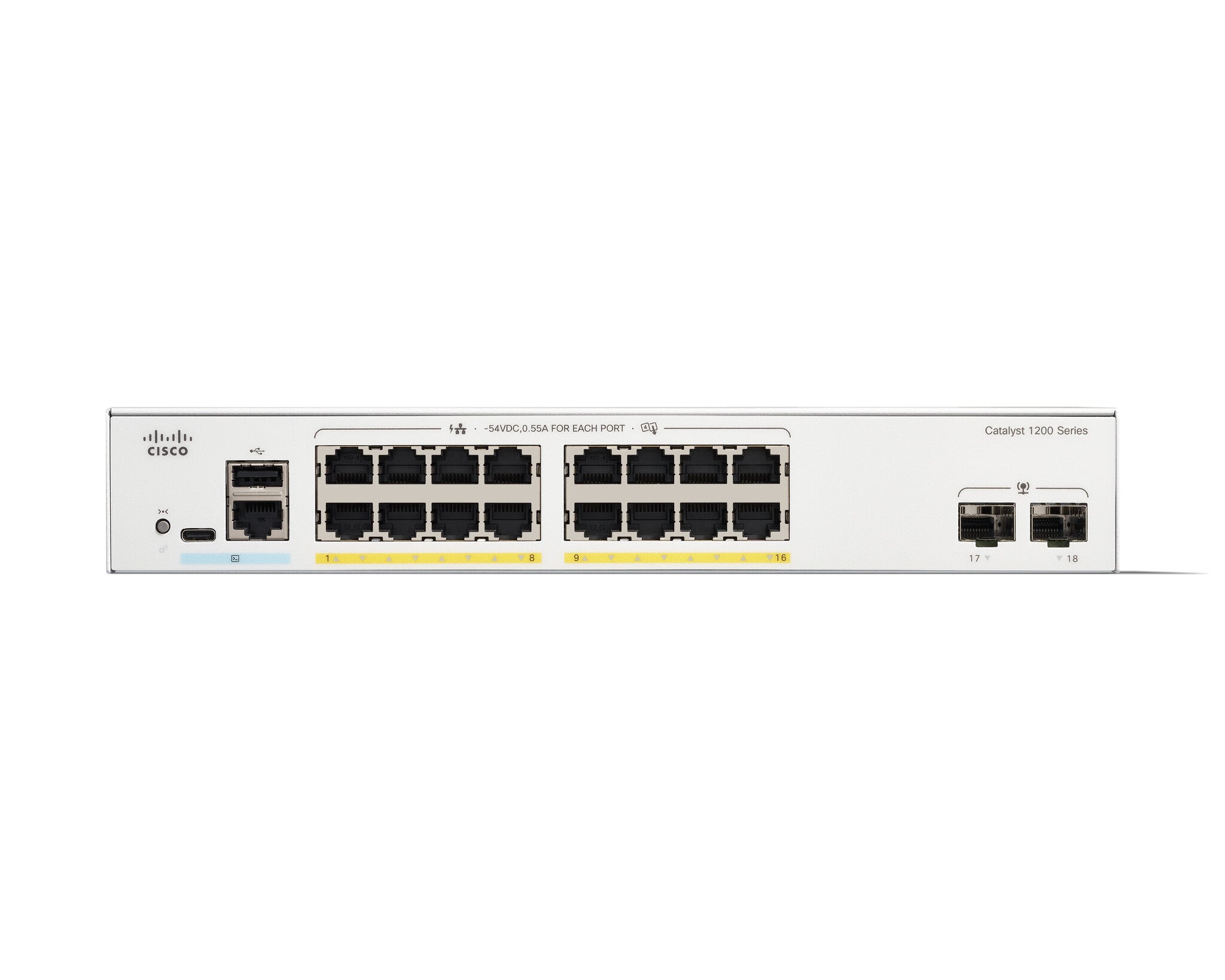

Cisco Catalyst 1200-16P-2G Smart Switch, 16 Port GE, PoE, 2x1GE SFP, Limited Lifetime Protection (C1200-16P-2G)

SKU: C1200-16P-2G

£296.42 inc. VAT

SWITCH PORTS: 16 ports 10/100/1000 + 2x 1GE SFP (total PoE power budget: 120W, PoE, PoE+)
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1200-16P-2G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Management features
MIB support	Y
Configuring Location Settings (CLI)	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed

Ports & interfaces
Console port	RJ-45/USB Type-C
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16

Network
Number of VLANs	255
VLAN support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission
Packet buffer memory	1.5 MB
Jumbo frames	9000
Jumbo frames support	Yes
Number of static routes	32
Static route	Yes
Forwarding rate	26.78 Mpps
Switching capacity	36 Gbit/s
MAC address table	8000 entries

Security
Authentication type	RADIUS
SSH/SSL support	Yes
Authentication	Guest VLAN
Loop protection	Yes
IGMP entries	255
IGMP snooping	Yes
Access Control List (ACL)	Yes
DHCP features	DHCP client

Multicast features
Multicast support	Yes

Design
LED indicators	Yes
Product colour	Grey
Rack mounting	Yes

Performance
Mean time between failures (MTBF)	706983 h

Power
Power plug type	Type C
Power consumption (max)	156.4 W
AC input frequency	50/60 Hz
AC input voltage	110 - 220 V
Power source	AC

Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE)	Yes

Other features
Packaging content	Switch, power cable, USB Type C cable and mounting hardware

Operational conditions
Heat dissipation	536.05 BTU/h
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 50 °C

Weight & dimensions
Weight	2.38 kg
Height	43.9 mm
Depth	268.2 mm
Width	296.9 mm

Packaging data
Package weight	4.11 kg
Package height	108 mm
Package depth	399 mm
Package width	414 mm

General
Product family	Catalyst

Logistics data
Country of origin	China
