SKU: C1200-24P-4G

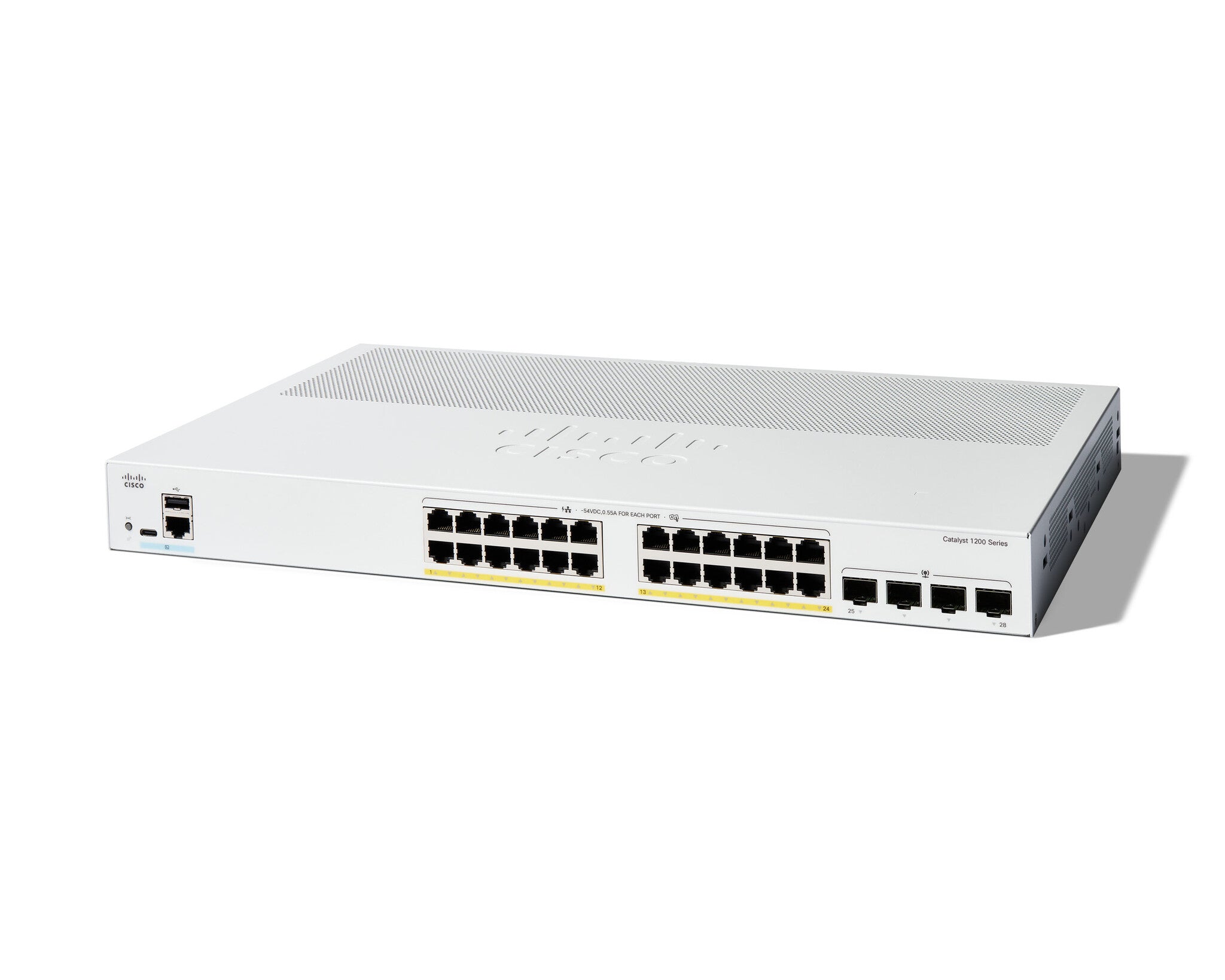

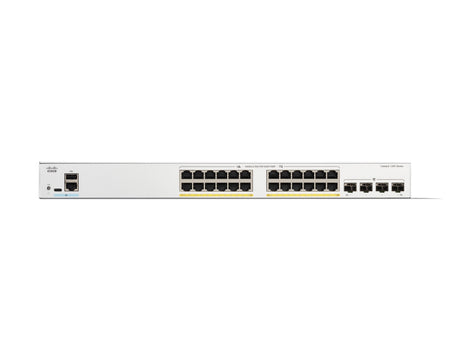

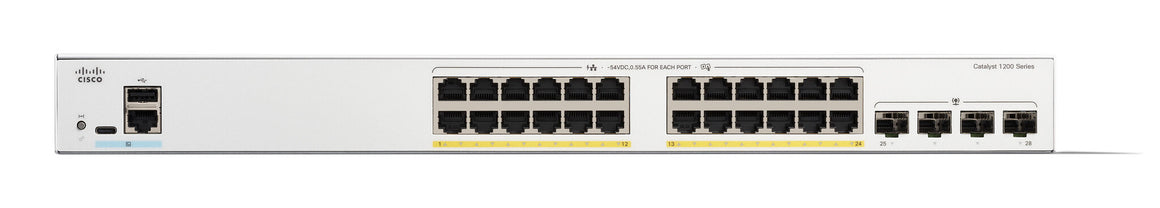

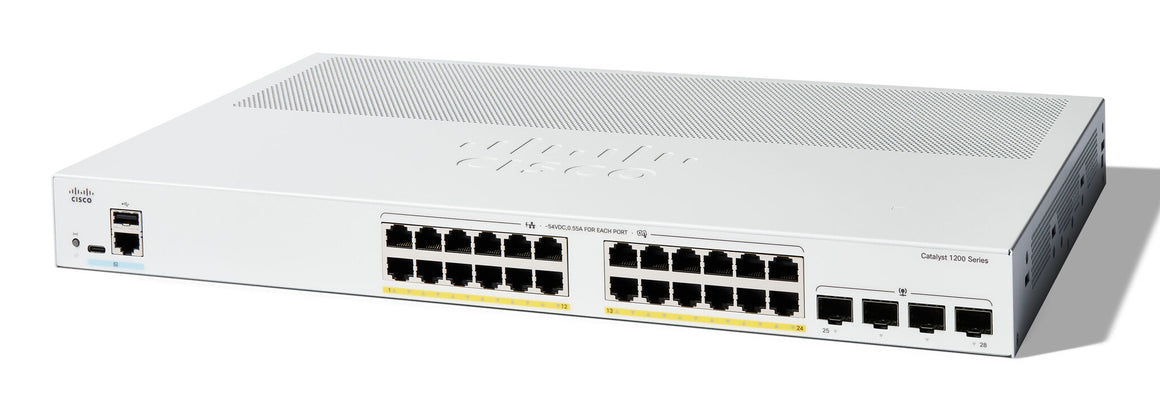

Cisco Catalyst 1200-24P-4G Smart Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1200-24P-4G)

Cisco
£374.89
  • SWITCH PORTS: 24 ports 10/100/1000 + 4x 1GE SFP (total PoE power budget: 195W, PoE, PoE+)
  • SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
  • SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
  • ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1200-24P-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 28
Network
Number of VLANs 255
VLAN support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Port mirroring Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of queues 8
Forwarding rate 41.66 Mpps
Switching capacity 56 Gbit/s
MAC address table 8000 entries
Security
Queue scheduling algorithms Weighted Round Robin (WRR)
DoS attack prevention Yes
Security algorithms 802.1x RADIUS
Loop protection Yes
Access Control List (ACL) rules 512
Multicast features
Multicast support Yes
Protocols
GARP VLAN Registration Protocol (GVRP) Yes
Design
LED indicators Yes
Reset button Yes
Product colour White
Form factor 1U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 698220 h
Firmware upgradeable Yes
Flash memory 512 MB
Internal memory 1000 MB
Memory type DDR4-SDRAM
Processor frequency 1.4 MHz
Built-in processor Yes
Power
Power plug type Type C
Power consumption (typical) 10.65 W
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 195 W
Power over Ethernet (PoE) Yes
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 3.53 kg
Height 43.9 mm
Depth 444.5 mm
Width 298.7 mm
Packaging data
Package weight 5.82 kg
Package height 105.9 mm
Package depth 575.1 mm
Package width 430 mm
General
Product family Catalyst
Certificates
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin China
