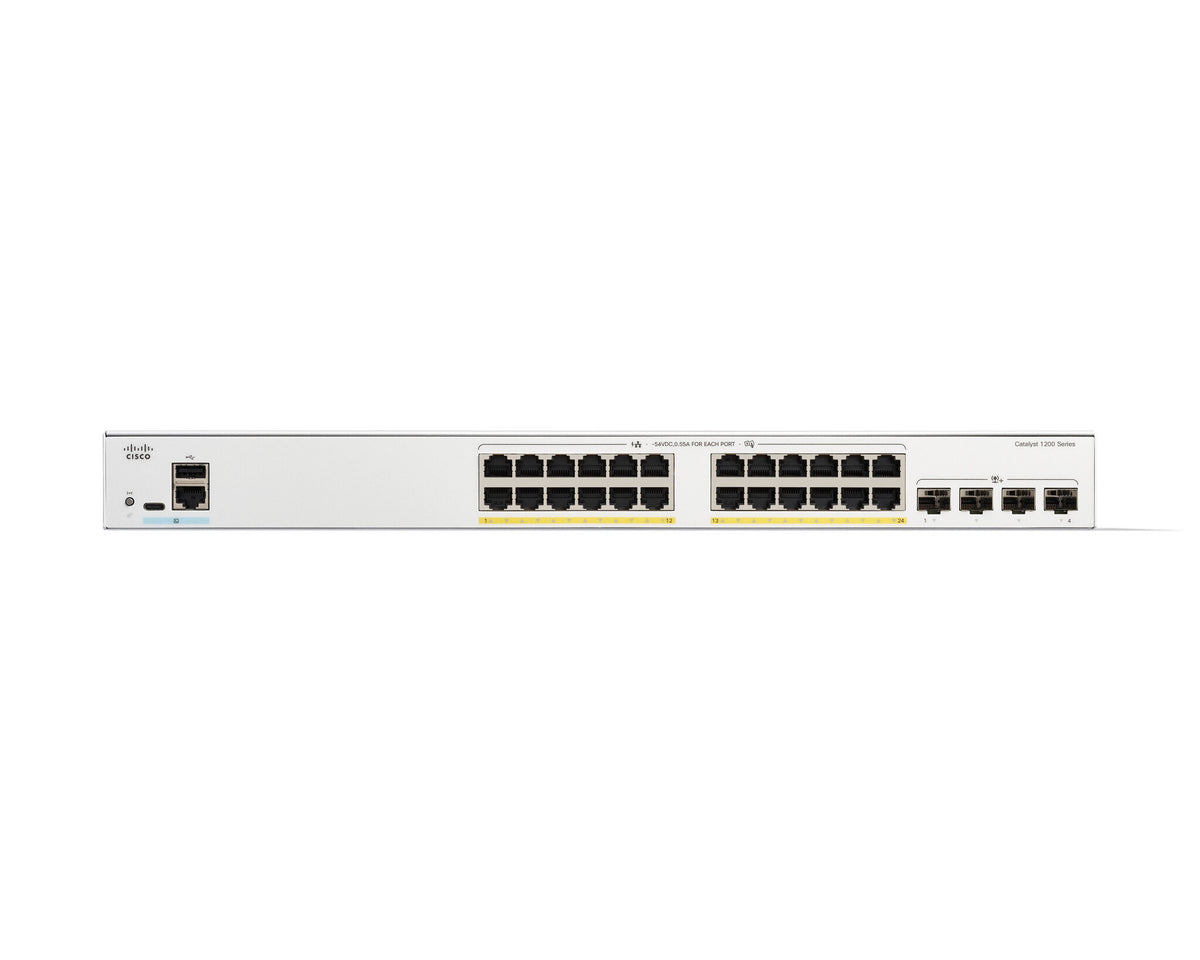

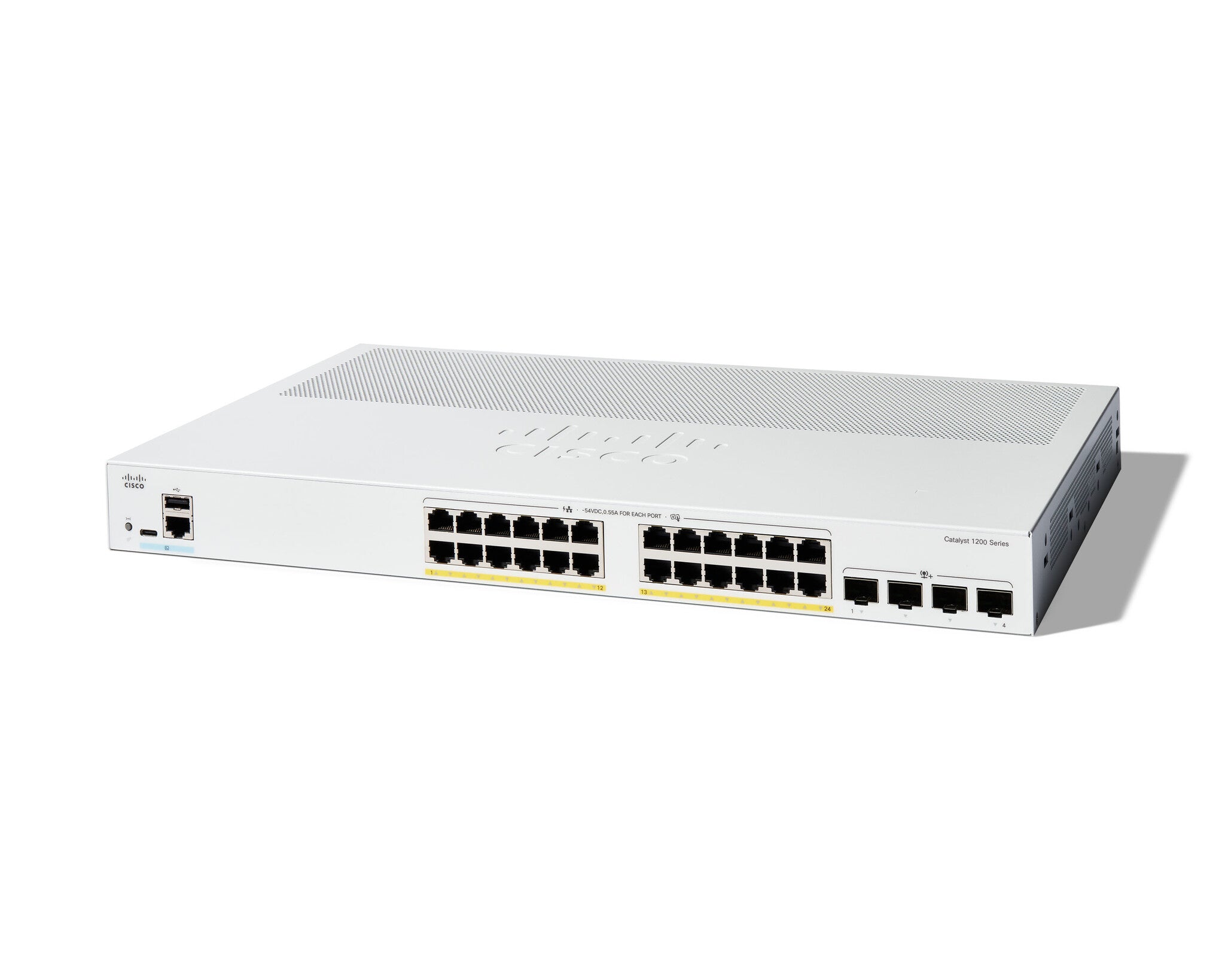

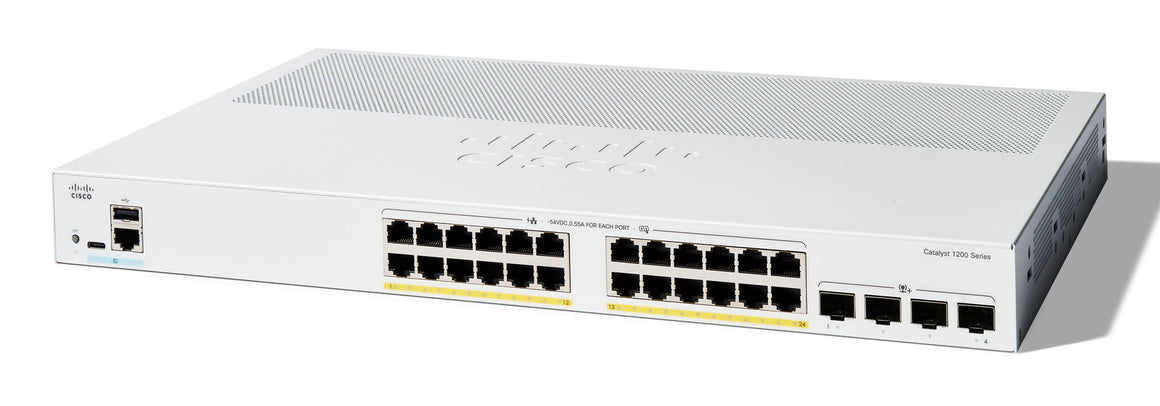

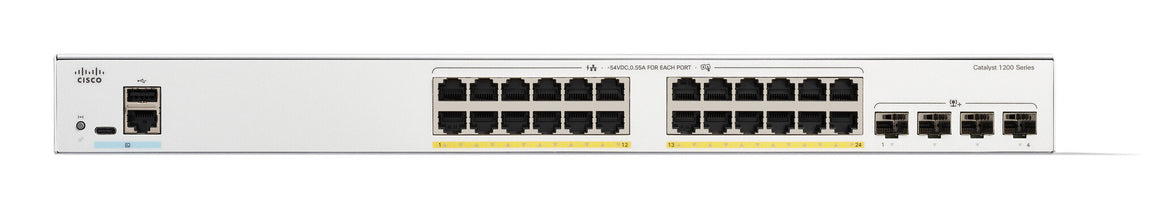

Cisco Catalyst 1200-24P-4X Smart Switch, 24 Port GE, PoE, 4x10GE SFP+, Limited Lifetime Protection (C1200-24P-4X)

SKU: C1200-24P-4X

£348.16 inc. VAT

SWITCH PORTS: 24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 195W, PoE, PoE+)
SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY: Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1200-24P-4X switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

Management features
MIB support	Y
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2/L3
Switch type	Managed

Ports & interfaces
Installed SFP+ modules quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24

Network
VLAN support	Yes
Ethernet LAN data rates	1000 Mbit/s
Flow control support	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Port mirroring	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Data transmission
Jumbo frames	9000
Jumbo frames support	Yes
Static route	Yes

Security
SSH/SSL support	Yes
Security algorithms	HTTPS, SSH, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes

Multicast features
Multicast support	Yes

Design
LED indicators	Yes
Reset button	Yes
Housing material	Metal
Product colour	White

Performance
Flash memory	512 MB
Internal memory	1024 MB
Processor frequency	1400 MHz

Power
Power plug type	Type C
Power supply included	Yes
Power source	AC

Other features
Packaging content	Switch, power cable, USB Type C cable and mounting hardware

Operational conditions
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight & dimensions
Height	43.9 mm
Depth	444.5 mm
Width	298.7 mm

Packaging data
Package weight	5.99 kg
Package height	105.9 mm
Package depth	575.1 mm
Package width	430 mm

Logistics data
Country of origin	China
