SKU: C1300-8P-E-2G

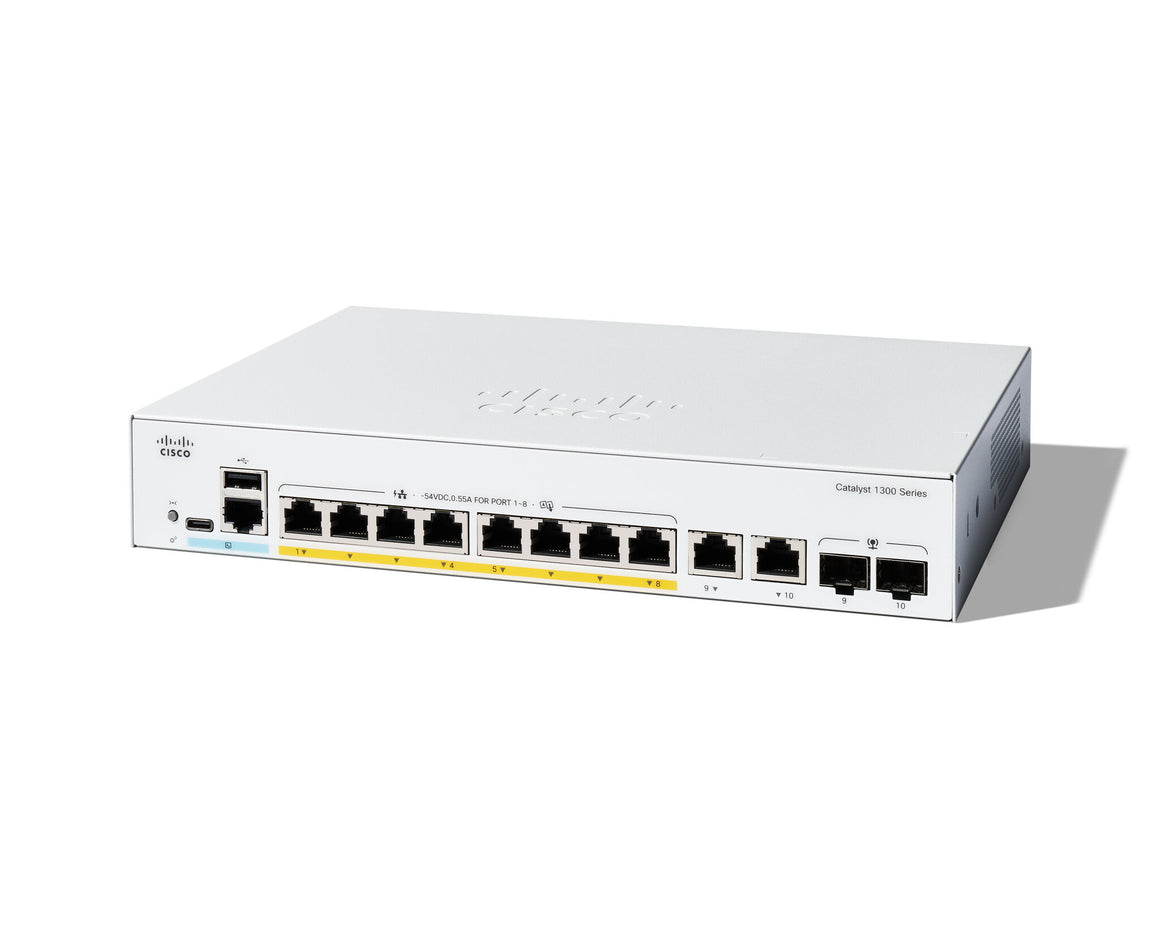

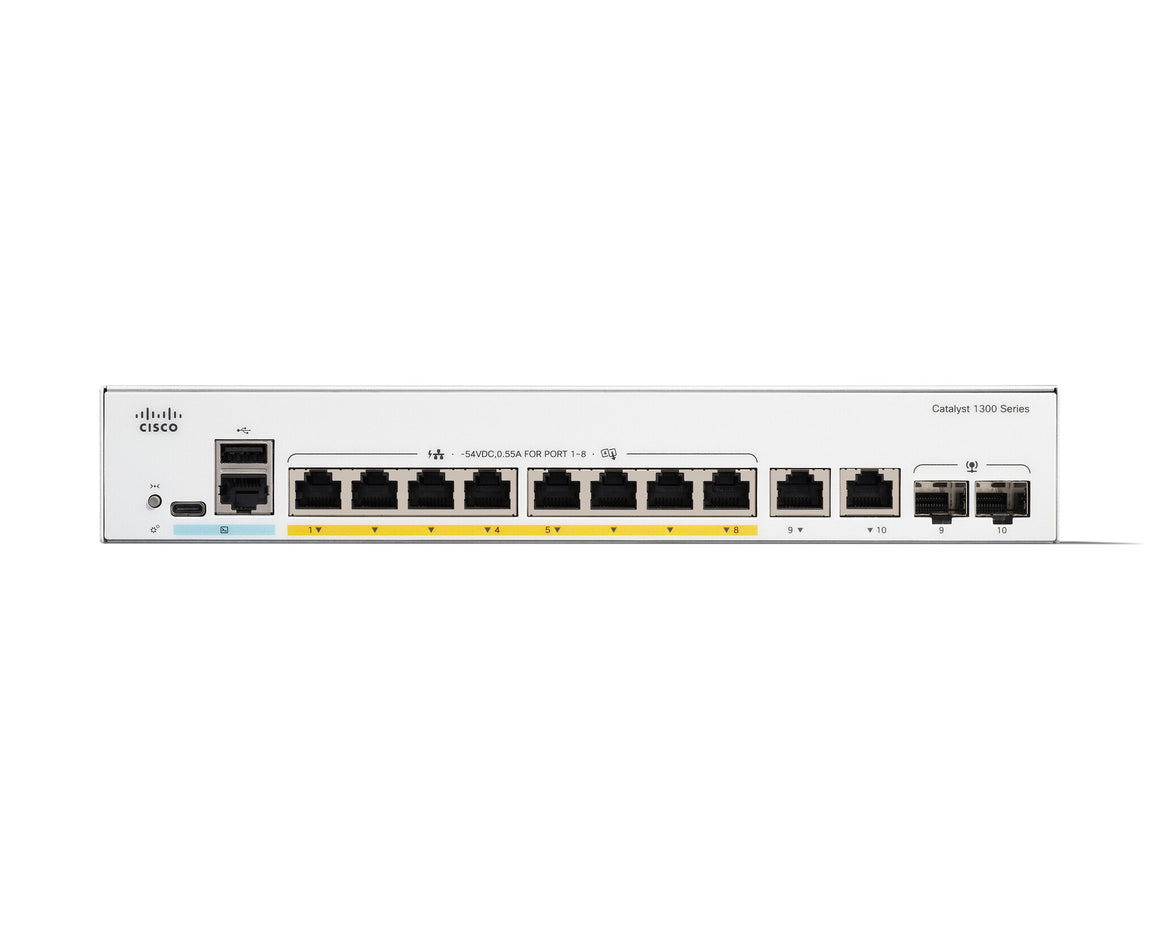

Cisco Catalyst 1300-8P-E-2G Managed Switch, 8 Port GE, PoE, Ext PS, 2x1GE Combo, Limited Lifetime Protection (C1300-8P-E-2G)

Cisco
£275.00
iFrame
  • SWITCH PORTS: 8 ports 10/100/1000 + 2x 1GE copper/SFP combo (total PoE power budget: 67W, PoE, PoE+)
  • SIMPLE: Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
  • ENHANCED SECURITY: IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
  • ENERGY EFFICIENT: Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS: Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1300-8P-E-2G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
Combo SFP ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Network
Number of VLANs 4093
VLAN support Yes
Link aggregation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Port mirroring Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 1.5 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of static routes 990
Static route Yes
Forwarding rate 14.88 Mpps
Switching capacity 20 Gbit/s
MAC address table 16000 entries
Security
Authentication type RADIUS
SSH/SSL support Yes
Authentication MAC-based authentication, Web-based authentication
Loop protection Yes
IGMP entries 2000
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP Option 82, DHCP client, DHCP server
Multicast features
Multicast support Yes
Design
LED indicators Yes
Product colour Grey
Rack mounting Yes
Performance
Mean time between failures (MTBF) 1706649 h
Power
Power plug type Type C
Power consumption (max) 80.86 W
AC input frequency 50/60 Hz
AC input voltage 110 - 220 V
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 60 W
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) Yes
Other features
Packaging content Switch, power cable, USB Type C cable and mounting hardware
Operational conditions
Heat dissipation 275.91 BTU/h
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 1.53 kg
Height 43.9 mm
Depth 268.2 mm
Width 184.9 mm
Packaging data
Package weight 3.07 kg
Package height 103.9 mm
Package depth 544.8 mm
Package width 299 mm
General
Product family Catalyst
Logistics data
Country of origin China
