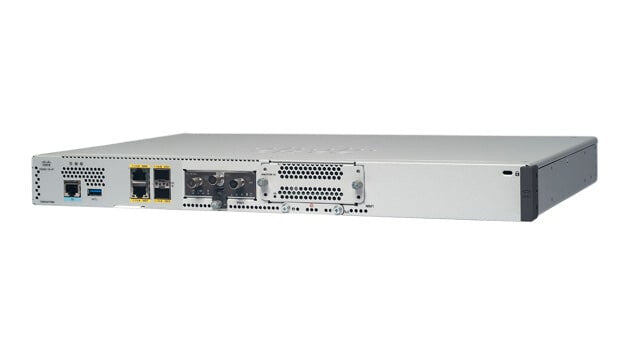

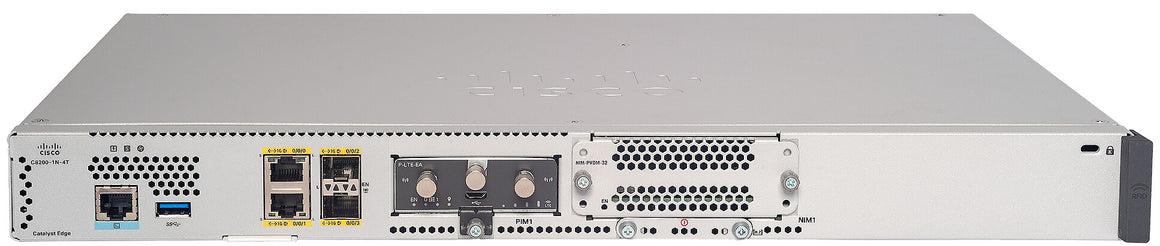

The Cisco® Catalyst® 8200 Series Edge Platforms with Cisco IOS® XE SD-WAN software deliver Cisco’s secure, cloud-scale SD-WAN solution for the small branch. The platforms are purpose-built for performance and integrated SD-WAN services along with flexibility to deliver security and networking services together from the cloud or on premises. They have a wide variety of interface options to choose from, with backward compatibility to existing WAN, LAN, and voice modules. Powered by Cisco IOS XE, a fully programmable software architecture, and API support, the Catalyst 8200 Series can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. The platforms also come with a trustworthy solutions 2.0 infrastructure that secures them against threats and vulnerabilities through advanced integrity verification and remediation of threats.
The 8200 Series is well suited for small and medium-sized enterprise branch offices at optimal price/performance with integrated SD-WAN services.
The Catalyst 8200 Series Edge Platforms are offered in two models: C8200L-1N-4T for the small branch with SASE-compliant, cloud-based security requirements, and C8200-1N-4T for the small to medium-sized branch with requirements for higher throughput, scale, and service flexibility. In addition to supporting SASE-compliant cloud-based security services, the C8200-1N-4T also delivers a flexible system of best-in-class, on-premises security services through container-based apps, using Cisco’s third-party ecosystem.
| WAN connection |
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| Ethernet WAN |
Yes |
| Network |
| VLAN support |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah |
| Management features |
| Web-based management |
Yes |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
4 |
| Protocols |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Security |
| Network address translation (NAT) |
Yes |
| Access Control List (ACL) |
Yes |
| Security algorithms |
IPSec |
| Features |
| Certification |
UL 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1AS/NZS 60950-1IEC/EN 60825 |
| Mean time between failures (MTBF) |
692577 h |
| Internal memory |
4096 MB |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Design |
| Rack capacity |
1U |
| Rack mounting |
Yes |
| Product colour |
Grey |
| Power |
| AC input voltage |
90 - 264 V |
| Power source type |
AC |
| Operational conditions |
| Operating altitude |
0 - 3050 m |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 85% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
4.54 kg |
| Height |
43.9 mm |
| Depth |
299.7 mm |
| Width |
438.1 mm |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
