SKU: C9120AXE-E

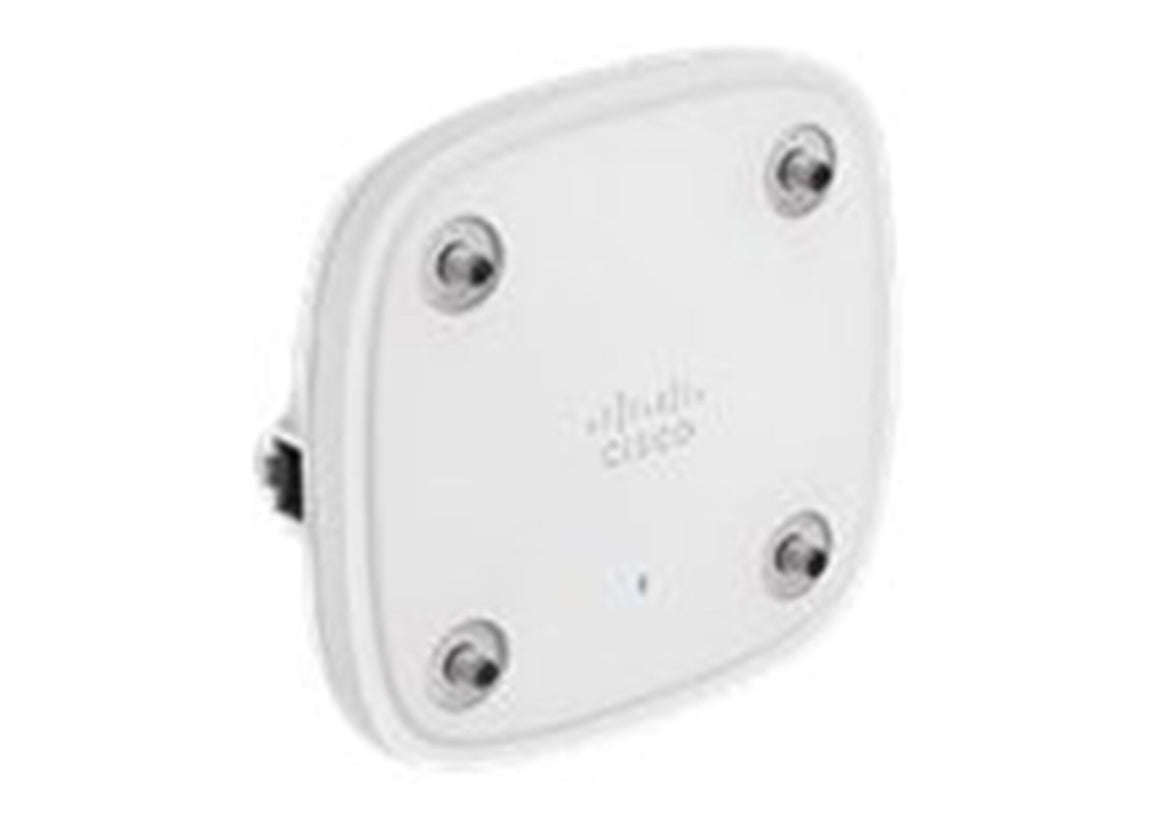

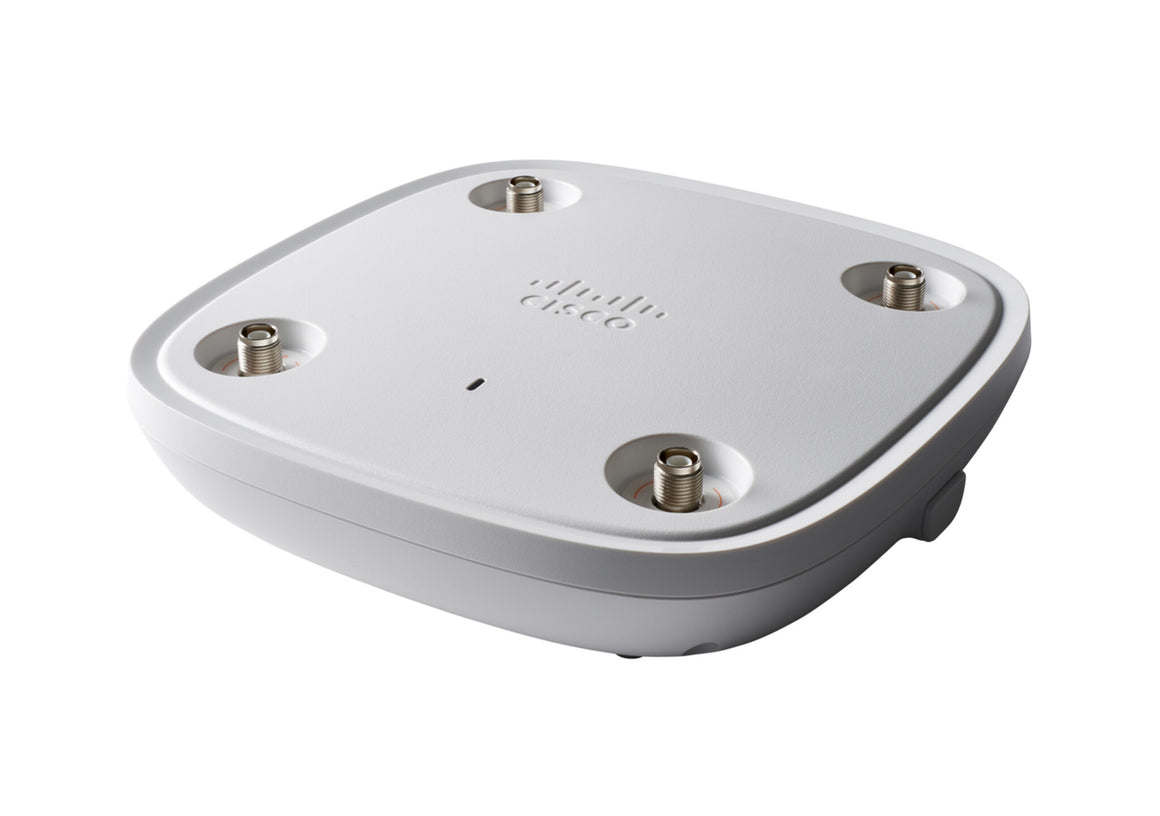

Cisco Catalyst 9120AXE-E Wireless Access Point, Wi-Fi 6, 4x4 Dual 5GHz Radio, MU-MIMO, CleanAir with RF ASIC, PoE, External antenna, (C9120AXE-E)

Cisco
£873.20
iFrame
  • POWERFUL Wi-Fi 6 PERFORMANCE: 4x4 Flexible Dual Radio with 5GHz and 2.4GHz or two 5GHz configuration, up to 5.38 Gbps data rate, uplink/downlink OFDMA, MU-MIMO, BBS colouring, TWT and Embedded IoT radios enabling BLE 5.0 and Zigbee
  • CISCO CLEANAIR: Powered by Cisco RF ASIC, offer superior analytics and security
  • ECOSYSTEM: End-point interoperability and optimised performance on Apple and Samsung devices
  • EMBEDDED WIRELESS CONTROLLER: Controller functions embedded in the Access Point for easy deployment, network monitoring and troubleshooting. Support with WebGUI and mobile app (C9120AXI(E)-EWC models only)
  • PEACE OF MIND: 90-day software and limited lifetime hardware warranty

The Catalyst 9120 Access Points are designed for mission-critical deployments with dual 5-GHz and integrated IoT radio. With CleanAir technology powered by Cisco RF ASIC, the C9120 access point goes beyond the Wi-Fi 6 (802.11ax) standard, providing radio-frequency excellence for high-density environments. These access points are resilient and intelligent while providing integrated security for mobile and IoT devices. Pairing with Cisco DNA, it further offers real-time analytics, quickly detect and contain security threats, and a network-wide consistency through automation and virtualisation.

Features
MIMO type Multi User MIMO
MIMO Yes
Bluetooth version 5.0
Bluetooth Yes
Channels quantity 29 channels
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 100,1000,2500,5000 Mbit/s
Maximum data transfer rate (5 GHz) 5000 Mbit/s
Maximum data transfer rate (2.4 GHz) 2500 Mbit/s
Maximum data transfer rate 5000 Mbit/s
5 GHz Yes
2.4 GHz Yes
Security
Security algorithms AES, EAP, EAP-GTC, EAP-SIM, MSCHAPv2, TLS, TTLS, WPA, WPA2, WPA3
Management features
Firmware upgradeable Yes
Syslog Yes
Ports & interfaces
WAN connection Ethernet (RJ-45), Mobile network (SIM), Wi-Fi
USB 2.0 ports quantity 1
Internal RJ-45 ports quantity 1
Ethernet LAN (RJ-45) ports 1
Power
Power plug type Type C
Power over Ethernet (PoE) Yes
Design
On/off switch Yes
Product colour White
Placement Ceiling, Floor, Table
Antenna
Number of connectors 2
Antenna connector type RP-TNC
Antenna gain level (max) 6 dBi
Antennas quantity 4
Antenna features Detachable antenna
Antenna direction type Omni-directional
Antenna type Internal & external
Performance
Flash memory 1024 MB
Internal memory 2048 MB
Technical details
Products per shipping (inner) case 1 pc(s)
Weight & dimensions
Weight 1.36 kg
Height 51 mm
Depth 216 mm
Width 216 mm
Packaging data
Package weight 671.2 g
Package height 90.4 mm
Package depth 263.7 mm
Package width 244.6 mm
CD manual Yes
Packaging content
PoE adapter included Yes
AC adapter included Yes
Quantity per pack 1 pc(s)
Operational conditions
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 4572 m
Storage temperature (T-T) -39 - 70 °C
Operating temperature (T-T) -20 - 50 °C
Operating relative humidity (H-H) 10 - 90%
Logistics data
Products per master (outer) case 1 pc(s)
Country of origin Mexico
Harmonized System (HS) code 85176990
