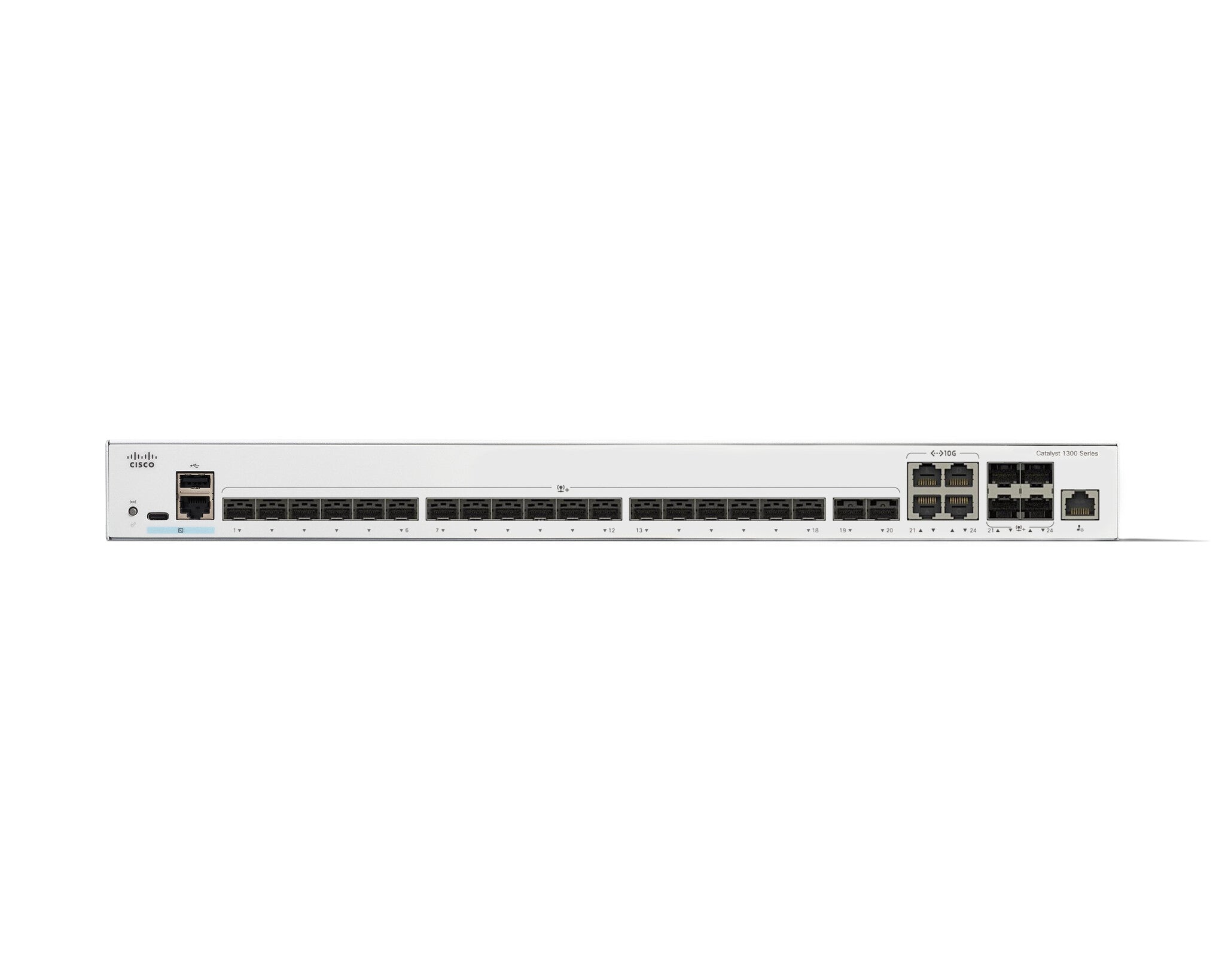

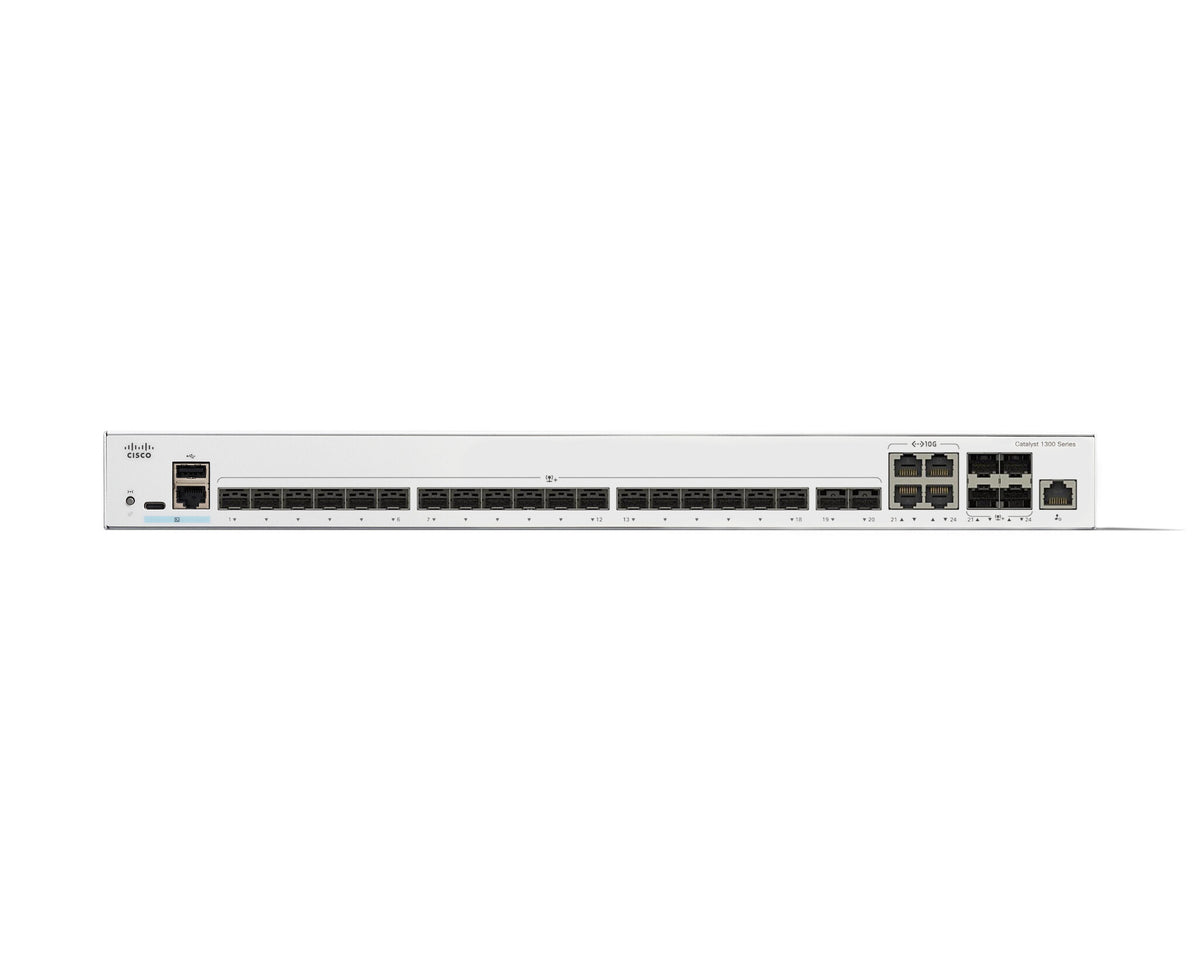

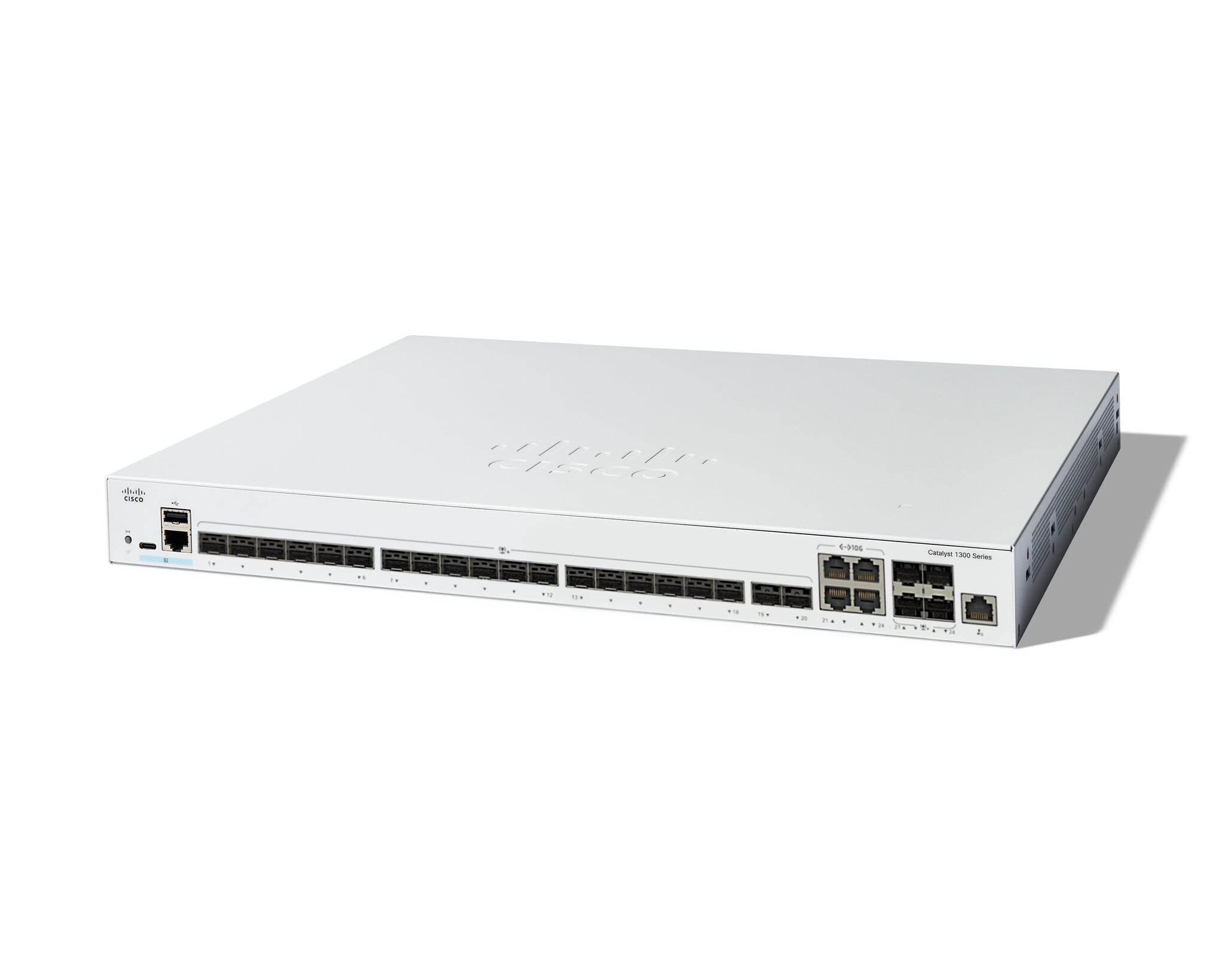

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.
| Management features |
|---|
| MIB support |
Y |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45/USB Type-C |
| SFP+ module slots quantity |
20 |
| Combo SFP ports quantity |
4 |
| Network |
|---|
| Virtual LAN features |
Private VLAN, Voice VLAN |
| VLAN support |
Yes |
| QinQ implementation |
Selective QinQ |
| Rate limiting |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Policy-based routing |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat5e |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Packet buffer memory |
8 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of static routes |
990 |
| Static route |
Yes |
| Number of queues |
8 |
| Switching capacity |
480 Gbit/s |
| MAC address table |
16000 entries |
| Security |
|---|
| Authentication type |
RADIUS, TACACS+ |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| SSH/SSL support |
Yes |
| DoS attack prevention |
Yes |
| Security algorithms |
HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| Authentication |
MAC-based authentication, Web-based authentication |
| IGMP proxy |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) rules |
1024 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| IPv4 & IPv6 features |
ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
|---|
| Reset button |
Yes |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Performance |
|---|
| Plug and Play |
Yes |
| Flash memory |
512 MB |
| Internal memory |
1000 MB |
| Memory type |
DDR4-SDRAM |
| Processor frequency |
1.4 MHz |
| Built-in processor |
Yes |
| Power |
|---|
| Power plug type |
Type C |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 220 V |
| Power source |
AC |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
4.15 kg |
| Height |
44 mm |
| Depth |
350 mm |
| Width |
445 mm |
| Packaging data |
|---|
| Package weight |
5.52 kg |
| Package height |
103.7 mm |
| Package depth |
539.2 mm |
| Package width |
390.1 mm |
| General |
|---|
| Product family |
Catalyst |
| Certificates |
|---|
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Logistics data |
|---|
| Country of origin |
China |
