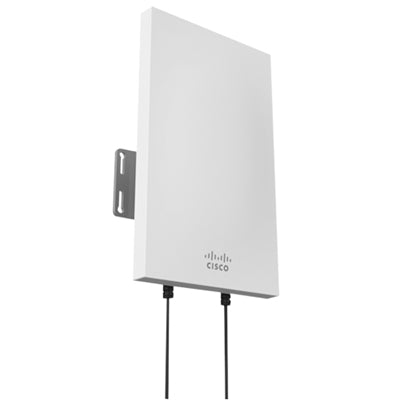

The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.
| Performance |
|---|
| Horizontal beam width |
65° |
| Vertical beam width |
18° |
| Antenna gain (2.4 GHz) |
9 dBi |
| Antenna gain (5 GHz) |
12 dBi |
| Gain |
9 / 12 dBi |
| Frequency band |
2.400 – 2.500, 5.150 – 5.875 |
| Antenna gain level (max) |
12 dBi |
| Features |
|---|
| Mounting |
Wall/Pole |
| Purpose |
Indoor & outdoor |
| Ultraviolet (UV) resistant |
Yes |
| Housing material |
Plastic |
| Product colour |
White |
| Antenna connector type |
N-type |
| Antenna type |
Sector antenna |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
630 g |
| Height |
230 mm |
| Depth |
48 mm |
| Width |
140 mm |
| Packaging data |
|---|
| Package type |
Box |
| General |
|---|
| Product family |
Meraki |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
