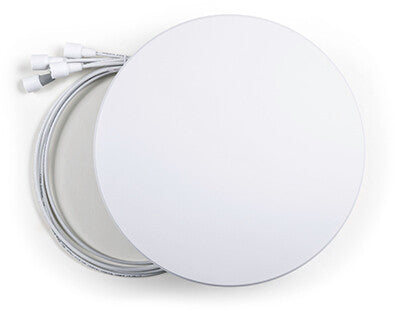

The Downtilt Panel Omnidirectional antenna is ideal for medium ceiling (8 ft - 25 ft) aesthetic consensus installations. Some example uses are medium-density deployments like cube office space and vestibules. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Downtilt Panel Omni antenna can be purchased with 5 or 6 connectors.
| Performance |
|---|
| Vertical beam width (5 GHz) |
60° |
| Horizontal beam width (5 GHz) |
360° |
| Vertical beam width (2.4 GHz) |
60° |
| Horizontal beam width (2.4 GHz) |
360° |
| Vertical beam width |
60° |
| Frequency band |
2.4/5 GHz |
| Antenna gain level (max) |
3.7 dBi |
| Features |
|---|
| Product colour |
White |
| Antenna connector type |
RP-TNC |
| Antenna type |
Omni-directional antenna |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 93% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
590 g |
| Diameter |
22.5 cm |
| Height |
37 mm |
| General |
|---|
| Product family |
Meraki |
| Logistics data |
|---|
| Harmonized System (HS) code |
85177100 |
