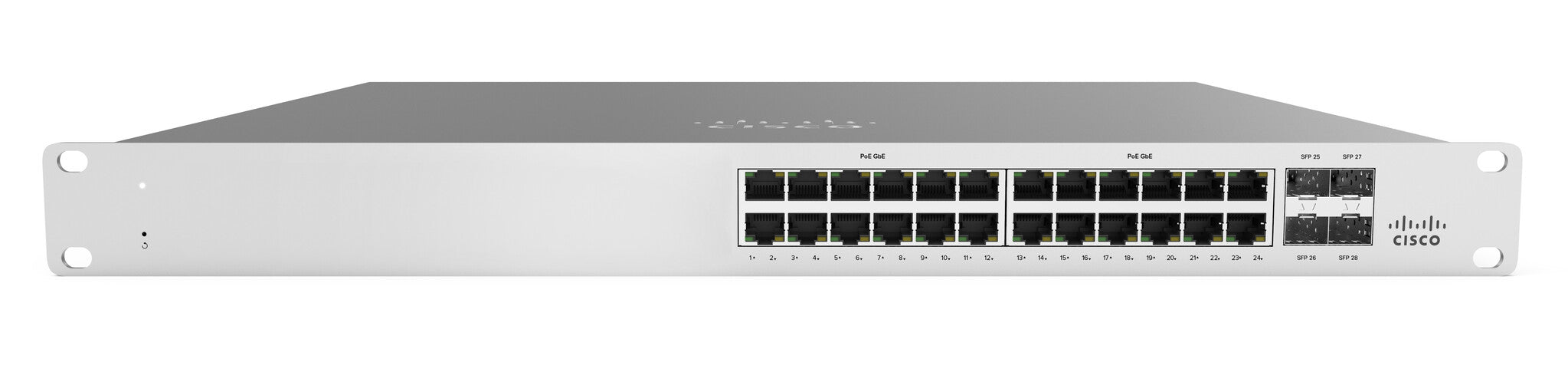

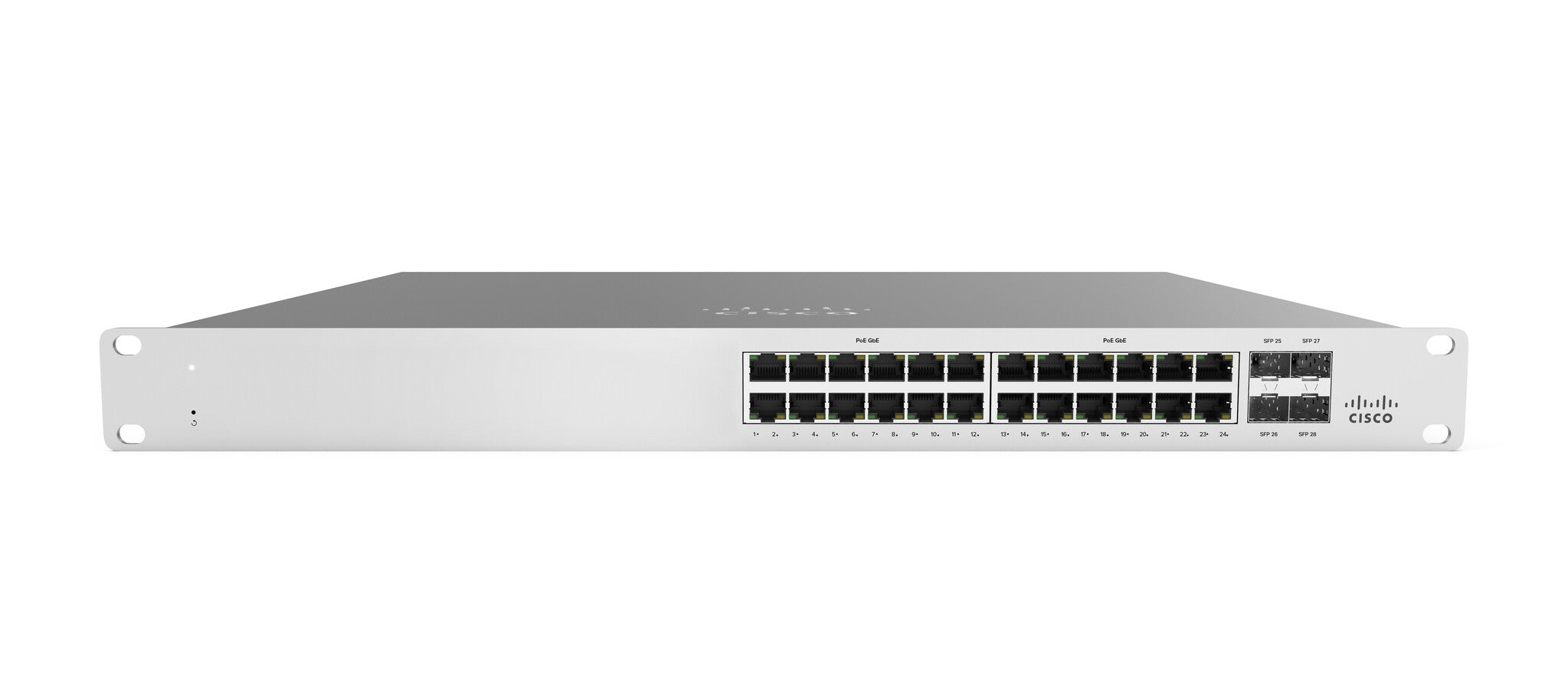

Сisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks. Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches. All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch. Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
Management features |
Web-based management |
Yes |
Quality of Service (QoS) support |
Yes |
Switch layer |
L2 |
Switch type |
Managed |
Ports & interfaces |
Console port |
RJ-45 |
SFP module slots quantity |
4 |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity |
24 |
Network |
Number of VLANs |
4094 |
VLAN support |
Yes |
Auto MDI/MDI-X |
Yes |
Broadcast storm control |
Yes |
Spanning tree protocol |
Yes |
10G support |
No |
Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w |
Data transmission |
Jumbo frames |
9578 |
Jumbo frames support |
Yes |
Switching capacity |
56 Gbit/s |
MAC address table |
16000 entries |
Security |
Root protection |
Yes |
BPDU filtering/protection |
Yes |
IGMP snooping |
Yes |
Access Control List (ACL) |
Yes |
DHCP features |
DHCP server, DHCP snooping, DHCP client |
Multicast features |
Multicast support |
Yes |
Protocols |
Switching protocols |
RSTP, STP, LLDP, CDP |
Management protocols |
SNMP |
Design |
Product colour |
Grey |
Form factor |
1U |
Rack mounting |
Yes |
Performance |
Mean time between failures (MTBF) |
453906 h |
Power |
Power consumption (max) |
882 W |
Power consumption (typical) |
28 W |
AC input frequency |
47/63 Hz |
AC input voltage |
100 - 240 V |
Power over Ethernet (PoE) |
Power over Ethernet (PoE) |
Yes |
Operational conditions |
Operating relative humidity (H-H) |
5 - 95% |
Operating temperature (T-T) |
0 - 40 °C |
Weight & dimensions |
Weight |
4.2 kg |
Height |
44 mm |
Depth |
250 mm |
Width |
440 mm |
General |
Product family |
Meraki |
Logistics data |
Harmonized System (HS) code |
85176990 |
