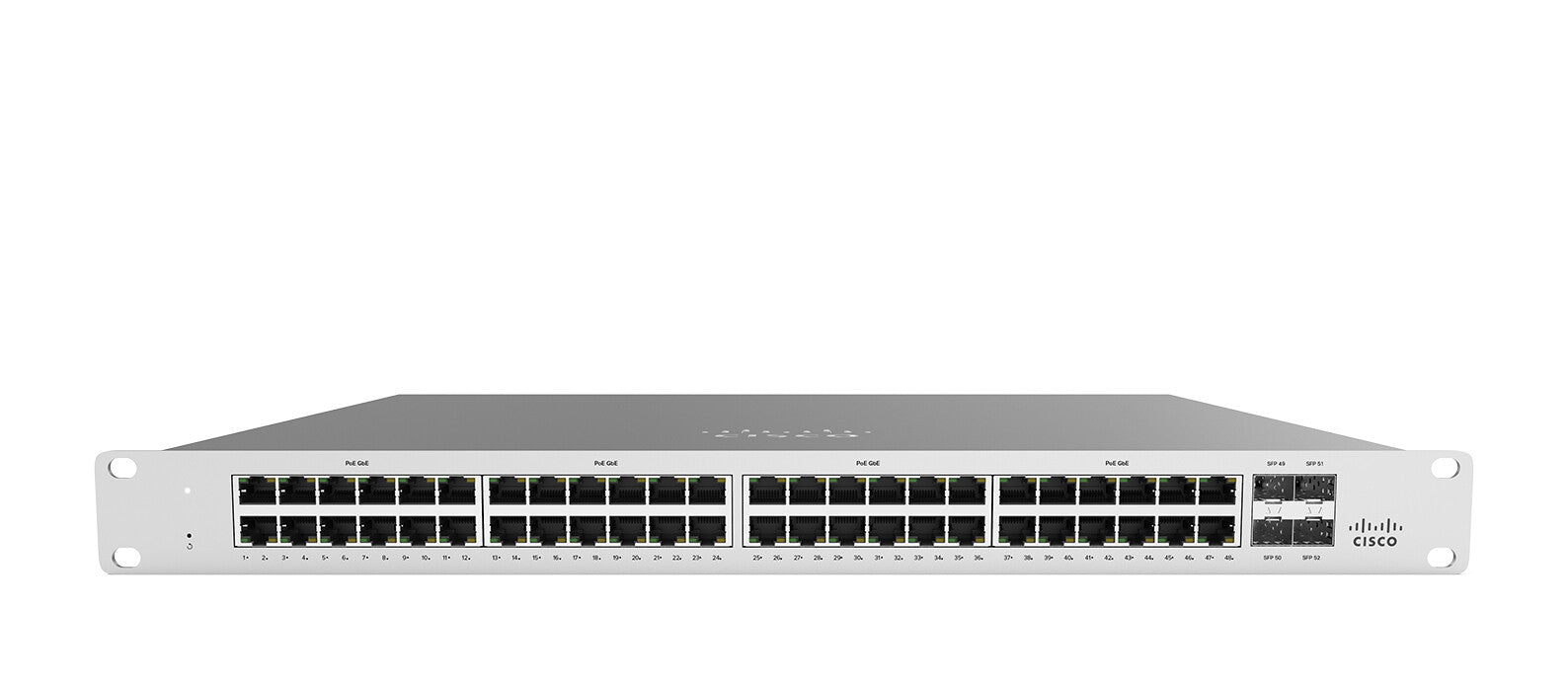

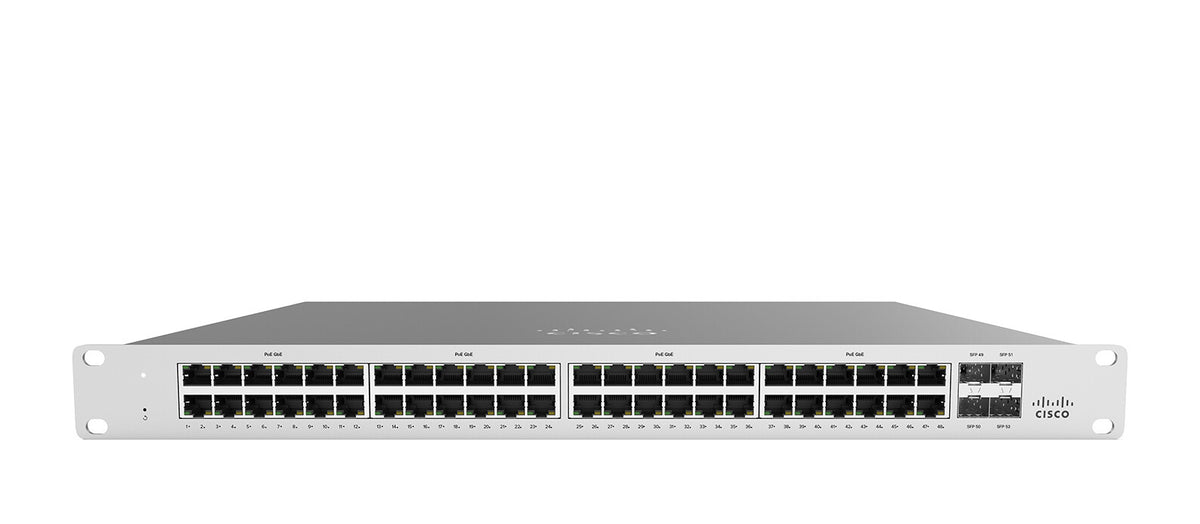

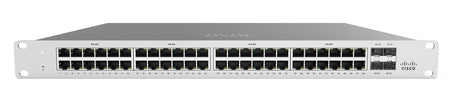

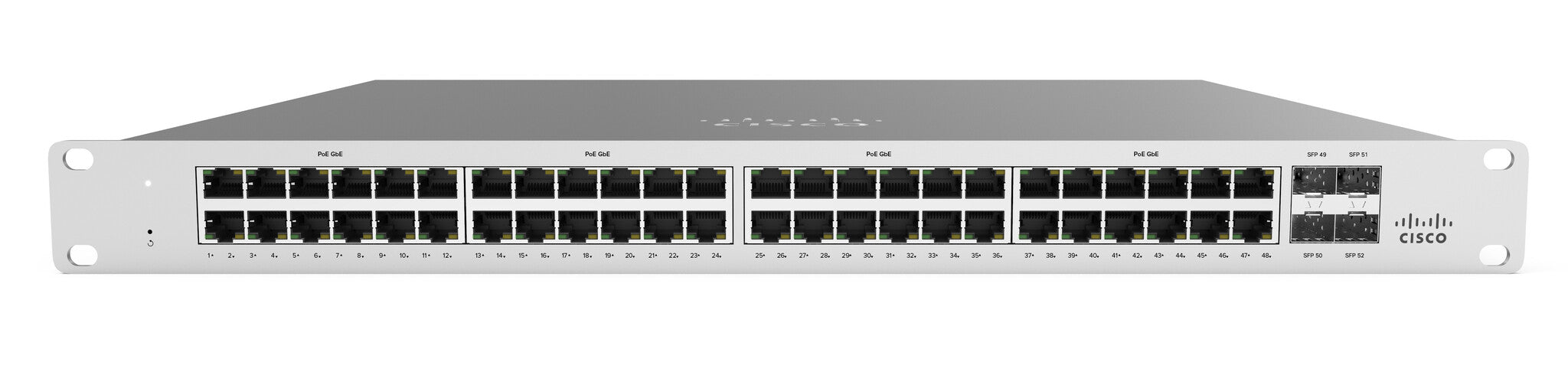

Cisco Meraki MS120 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS120 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
Hardware platform
- Reliable platform with 24/7 Meraki Support
- Clean lines and beautiful design
- Low noise, fanless model available
- Voice and video QoS
- Non-blocking switch fabric
Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates
Switching capabilities
- Layer 2
- DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs
| Management features |
|---|
| System event log |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| SFP module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| Number of VLANs |
4096 |
| VLAN support |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Data transmission |
|---|
| Jumbo frames |
9600 |
| Jumbo frames support |
Yes |
| Number of queues |
8 |
| Forwarding rate |
77.38 Mpps |
| Switching capacity |
104 Gbit/s |
| MAC address table |
32000 entries |
| Security |
|---|
| Root protection |
Yes |
| Security algorithms |
802.1x RADIUS, SNMP |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP relay |
| Protocols |
|---|
| Routing protocols |
CDP |
| Management protocols |
IPv4, IPv6, SNMP |
| Design |
|---|
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
660538 h |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
478 W |
| AC input frequency |
47/63 Hz |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
5.7 kg |
| Height |
44 mm |
| Depth |
340 mm |
| Width |
440 mm |
| Packaging data |
|---|
| Screws included |
Yes |
| General |
|---|
| Product family |
Meraki |
| Certificates |
|---|
| Certification |
CSA-US (US, Canada)FCC (USA)IC (Canada)CE (Europe)RCM (Australia/New Zealand)RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
