CLOUD-MANAGED ACCESS SWITCHES

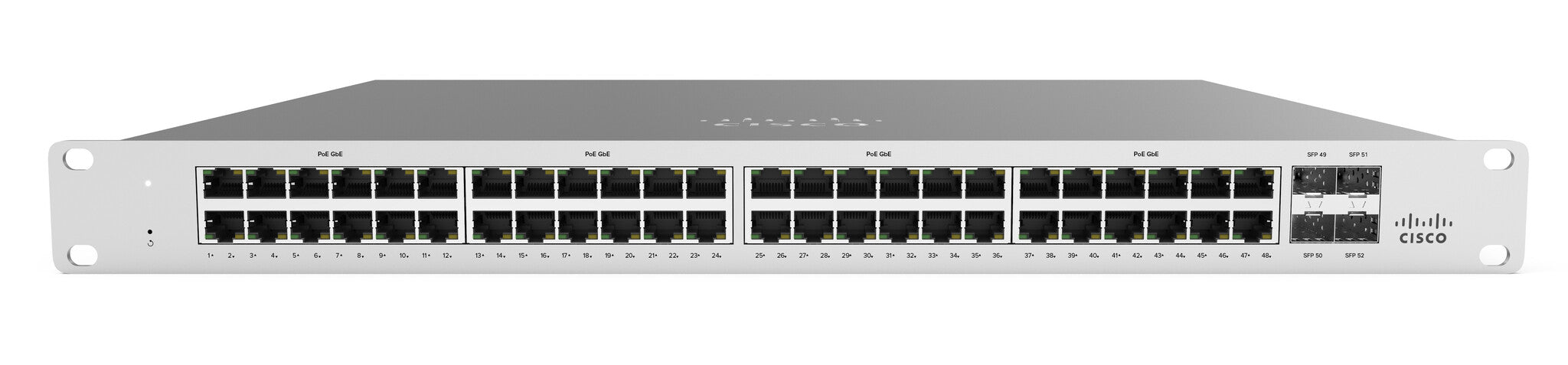

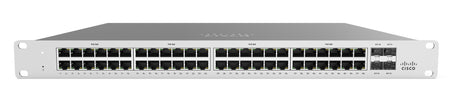

Cisco Meraki MS125 switches provide Layer 2 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks.
Cisco Meraki switches are built from the ground up for cloud management without compromising any of the power and
flexibility traditionally found in enterprise-class switches.
All Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line.
To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.
Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small
| Management features |
|---|
| System event log |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|---|
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Switching capacity |
176 Gbit/s |
| MAC address table |
32000 entries |
| Security |
|---|
| Security algorithms |
802.1x RADIUS, SNMP |
| BPDU filtering/protection |
Yes |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP server, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Routing protocols |
CDP |
| Switching protocols |
RSTP, STP, LLDP, CDP |
| Management protocols |
IPv4, IPv6, SNMP |
| Design |
|---|
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Mean time between failures (MTBF) |
1628120 h |
| Firmware upgradeable |
Yes |
| Power |
|---|
| Power consumption (max) |
440 W |
| Power consumption (typical) |
40 W |
| AC input frequency |
47/63 Hz |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
5.4 kg |
| Height |
44 mm |
| Depth |
340 mm |
| Width |
440 mm |
| General |
|---|
| Product family |
Meraki |
| Certificates |
|---|
| Certification |
CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
