SKU: MS130-24P-HW

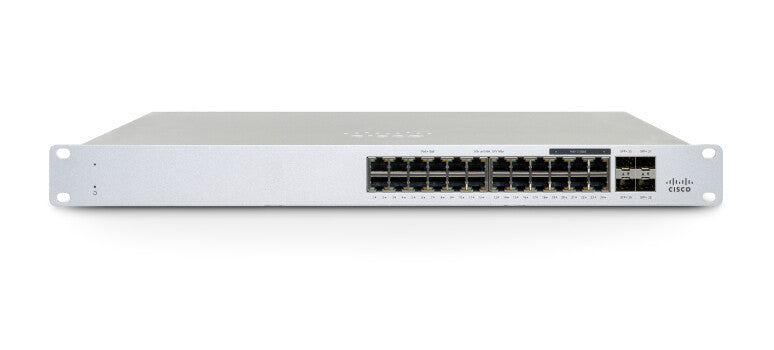

Cisco Meraki MS130-24P Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco
£1,200.50
iFrame
  • Managed via Cisco Meraki Dashboard
  • Remote Packet Capture Tools via Meraki Dashboard
  • Automatic Firmware upgrades
  • SNMP/Syslog Integration
  • IPv4/6 ACL support
  • 802.1Q VLAN tagging
  • DHCP Snooping
  • 802.1X Authentication
  • 10/100/1000 Mbps RJ45
  • 2.5GbE RJ45
  • 802.3bt PoE up to 30W per port

Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.

Management features
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
Number of management ports 1 pc(s)
SFP module slots quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 24
Network
Virtual LAN features Voice VLAN
Link aggregation Yes
Spanning tree protocol Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1Q, IEEE 802.3bt
Data transmission
Switching capacity 56 Gbit/s
Security
Authentication type IEEE 802.1x, RADIUS
Security algorithms SNMP
Authentication MAC-based authentication
IGMP snooping Yes
DHCP features DHCP snooping
Multicast features
Multicast features Multicast traffic suppression
Multicast support Yes
Protocols
IPv4 & IPv6 features IPv4/IPv6 access-control list (ACL)
Design
LED indicators Yes
Product colour White
Form factor 1U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 768152 h
Firmware upgradeable Yes
Power
Power consumption (max) 406 W
Input current 8 A
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 370 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Weight 4.04 kg
Height 34 mm
Depth 250 mm
Width 440 mm
General
Product family Meraki
