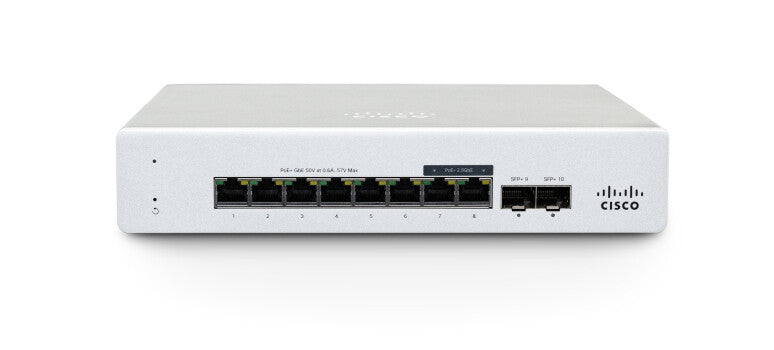

Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.
| Management features |
|---|
| System event log |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
| Data transmission |
|---|
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Security |
|---|
| Password protection |
Yes |
| Authentication type |
RADIUS |
| Security algorithms |
SNMP |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP snooping, DHCP relay, DHCP client |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Switching protocols |
LLDP, CDP, RSTP, STP |
| Design |
|---|
| Product colour |
Aluminium |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
|---|
| Firmware upgradeable |
Yes |
| Physical stacking (units) |
8 |
| Power |
|---|
| AC input frequency |
47/63 Hz |
| AC input voltage |
120 - 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Packaging data |
|---|
| Screws included |
Yes |
| General |
|---|
| Product family |
Meraki |
| Certificates |
|---|
| Certification |
CSA-US, FCC, IC, CE, RCM, RoHS |
