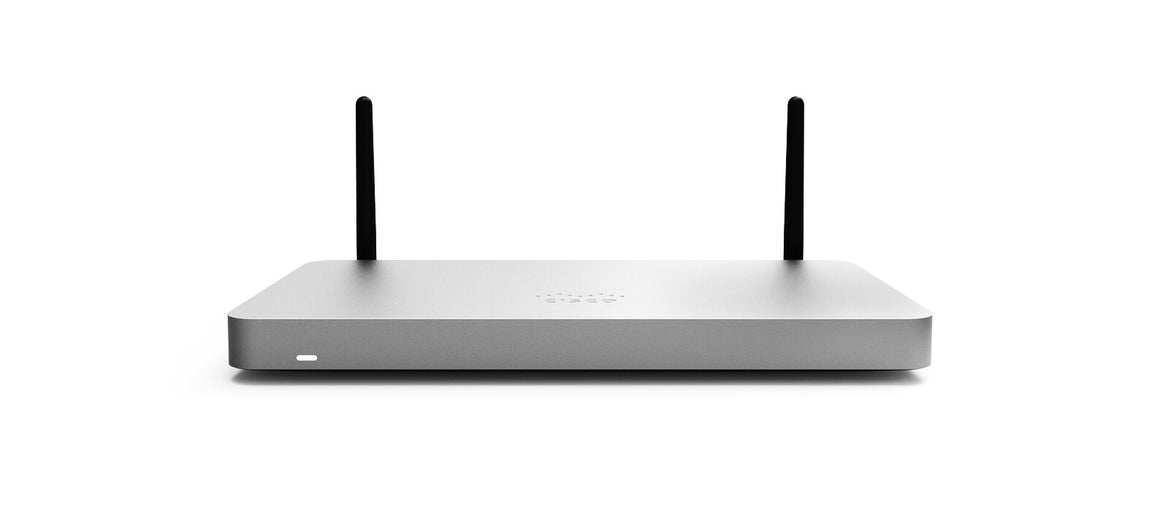

All in one Wireless, LTE, Security, and SD-WAN
Hardware
- Stateful firewall throughput: 450 Mbps
- Recommended maximum clients: 50
- Small form factor
- 2 PoE+ ports
Wireless
- Dual-band, dual-concurrent: 2.4 & 5 GHz
- 2-stream 802.11ac Wave 2 and 802.11n, up to 1.3Gbps
- Supports up to 4 SSIDs
Cloud-based centralized management
- Managed centrally over the web
- Classifies applications, users and devices
- Zero-touch, self-provisioning deployments
Networking and security
- Stateful firewall
- Auto VPN™ self-configuring site-to-site VPN
- Active Directory integration
- Identity-based policies
- Client VPN (IPsec)
- 3G / 4G failover via CAT 6 LTE or USB modem
Traffic shaping and application management
- Layer 7 application visibility and traffic shaping
- Application prioritization
Advanced security services
- Content filtering
- Google SafeSearch and YouTube for Schools
- Intrusion detection & prevention (IDS/IPS)
- Advanced Malware Protection (AMP)
- Cisco Threat Grid
| Data transmission |
|---|
| VPN throughput |
0.2 Gbit/s |
| Firewall throughput |
0.45 Gbit/s |
| Performance |
|---|
| Antennas quantity |
2 |
| Network |
|---|
| VPN tunnels quantity |
50 |
| Number of users |
50 user(s) |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Security |
|---|
| Security algorithms |
IPSEC |
| Management features |
|---|
| LED indicators |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
10 |
| USB 2.0 ports quantity |
1 |
| Connectivity technology |
Wired & Wireless |
| Design |
|---|
| Form factor |
Desktop |
| Power |
|---|
| Power supply |
100 W |
| Power consumption (typical) |
19 W |
| Power consumption (max) |
89 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
1.18 kg |
| Dimensions (WxDxH) |
284 x 178 x 27 mm |
| General |
|---|
| Product family |
Meraki |
| Other features |
|---|
| Firewall throughput |
450 Mbit/s |
| VPN throughput |
200 Mbit/s |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
